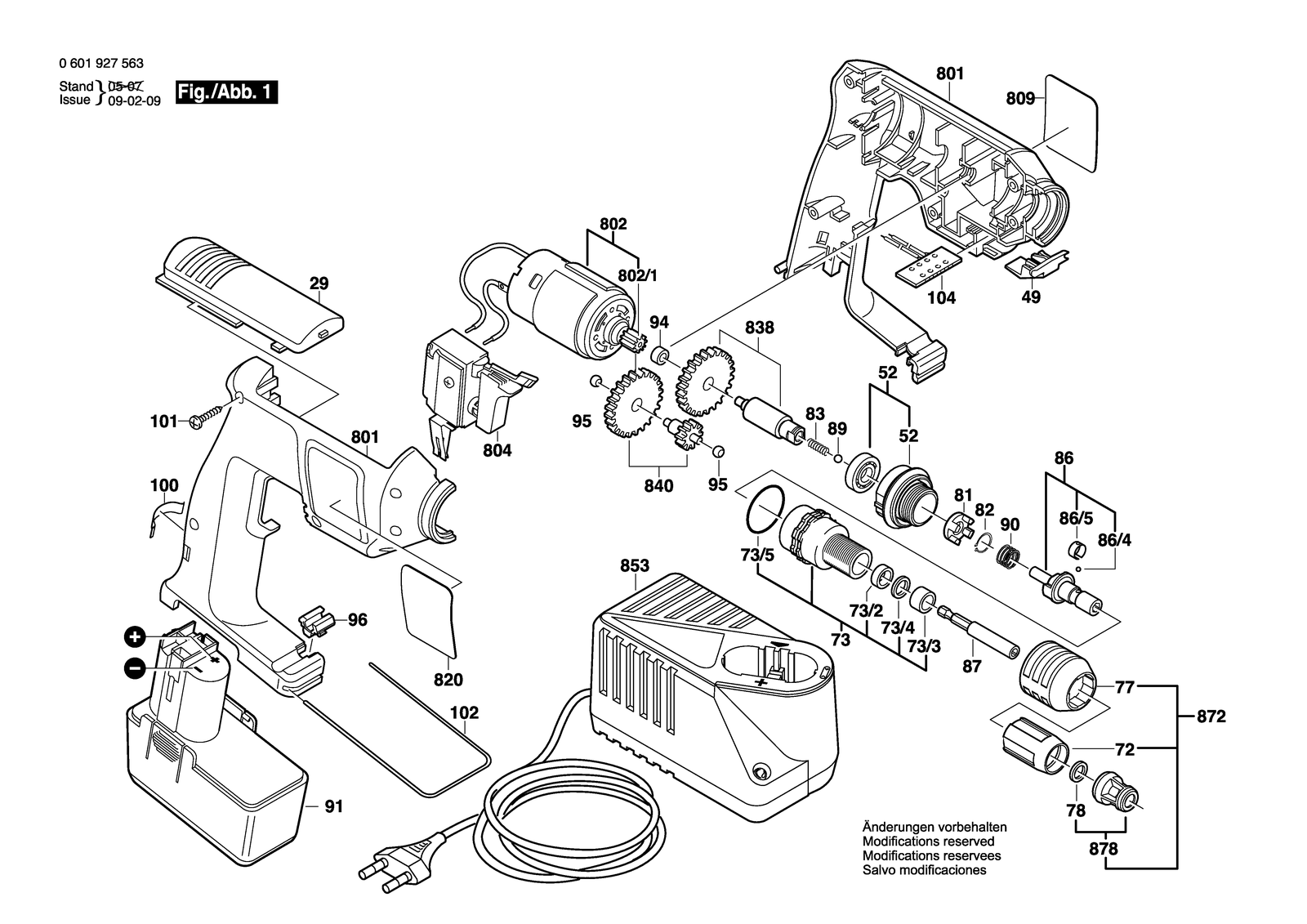

Bosch BACP 12V cordless screw driver: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACP 12V: 39 positions on 1 sheet
Bosch BACP 12V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2601322016 | Clamp Spring |
| 101 | 2603490022 | Screw 4X16 |
| 102 | 2601329041 | Retaining Bracket |
| 104 | 2608018004 | Contact retainer |
| 29 | 2605510120 | Insert Piece Black |
| 49 | 2605510117 | Insert Piece Black |
| 52 | 2600499038 | Guide Sleeve |
| 72 | 3600360505 | Spacer Sleeve Black |
| 73 | 2607001241 | Clutch Housing |
| 73/2 | 3600301508 | Bushing |
| 73/3 | 3600301510 | Bushing |
| 73/4 | 3600290503 | Seal Ring |
| 73/5 | 2600210043 | O-Ring |
| 77 | 3600390502 | Locking Ring Black |
| 78 | 3600290502 | Seal Ring |
| 801 | 2605105959 | Housing Section Blue |
| 802 | 2607022938 | DC motor 12V |
| 802/1 | 2606316142 | Pinion Z=14 |
| 804 | 2607200393 | On-Off Switch |
| 809 | 2601115071 | Manufacturer's nameplate |
| 81 | 3606441500 | Drive Clutch |
| 82 | 3600200516 | Retaining ring |
| 820 | 2601115072 | Nameplate |
| 83 | 3604613507 | Spring |
| 838 | 2606309929 | Jack Shaft |
| 840 | 2606308922 | Toothed Shaft |
| 853 | 2607225021 | Fast Charger EU 230/7,2-24V,1H |
| 86 | 2606445012 | Clutch Shaft |
| 86/4 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 86/5 | 3600034504 | Ball Support |
| 87 | 3603008500 | Toolholder 1/4" |
| 872 | 3600552509 | Depth-Gauge |
| 878 | 2610906321 | Depth-Gauge |
| 89 | 1903230011 | Ball DIN 5401-6 G28 |
| 90 | 3604613506 | Spring |
| 91 | 2607335787 | Slide-In Accu Package 12V, 2,0AH, Nicd |
| 94 | 2600301011 | Sintered-Metal Bushing |
| 95 | 2600302002 | Sintered-Metal Bushing |
| 96 | 2608040131 | Support |
