Bosch BACJS-24V

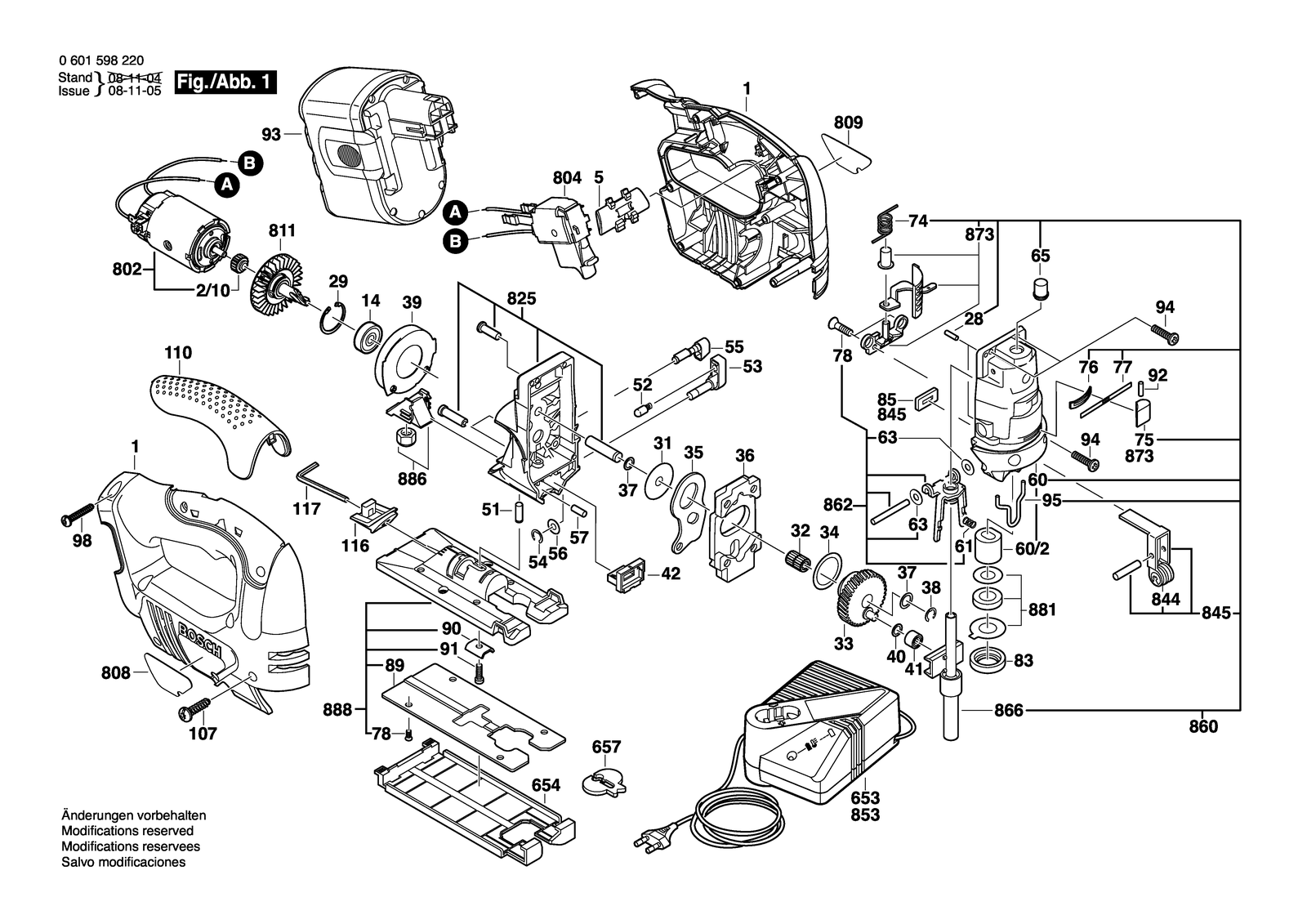

Bosch BACJS-24V cordless jigsaw: exploded parts diagram, 1 sheet, 281 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACJS-24V: 281 positions on 1 sheet
Bosch BACJS-24V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105019 | Housing Section |
| 1 | 2605105068 | Housing Section |
| 1 | 2605105067 | Housing Section Marine Blue |
| 1 | 2605105018 | Housing Section |
| 107 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 107 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 107 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 107 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 110 | 2608040204 | Handle Cover |
| 110 | 2608040204 | Handle Cover |
| 110 | 2608040204 | Handle Cover |
| 110 | 2608040204 | Handle Cover |
| 116 | 2608000313 | Key Holder |
| 116 | 2608000313 | Key Holder |
| 116 | 2608000313 | Key Holder |
| 116 | 2608000313 | Key Holder |
| 117 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 117 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 117 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 117 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 2/10 | 2606490088 | Clutch Element |
| 2/10 | 2606490088 | Clutch Element |
| 2/10 | 2606490088 | Clutch Element |
| 2/10 | 2606490088 | Clutch Element |
| 28 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 28 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 28 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 28 | 1903201042 | Needle Roller DIN 5402-A3X11,8-G2 |
| 29 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 29 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 29 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 29 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 31 | 2600101048 | Shim 0,5 MM |
| 31 | 2600101048 | Shim 0,5 MM |
| 31 | 2600101048 | Shim 0,5 MM |
| 31 | 2600101048 | Shim 0,5 MM |
| 32 | 2600913040 | Needle-Roller Assembly |
| 32 | 2600913040 | Needle-Roller Assembly |
| 32 | 2600913040 | Needle-Roller Assembly |
| 32 | 2600913040 | Needle-Roller Assembly |
| 33 | 2606320088 | Eccentric Cog Wheel |
| 33 | 2606320088 | Eccentric Cog Wheel |
| 33 | 2606320088 | Eccentric Cog Wheel |
| 33 | 2606320088 | Eccentric Cog Wheel |
| 34 | 2600102614 | Shim 0,5 MM |
| 34 | 2600102614 | Shim 0,5 MM |
| 34 | 2600102614 | Shim 0,5 MM |
| 34 | 2600102614 | Shim 0,5 MM |
| 35 | 2601923010 | Fork Lever |
| 35 | 2601923010 | Fork Lever |
| 35 | 2601923010 | Fork Lever |
| 35 | 2601923010 | Fork Lever |
| 36 | 2601098032 | Counterweight |
| 36 | 2601098032 | Counterweight |
| 36 | 2601098032 | Counterweight |
| 36 | 2601098032 | Counterweight |
| 37 | 2600101047 | Shim 0,3 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 39 | 2600290051 | Air-Deflector Ring |
| 39 | 2600290051 | Air-Deflector Ring |
| 39 | 2600290051 | Air-Deflector Ring |
| 39 | 2600290051 | Air-Deflector Ring |
| 40 | 2600200038 | Intermediate Ring |
| 40 | 2600200038 | Intermediate Ring |
| 40 | 2600200038 | Intermediate Ring |
| 40 | 2600200038 | Intermediate Ring |
| 41 | 2600917900 | Needle bearing |
| 41 | 2600917900 | Needle bearing |
| 41 | 2600917900 | Needle bearing |
| 41 | 2600917900 | Needle bearing |
| 42 | 2602305050 | Air Eliminator |
| 42 | 2602305050 | Air Eliminator |
| 42 | 2602305050 | Air Eliminator |
| 42 | 2602305050 | Air Eliminator |
| 5 | 2601099120 | Locking Lever |
| 5 | 2601099143 | Locking Lever |
| 5 | 2601099142 | Locking Lever Light Grey |
| 5 | 2601099120 | Locking Lever |
| 51 | 2603105053 | Bearing bolt |
| 51 | 2603105053 | Bearing bolt |
| 51 | 2603105053 | Bearing bolt |
| 51 | 2603105053 | Bearing bolt |
| 52 | 2600590006 | Ratchet Cap |
| 52 | 2600590006 | Ratchet Cap |
| 52 | 2600590006 | Ratchet Cap |
| 52 | 2600590006 | Ratchet Cap |
| 53 | 2602026063 | Rotary Knob Black |
| 53 | 2602026063 | Rotary Knob Black |
| 53 | 2602026125 | Rotary Knob Light Grey |
| 53 | 2602026063 | Rotary Knob Black |
| 54 | 2916080908 | Locking washer 5 DIN 6799 |
| 54 | 2916080908 | Locking washer 5 DIN 6799 |
| 54 | 2916080908 | Locking washer 5 DIN 6799 |
| 54 | 2916080908 | Locking washer 5 DIN 6799 |
| 55 | 2602026065 | Rotary Knob Black |
| 55 | 2602026065 | Rotary Knob Black |
| 55 | 2602026127 | Rotary Knob Light Grey |
| 55 | 2602026065 | Rotary Knob Black |
| 56 | 2600100607 | Shim 0,3 MM |
| 56 | 2600100607 | Shim 0,3 MM |
| 56 | 2600100607 | Shim 0,3 MM |
| 56 | 2600100607 | Shim 0,3 MM |
| 57 | 2603100069 | Straight Pin 17,35+0,1 MM |
| 57 | 2603100069 | Straight Pin 17,35+0,1 MM |
| 57 | 2603100069 | Straight Pin 17,35+0,1 MM |
| 57 | 2603100069 | Straight Pin 17,35+0,1 MM |
| 60 | 2605808081 | Gear Cover |
| 60 | 2605808081 | Gear Cover |
| 60 | 2605808081 | Gear Cover |
| 60 | 2605808081 | Gear Cover |
| 60/2 | 2600301037 | Bushing |
| 60/2 | 2600301037 | Bushing |
| 60/2 | 2600301037 | Bushing |
| 60/2 | 2600301037 | Bushing |
| 61 | 2604610042 | Compression Spring |
| 61 | 2604610042 | Compression Spring |
| 61 | 2604610042 | Compression Spring |
| 61 | 2604610042 | Compression Spring |
| 63 | 2600101095 | Shim |
| 63 | 2600101095 | Shim |
| 63 | 2600101095 | Shim |
| 63 | 2600101095 | Shim |
| 65 | 2601015064 | Seal |
| 65 | 2601015064 | Seal |
| 65 | 2601015064 | Seal |
| 65 | 2601015064 | Seal |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224429 | Fast Charger AUS 240/7,2-24V, 1H |
| 653 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 653 | 2607224983 | Fast Charger BR 220/7,2-24V, 1H |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 653 | 2607225031 | Fast Charger AUS 240/7,2-24V, 30 Min. |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 654 | 2608000294 | Pad |
| 654 | 2608000294 | Pad |
| 654 | 2608000294 | Pad |
| 654 | 2608000184 | Pad |
| 657 | 2601016065 | Splintering Protector |
| 657 | 2601016065 | Splintering Protector |
| 657 | 2601016065 | Splintering Protector |
| 657 | 2601016065 | Splintering Protector |
| 74 | 2604651011 | Torsion Spring |
| 74 | 2604651011 | Torsion Spring |
| 74 | 2604651011 | Torsion Spring |
| 74 | 2604651011 | Torsion Spring |
| 75 | 2600591010 | Cap-Handle Black |
| 75 | 2600591010 | Cap-Handle Black |
| 75 | 2600591010 | Cap-Handle Black |
| 75 | 2600591010 | Cap-Handle Black |
| 76 | 2601015065 | Seal |
| 76 | 2601015065 | Seal |
| 76 | 2601015065 | Seal |
| 76 | 2601015065 | Seal |
| 77 | 2601016079 | Cover Plate |
| 77 | 2601016079 | Cover Plate |
| 77 | 2601016079 | Cover Plate |
| 77 | 2601016079 | Cover Plate |
| 78 | 2603421014 | Thread-forming tap. Screw |
| 78 | 2603421014 | Thread-forming tap. Screw |
| 78 | 2603421014 | Thread-forming tap. Screw |
| 78 | 2603421014 | Thread-forming tap. Screw |
| 802 | 2607022879 | DC motor 24V |
| 802 | 2607022879 | DC motor 24V |
| 802 | 2607022879 | DC motor 24V |
| 802 | 2607022880 | DC motor 18V |
| 804 | 2607200413 | On-Off Switch |
| 804 | 2607200413 | On-Off Switch |
| 804 | 2607200487 | On-Off Switch |
| 804 | 2607200413 | On-Off Switch |
| 808 | 2601116132 | Nameplate |
| 808 | 2601116159 | Nameplate |
| 808 | 2601116160 | Nameplate |
| 808 | 2601116740 | Manufacturer's nameplate |
| 808 | 2601116738 | Manufacturer's nameplate |
| 808 | 2601116968 | Nameplate |
| 809 | 2601116131 | Manufacturer's nameplate |
| 809 | 2601116741 | Nameplate |
| 809 | 2601116739 | Nameplate |
| 809 | 2601116967 | Manufacturer's nameplate |
| 811 | 2606445901 | Coupling Half |
| 811 | 2606445901 | Coupling Half |
| 811 | 2606445901 | Coupling Half |
| 811 | 2606445901 | Coupling Half |
| 825 | 2605806896 | Gear Housing |
| 825 | 2605806896 | Gear Housing |
| 825 | 2605806896 | Gear Housing |
| 825 | 2605806896 | Gear Housing |
| 83 | 2600202037 | Retaining snap ring |
| 83 | 2600202037 | Retaining snap ring |
| 83 | 2600202037 | Retaining snap ring |
| 83 | 2600202037 | Retaining snap ring |
| 844 | 2600326904 | Roller Set |
| 844 | 2600326904 | Roller Set |
| 844 | 2600326904 | Roller Set |
| 844 | 2600326904 | Roller Set |
| 845 | 2601321904 | Roller Lever |
| 845 | 2601321904 | Roller Lever |
| 845 | 2601321904 | Roller Lever |
| 845 | 2601321904 | Roller Lever |
| 85 | 2601015057 | Sealing Plate |
| 85 | 2601015057 | Sealing Plate |
| 85 | 2601015057 | Sealing Plate |
| 85 | 2601015057 | Sealing Plate |
| 853 | 2607225023 | Fast Charger EU 230/7,2-24V,1H |
| 853 | 2607225021 | Fast Charger EU 230/7,2-24V,1H |
| 860 | 2605808927 | Gear Cover |
| 860 | 2605808927 | Gear Cover |
| 860 | 2605808927 | Gear Cover |
| 860 | 2605808927 | Gear Cover |
| 862 | 2601322900 | Guide Bracket |
| 862 | 2601322900 | Guide Bracket |
| 862 | 2601322900 | Guide Bracket |
| 862 | 2601322900 | Guide Bracket |
| 866 | 2600780911 | Lifting Rod |
| 866 | 2600780911 | Lifting Rod |
| 866 | 2600780911 | Lifting Rod |
| 866 | 2600780911 | Lifting Rod |
| 873 | 2601990906 | Holding Plate |
| 873 | 2601990906 | Holding Plate |
| 873 | 2601990909 | Holding Plate |
| 873 | 2601990906 | Holding Plate |
| 881 | 2600290902 | Seal Kit |
| 881 | 2600290902 | Seal Kit |
| 881 | 2600290902 | Seal Kit |
| 881 | 2600290902 | Seal Kit |
| 886 | 2605500911 | Fan Cover |
| 886 | 2605500911 | Fan Cover |
| 886 | 2605500911 | Fan Cover |
| 886 | 2605500911 | Fan Cover |
| 888 | 2608000924 | Base Plate |
| 888 | 2608000924 | Base Plate |
| 888 | 2608000924 | Base Plate |
| 888 | 2608000920 | Base Plate |
| 89 | 2601098096 | Work Board |
| 89 | 2601098096 | Work Board |
| 89 | 2601098096 | Work Board |
| 89 | 2601098082 | Work Board |
| 90 | 2601030022 | Profile Beading |
| 90 | 2601030022 | Profile Beading |
| 90 | 2601030022 | Profile Beading |
| 90 | 2601030022 | Profile Beading |
| 91 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 91 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 91 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 91 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 92 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 92 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 92 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 92 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 93 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 93 | 2607335509 | Battery Pack 24V,3,0AH,NIMH |
| 93 | 2607335561 | Battery Pack 24V,2,6AH,NIMH |
| 93 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 93 | 2607335561 | Battery Pack 24V,2,6AH,NIMH |
| 93 | 2607335637 | Battery Pack 24V,2,0AH,NICD |
| 93 | 2607335687 | Slide-In Accu Package 18V, 2,6AH, Nimh, Hd |
| 94 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 94 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 94 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 94 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 95 | 2603101046 | Protecting Cover Black |
| 95 | 2603101046 | Protecting Cover Black |
| 95 | 2603101046 | Protecting Cover Black |
| 95 | 2603101046 | Protecting Cover Black |
| 98 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 98 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 98 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 98 | 2603490018 | Torx Oval-Head Screw 3X18 |
Selected parts0
