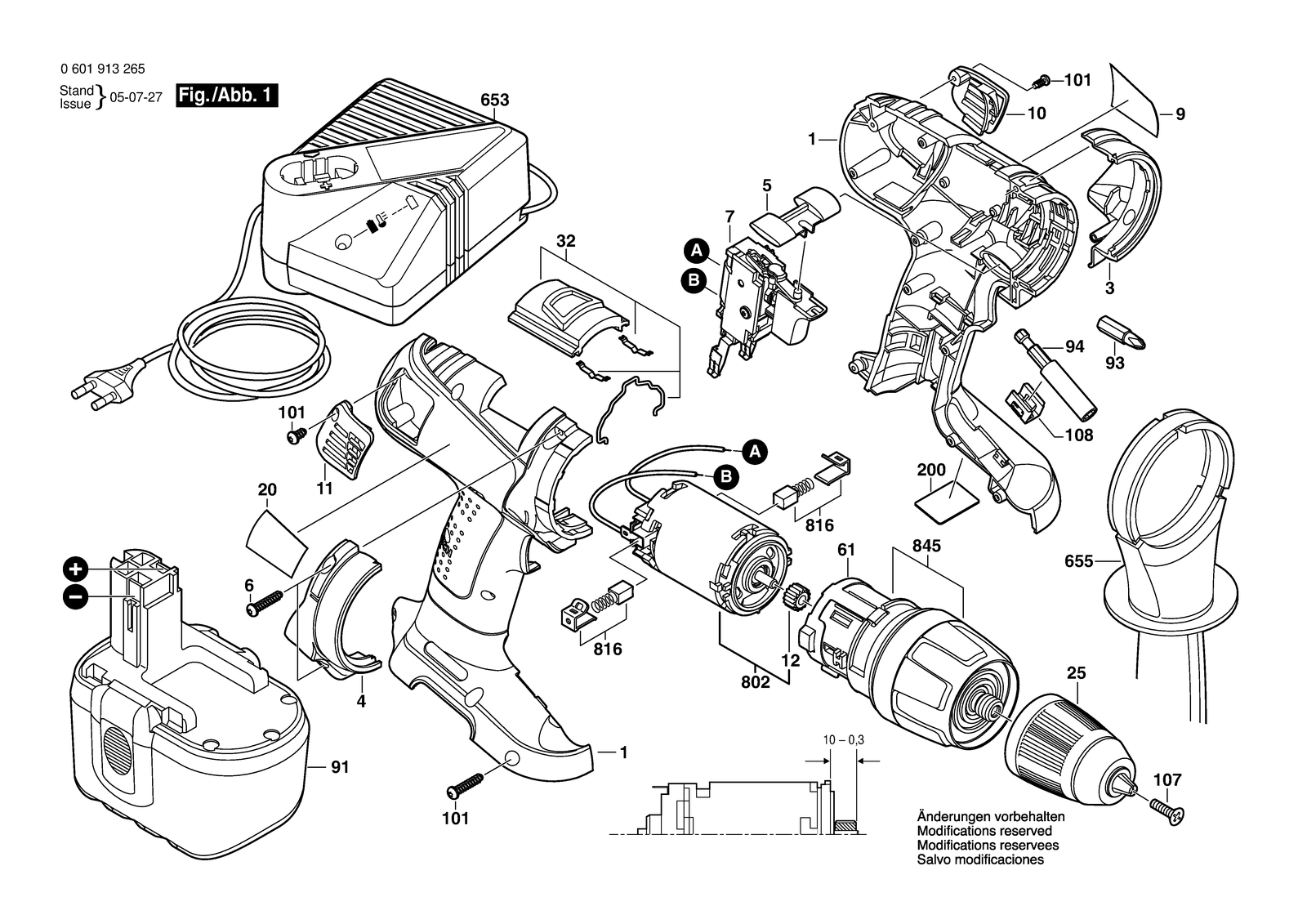

Bosch BACIDS 24V cordless impact drill: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACIDS 24V: 26 positions on 1 sheet
Bosch BACIDS 24V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105107 | Housing Section Blue/black |
| 10 | 2600508051 | Cover Black |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 108 | 2604690027 | Spring Element |
| 11 | 2600508052 | Cover Black |
| 12 | 2606316224 | Pinion |
| 20 | 2601115152 | Reference Plate |
| 200 | 2601115073 | Nameplate |
| 25 | 2608572202 | Keyless Chuck |
| 3 | 2605500168 | Protective Cap |
| 32 | 2601099159 | Adjusting Slide Gray |
| 4 | 2605500169 | Protective Cap |
| 5 | 2601099134 | Adjusting Slide Black |
| 6 | 2603410052 | Thread-forming tap. Screw M3X20 |
| 61 | 2608040190 | Support |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 655 | 2602025135 | Auxiliary Handle |
| 7 | 2607202009 | On-Off Switch |
| 802 | 2607022862 | DC motor 24V |
| 816 | 2607034904 | Carbon-Brush Set |
| 845 | 2606200932 | Planetary Gear Train |
| 9 | 2601115153 | Manufacturer's nameplate |
| 91 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 93 | 2607000366 | Screwdriver Bit |
| 94 | 2607001438 | Toolholder |
