Bosch BACHDD-36 V-LI

Bosch BACHDD-36 V-LI cordless impact drill: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACHDD-36 V-LI: 42 positions on 2 sheets

Bosch BACHDD-36 V-LI parts list (2 sheets)

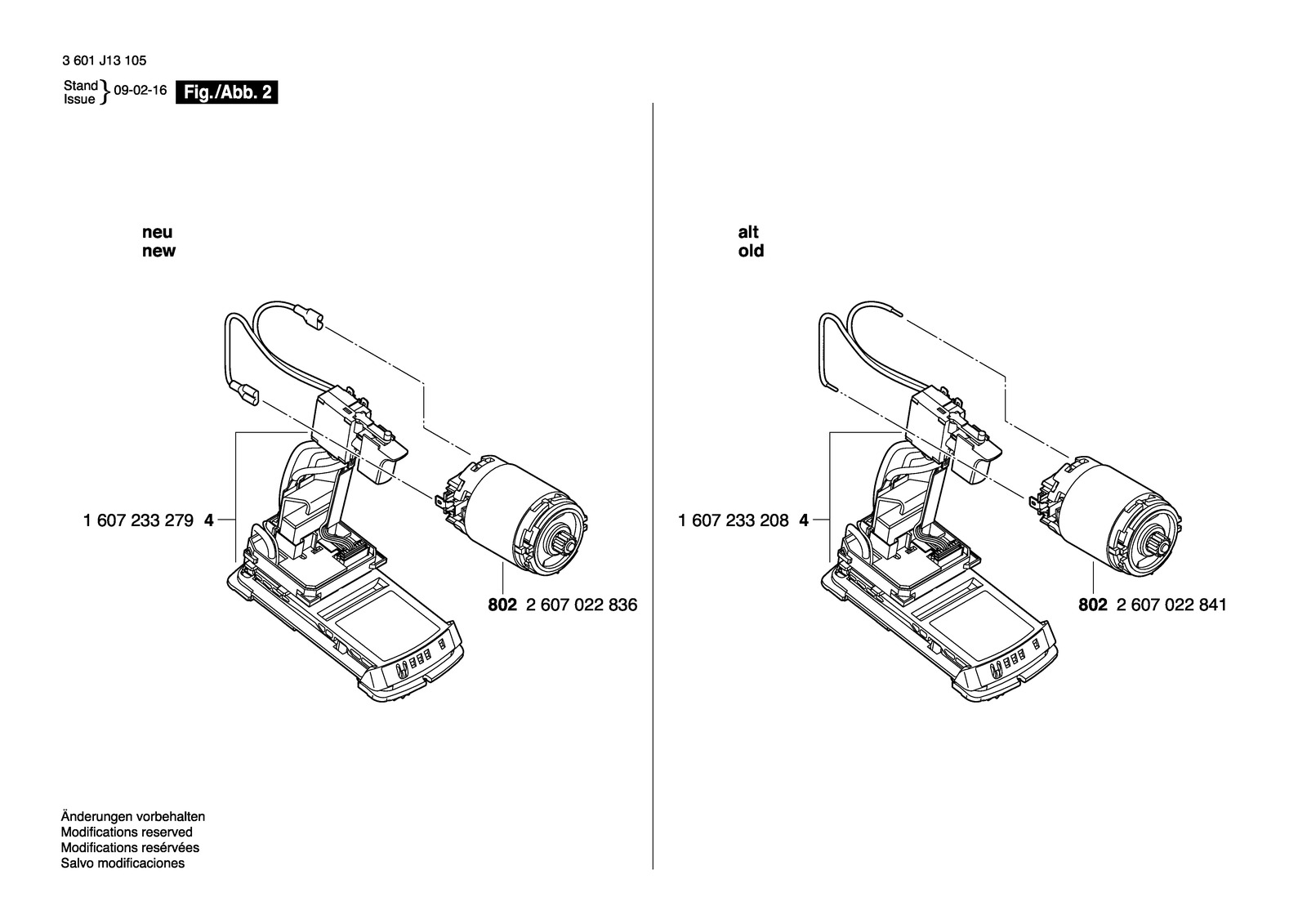

Bosch BACHDD-36 V-LI parts diagram, sheet 1Bosch BACHDD-36 V-LI parts diagram, sheet 2
No.Part numberPart name
12605105146Housing Section Blue/black
12605105147Housing Section Orange
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508056Cover
112600508056Cover
122600508057Cover
122600508057Cover
202601115972Nameplate
202601115974Nameplate
252608572202Keyless Chuck
252608572202Keyless Chuck
322601099221Adjusting Slide Gray
322601099220Adjusting Slide Black
41607233382Electronics Module
41607233383Electronics Module
52601099219Adjusting Slide Gray
52601099218Adjusting Slide Black
612608040190Support
612608040190Support
6552602025192Auxiliary Handle Black
6552602025192Auxiliary Handle Black
702605191132Push-Button Gray
702605191131Push-Button Black
712604610104Compression Spring
712604610104Compression Spring
8022607022829DC motor
8022607022828DC motor
8162607034904Carbon-Brush Set
8162607034904Carbon-Brush Set
8452606200936Planetary Gear Train
8452606200936Planetary Gear Train
8532607225313Fast Charger EU 230/18-36V, 1H
8532607226533Fast Charger EU 9 9096522 230/14,4-36V
8912607336297Battery Pack 36V, 1,3AH, Li, L
8912607337241Battery Pack 36V 4,0AH BTI 9 077 583
92601115971Manufacturer's nameplate
92601115973Manufacturer's nameplate
931609200147Screwdriver Blade 6 MM
931609200147Screwdriver Blade 6 MM
