Bosch BACDG BL 12V
Bosch BACDG BL 12V cordless disc sander: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

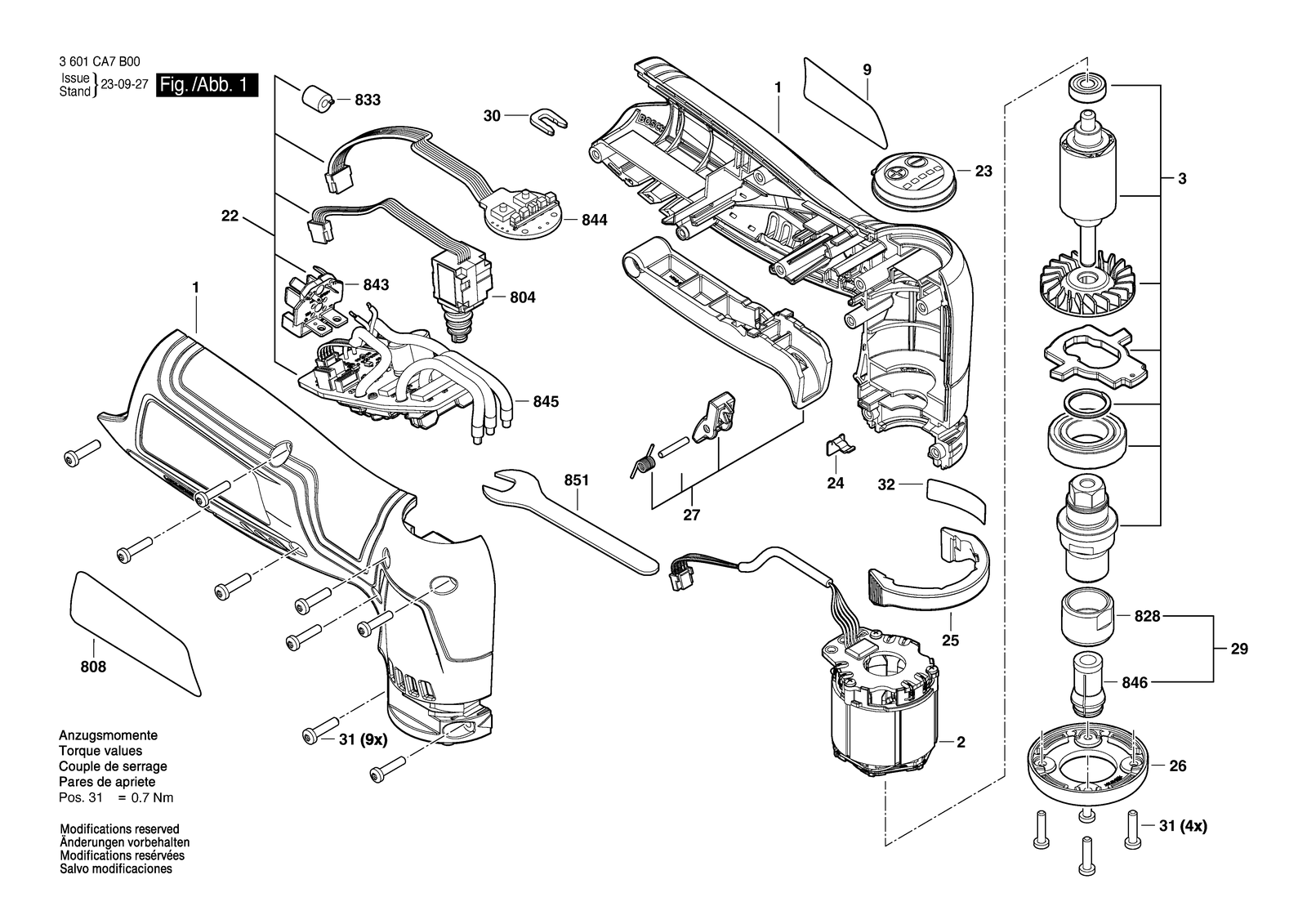

All parts of Bosch BACDG BL 12V: 23 positions on 1 sheet
Bosch BACDG BL 12V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC2117 | Housing |
| 2 | 1619PB9476 | Stator |
| 22 | 1619PB7327 | Electronic Module |
| 23 | 1619PB9667 | HMI Housing |
| 24 | 1619PB9668 | Wave spring |
| 25 | 1619PC2121 | Retaining Stirrup |
| 26 | 1619PB9670 | Terminal cover |
| 27 | 1619PC2118 | Switch Unit |
| 29 | 1619PB9663 | Collet Set |
| 3 | 1619PB9664 | Armature |
| 30 | 1619PB5588 | U-shaped clip |
| 31 | 1619PB5559 | Torx Oval-Head Screw |
| 32 | 1619PC2126 | Label |
| 804 | 1619PB9475 | Switch |
| 808 | 1619PC2133 | Nameplate |
| 828 | 1619PB9672 | Lock nut |
| 833 | 1619PC0679 | Ferrite |
| 843 | 1600A02DY0 | Contact retainer |
| 844 | 1619PB9677 | Operating column |
| 845 | 1619PB9673 | Electronic Module |
| 846 | 1619P10661 | Collet |
| 851 | 1619PC2131 | Wrench Attachment |
| 9 | 1619PC2125 | Manufacturer's nameplate |
