Bosch BACDCH 12V cordless drill driver: exploded parts diagram, 2 sheets, 36 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACDCH 12V: 36 positions on 2 sheets

Bosch BACDCH 12V parts list (2 sheets)

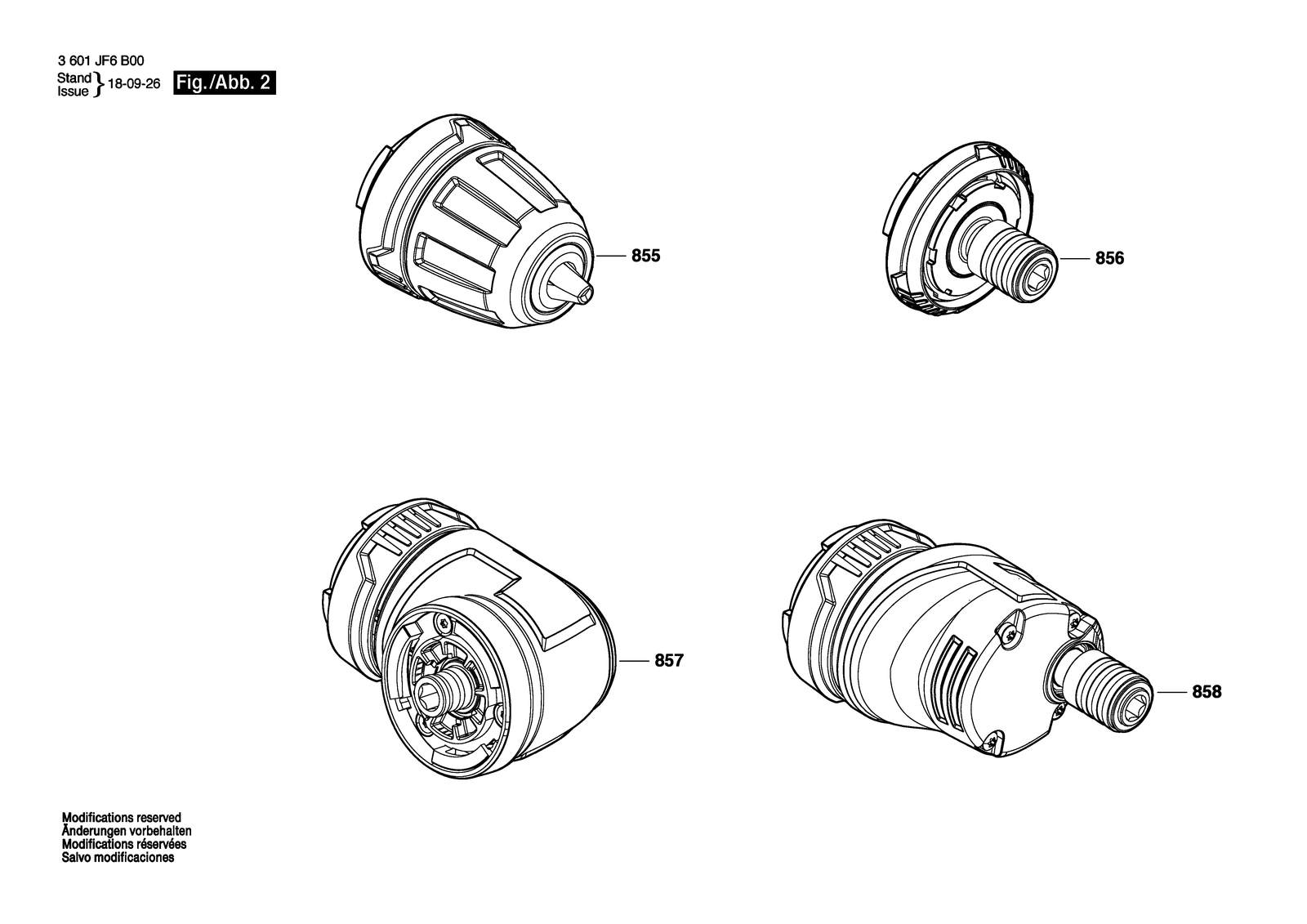

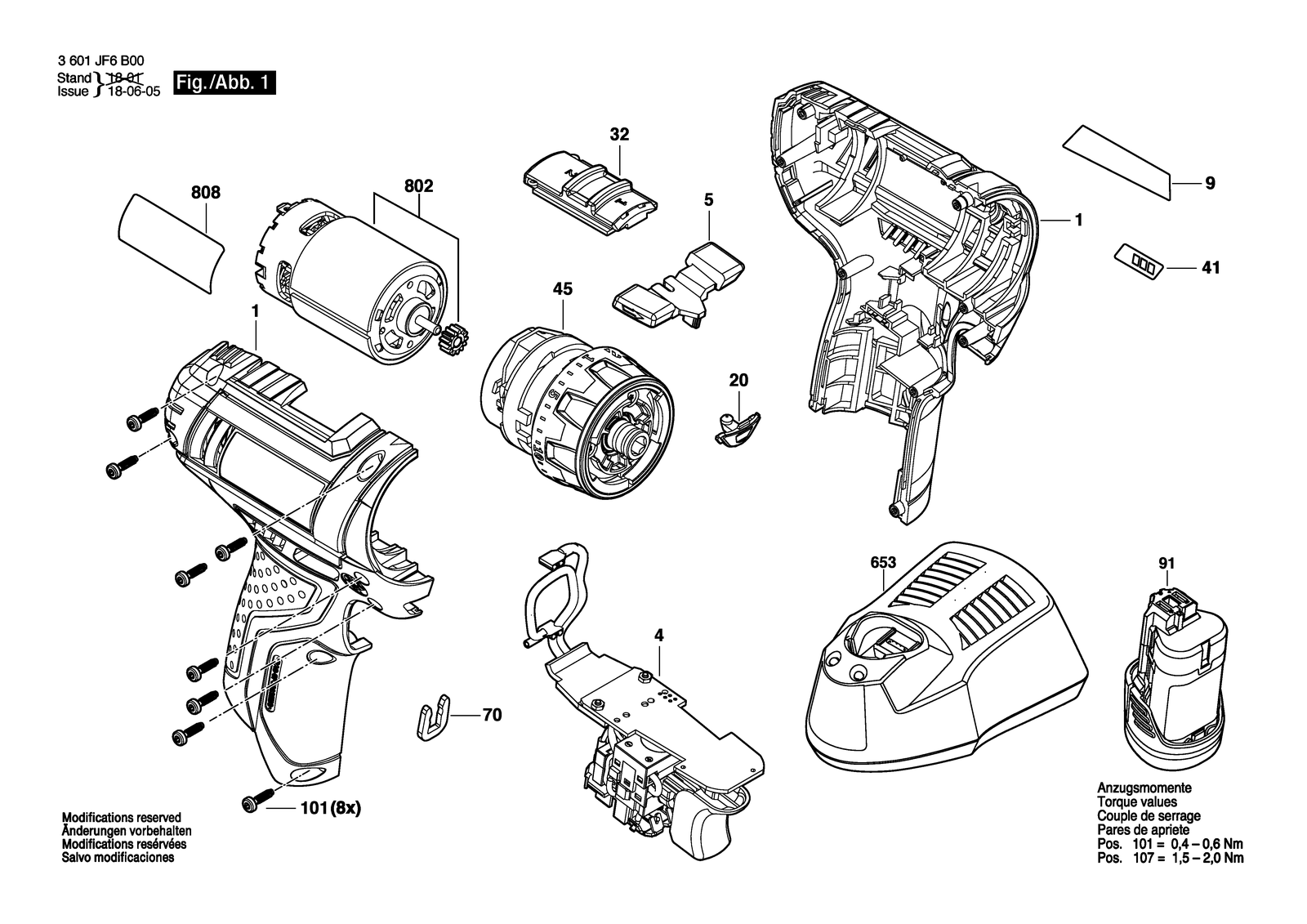

Bosch BACDCH 12V parts diagram, sheet 1Bosch BACDCH 12V parts diagram, sheet 2
No.Part numberPart name
12609100970Housing
12609100971Housing Orange
1012609110883Screw
1012609110883Screw
202609100826Lens
202609100826Lens
322609199352Switchover Unit
322609199353Switchover Unit
416072335FHElectronic Module
416072335FJElectronic Module
412609132948Sticker
412609132948Sticker
451600A009ANGear Box
451600A009ANGear Box
52609100974Changeover Lever
52609100975Changeover Lever
6532607226381Fast Charger BBCF 12V 370468 10,8-12V 4A
6532607226383Fast Charger 12 V 9 0947764 10,8-12V 4A
702609110537Clip
702609110537Clip
8022609199258DC motor 10,8V - 12V
8022609199258DC motor 10,8V - 12V
808160111A5RPNameplate
808160111A5RSNameplate
8551600A014MVChuck attachment
8551600A014MVChuck attachment
8561600A014MYBit holder
8561600A014MYBit holder
8571600A014MWRight-angle attachment
8571600A014MWRight-angle attachment
8581600A014MXEccentric attachment
8581600A014MXEccentric attachment
9160111C2J7Manufacturer's nameplate
92609132928Manufacturer's nameplate A-S2 10,8V
911607A350A6Battery Pack BBP 12 V 2,0 AH 343769
911607A350A4Battery Pack 12 V 2,0 AH 9 090230
