Bosch BACD-1 BL 12V
Bosch BACD-1 BL 12V cordless drill driver: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

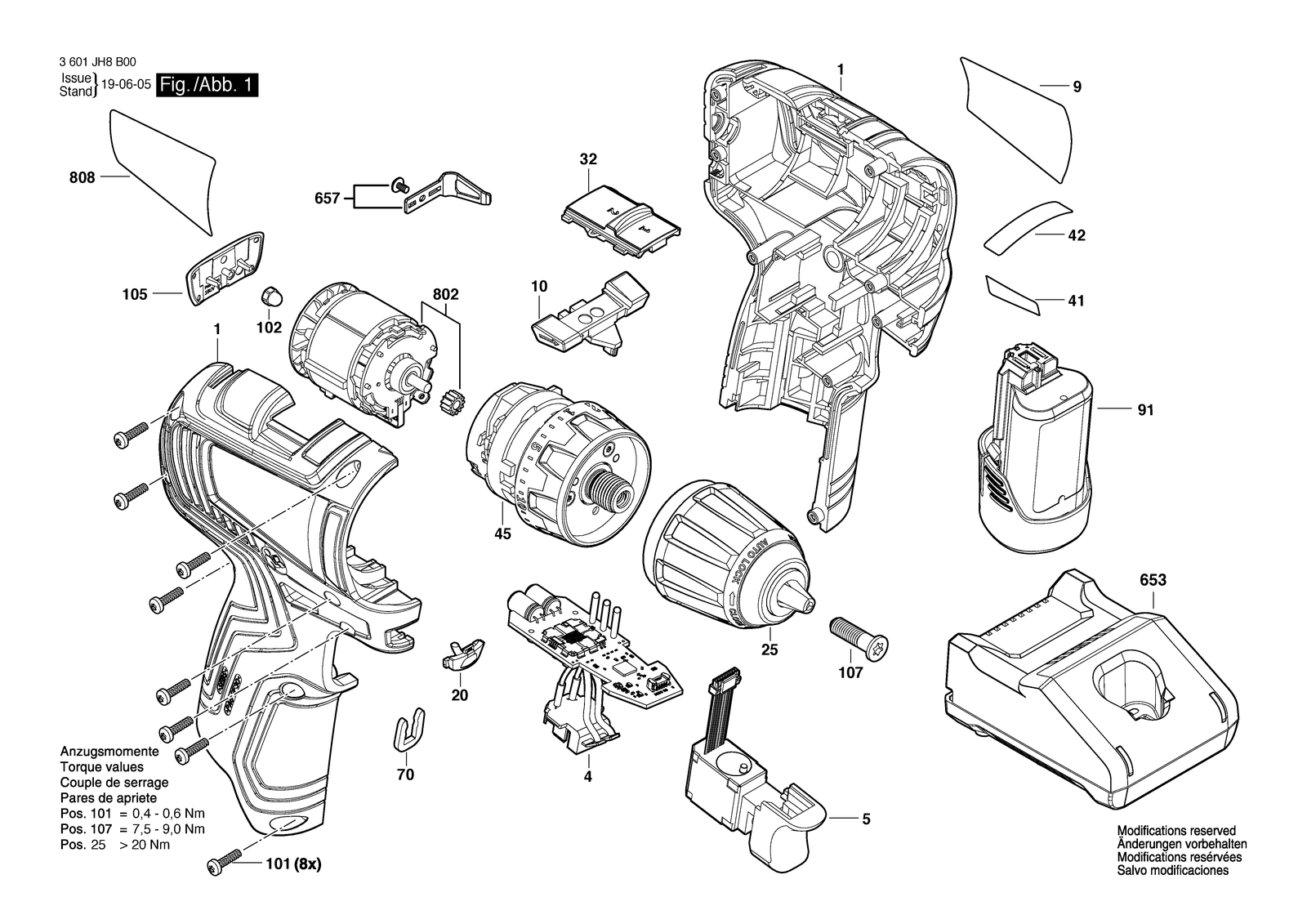

All parts of Bosch BACD-1 BL 12V: 42 positions on 1 sheet
Bosch BACD-1 BL 12V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065YJ | Housing |
| 1 | 16058065YK | Housing |
| 10 | 1600A01P3H | Changeover Lever |
| 10 | 1600A01P3J | Changeover Lever |
| 101 | 2609110883 | Screw |
| 101 | 2609110883 | Screw |
| 102 | 1600A016R4 | Cap Nut |
| 102 | 1600A016R4 | Cap Nut |
| 105 | 1600A01P8F | Color clip |
| 105 | 1600A01P8G | Color clip |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 20 | 1600A016R3 | Lens |
| 20 | 1600A016R3 | Lens |
| 25 | 2609112112 | Keyless Chuck |
| 25 | 2609112112 | Keyless Chuck |
| 32 | 1600A01P3F | Switchover Unit |
| 32 | 1600A01P3G | Switchover Unit |
| 4 | 16072335HJ | Electronic Module |
| 4 | 16072335HJ | Electronic Module |
| 41 | 160111C32K | Sticker |
| 41 | 160111C32K | Sticker |
| 42 | 160111C33U | Sticker |
| 42 | 160111C33V | Sticker |
| 45 | 1600A015WE | Gear Box |
| 45 | 1600A015WE | Gear Box |
| 5 | 2607202503 | Switch |
| 5 | 2607202504 | Switch |
| 653 | 2607226381 | Fast Charger BBCF 12V 370468 10,8-12V 4A |
| 653 | 2607226383 | Fast Charger 12 V 9 0947764 10,8-12V 4A |
| 657 | 1600A0247P | Clip |
| 657 | 1600A0247P | Clip |
| 70 | 2609110537 | Clip |
| 70 | 2609110537 | Clip |
| 802 | 1600A01M97 | Brushless DC motor |
| 802 | 1600A01M97 | Brushless DC motor |
| 808 | 160111A6U5 | Nameplate |
| 808 | 160111A6U7 | Nameplate |
| 9 | 160111C32L | Manufacturer's nameplate |
| 9 | 160111C32M | Manufacturer's nameplate |
| 91 | 1607A350A6 | Battery Pack BBP 12 V 2,0 AH 343769 |
| 91 | 1607A350A4 | Battery Pack 12 V 2,0 AH 9 090230 |
