Bosch BACCS 10,8 V-LI

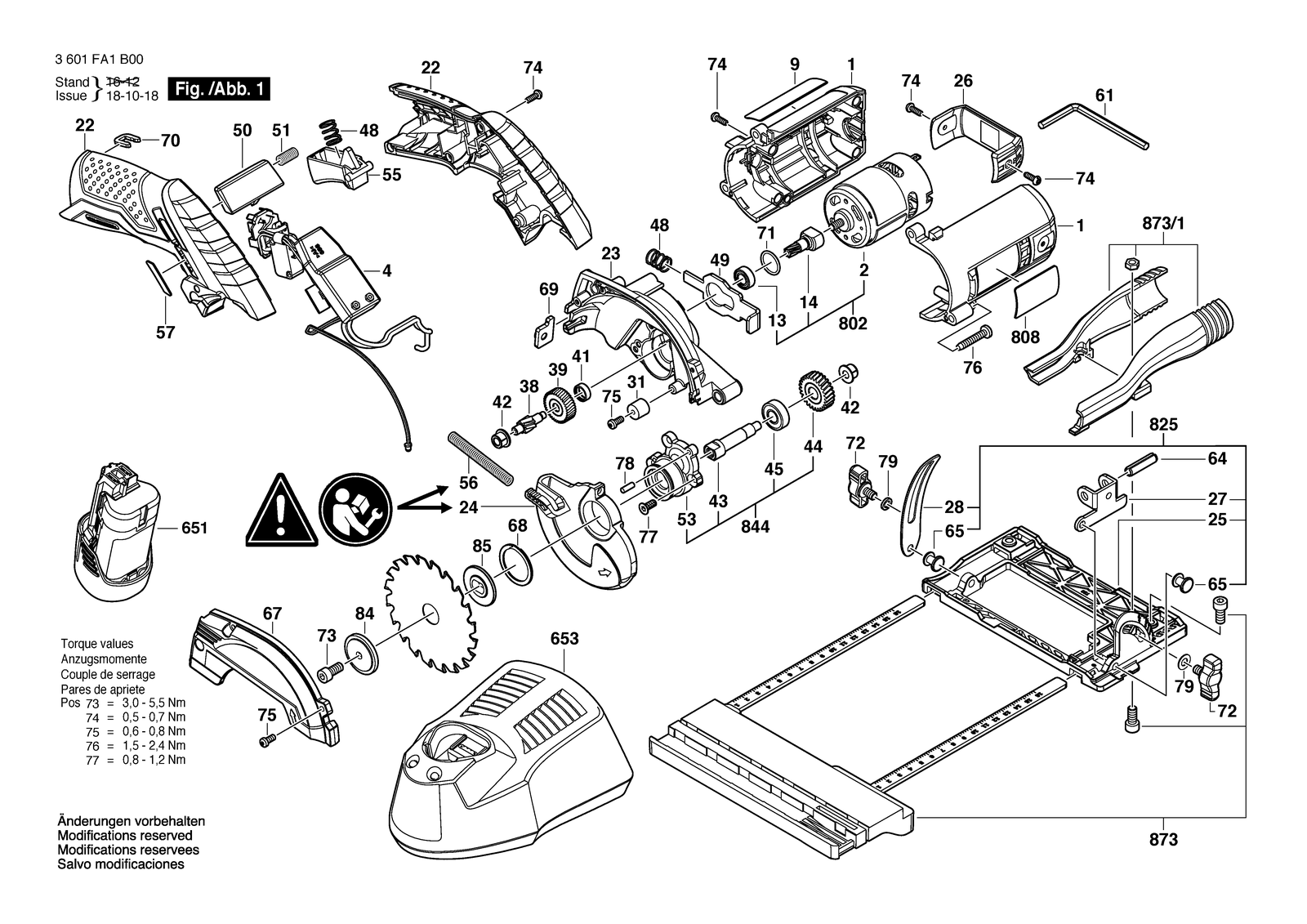

Bosch BACCS 10,8 V-LI cordless circular saw: exploded parts diagram, 1 sheet, 116 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACCS 10,8 V-LI: 116 positions on 1 sheet
Bosch BACCS 10,8 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P12511 | Motor Housing |
| 1 | 1619P12521 | Motor Housing |
| 13 | 1619P10733 | Groove ball bearing |
| 13 | 1619P10733 | Groove ball bearing |
| 14 | 1619P10731 | Gear |
| 14 | 1619P10731 | Gear |
| 2 | 160702264L | DC motor |
| 2 | 160702264L | DC motor |
| 22 | 1619P12517 | Handle |
| 22 | 1619P12527 | Handle |
| 23 | 1600A00XS4 | Upper guard |
| 23 | 1600A00XS4 | Upper guard |
| 24 | 1619P10722 | Lower guard |
| 24 | 1619P10722 | Lower guard |
| 25 | 1600A00XR3 | Base Plate |
| 25 | 1600A00XR3 | Base Plate |
| 26 | 1619P12356 | End cap |
| 26 | 1619P12356 | End cap |
| 27 | 1619P10725 | Hinge Bracket |
| 27 | 1619P10725 | Hinge Bracket |
| 28 | 1619P10726 | Support bracket |
| 28 | 1619P10726 | Support bracket |
| 31 | 1619P10728 | Bumper |
| 31 | 1619P10728 | Bumper |
| 38 | 1619P10735 | Gear Shaft |
| 38 | 1619P10735 | Gear Shaft |
| 39 | 1619P10732 | Gear |
| 39 | 1619P10732 | Gear |
| 4 | 1619P10653 | Electronics Module |
| 4 | 1619P10653 | Electronics Module |
| 41 | 1619P10734 | Groove ball bearing |
| 41 | 1619P10734 | Groove ball bearing |
| 42 | 1619P10729 | Bushing |
| 42 | 1619P10729 | Bushing |
| 43 | 1619P10730 | Shaft |
| 43 | 1619P10730 | Shaft |
| 44 | 1619P10736 | Gear |
| 44 | 1619P10736 | Gear |
| 45 | 1619P06024 | Ball Bearing |
| 45 | 1619P06024 | Ball Bearing |
| 48 | 1619P10738 | Compression Spring |
| 48 | 1619P10738 | Compression Spring |
| 49 | 1619P10727 | Guide Bracket |
| 49 | 1619P10727 | Guide Bracket |
| 50 | 1619P12518 | Locking Slide |
| 50 | 1619P12528 | Locking Slide |
| 51 | 2610935251 | Compression Spring |
| 51 | 2610935251 | Compression Spring |
| 53 | 1619P10720 | Bearing Flange |
| 53 | 1619P10720 | Bearing Flange |
| 55 | 1619P12519 | Trigger |
| 55 | 1619P12529 | Trigger |
| 56 | 1619P10742 | Extension Spring |
| 56 | 1619P10742 | Extension Spring |
| 57 | 1619P12520 | Sticker |
| 57 | 1619P12520 | Sticker |
| 61 | 1619P11420 | Hexagon Socket Wrench |
| 61 | 1619P11420 | Hexagon Socket Wrench |
| 64 | 2917760151 | Slotted Spring Pin |
| 64 | 2917760151 | Slotted Spring Pin |
| 65 | 1619P06968 | Rivet |
| 65 | 1619P06968 | Rivet |
| 651 | 1607A350A6 | Battery Pack BBP 12 V 2,0 AH 343769 |
| 651 | 1607A350A7 | Battery Pack BBP 12 V 4,0 AH 343769 |
| 651 | 1607A350A4 | Battery Pack 12 V 2,0 AH 9 090230 |
| 651 | 1607A350A5 | Battery Pack 12 V 4,0 AH 9 090231 |
| 653 | 2607226381 | Fast Charger BBCF 12V 370468 10,8-12V 4A |
| 653 | 2607225297 | Fast Charger Bti EU 230/10,8 V, 30 Min. |
| 653 | 2607226383 | Fast Charger 12 V 9 0947764 10,8-12V 4A |
| 67 | 1619P12371 | Protection cover |
| 67 | 1619P12371 | Protection cover |
| 68 | 1619P10737 | Retaining ring |
| 68 | 1619P10737 | Retaining ring |
| 69 | 1619P10828 | Nut |
| 69 | 1619P10828 | Nut |
| 70 | 1619P08646 | Clip |
| 70 | 1619P08646 | Clip |
| 71 | 3600210014 | O-Ring 14,0X1,3 MM |
| 71 | 3600210014 | O-Ring 14,0X1,3 MM |
| 72 | 1619P01618 | Wing Screw Black |
| 72 | 1619P01618 | Wing Screw Black |
| 73 | 1619P11432 | Hex Socket Head Cap Screw |
| 73 | 1619P11432 | Hex Socket Head Cap Screw |
| 74 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 74 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 75 | 1619P11431 | Thread-forming tap. Screw |
| 75 | 1619P11431 | Thread-forming tap. Screw |
| 76 | 1619P07546 | Thread-forming tap. Screw |
| 76 | 1619P07546 | Thread-forming tap. Screw |
| 77 | 1613435023 | Thread-forming tap. Screw |
| 77 | 1613435023 | Thread-forming tap. Screw |
| 78 | 2603201020 | Bearing bolt |
| 78 | 2603201020 | Bearing bolt |
| 79 | 1619P11626 | Plain Washer |
| 79 | 1619P11626 | Plain Washer |
| 802 | 1619P11483 | Motor assembly |
| 802 | 1619P11483 | Motor assembly |
| 808 | 1619P12513 | Nameplate |
| 808 | 1619P14795 | Nameplate |
| 808 | 1619P12523 | Nameplate |
| 808 | 1619P14797 | Nameplate |
| 825 | 1619P11485 | Baseplate complete |
| 825 | 1619P11485 | Baseplate complete |
| 84 | 1619P13104 | Washer |
| 84 | 1619P13104 | Washer |
| 844 | 1619P11484 | Spindle Assembly |
| 844 | 1619P11484 | Spindle Assembly |
| 85 | 1619P10745 | Retaining Washer |
| 85 | 1619P10745 | Retaining Washer |
| 873 | 1619P12358 | Parallel-Guide |
| 873 | 1619P12358 | Parallel-Guide |
| 873/1 | 1619P11537 | Suction Nozzle |
| 873/1 | 1619P11537 | Suction Nozzle |
| 9 | 1619P12514 | Manufacturer's nameplate Baccs 10,8V LI |
| 9 | 1619P14789 | Manufacturer's nameplate Baccs 12 V |
| 9 | 1619P12524 | Manufacturer's nameplate Bti |
