Bosch BACAG BL 10,8 V

Bosch BACAG BL 10,8 V cordless angle grinder: exploded parts diagram, 2 sheets, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACAG BL 10,8 V: 50 positions on 2 sheets

Bosch BACAG BL 10,8 V parts list (2 sheets)

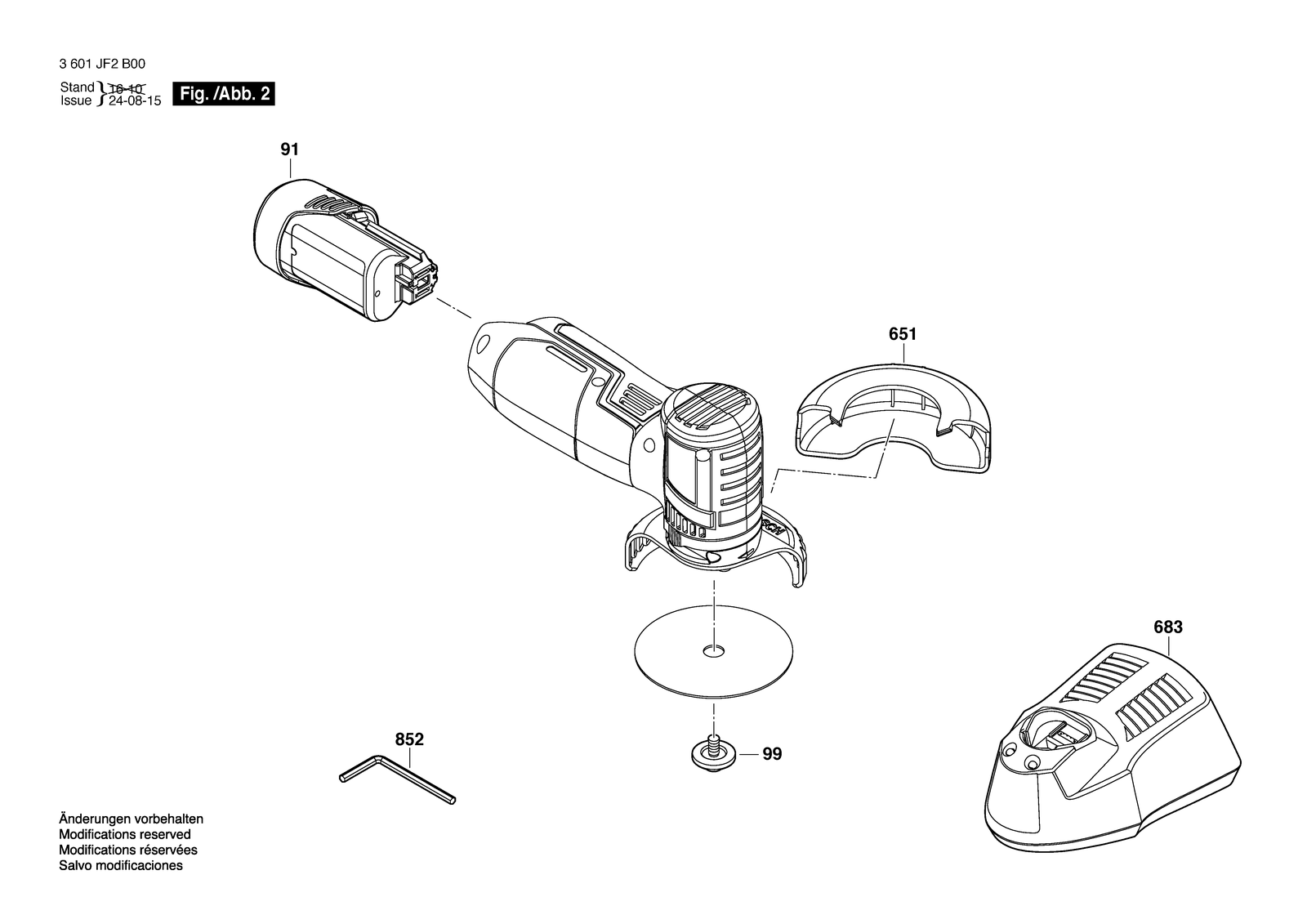

Bosch BACAG BL 10,8 V parts diagram, sheet 1Bosch BACAG BL 10,8 V parts diagram, sheet 2
No.Part numberPart name
116058065F4Housing
116058066T6Housing
116058065F5Housing
18/11600A00R4VSwitch Unit
18/11600A034C4Switch Unit
18/11600A00R4WSwitch Unit
18/21600A004HASpring
18/21600A004HASpring
216051082EHMotor Housing
216051082X7Motor Housing
216051082EJMotor Housing
416072335A2Electronic Module
416072335A2Electronic Module
411600A004HJStopping Device
411600A004HJStopping Device
421600A004HDWave spring
421600A004HDWave spring
431600A00R51Retaining Stirrup
431600A00R52Retaining Stirrup
502609110361Screw
502609110361Screw
611600A00P3AProtective Cover
611600A034C5Protective Cover
611600A00P3AProtective Cover
621600A004HEPressure plate
621600A004HEPressure plate
6511600A004LCProtective Cover
6511600A004LCProtective Cover
6832607226381Fast Charger BBCF 12V 370468 10,8-12V 4A
6832607225297Fast Charger Bti EU 230/10,8 V, 30 Min.
6832607226383Fast Charger 12 V 9 0947764 10,8-12V 4A
702609110537Clip
702609110537Clip
8031600A00DC1Motor Spare Parts Set
8031600A00DC1Motor Spare Parts Set
808160111A3LANameplate
808160111AC3KNameplate
808160111A3LBNameplate
808160111A5LANameplate
8521619P11420Hexagon Socket Wrench
8521619P11420Hexagon Socket Wrench
9160111C0Z6Manufacturer's nameplate Bacag BL 10.8V
9160111C60RManufacturer's nameplate Bacag BL 12 V
9160111C0Z7Manufacturer's nameplate TG 12 A
911607A350A6Battery Pack BBP 12 V 2,0 AH 343769
911607A350A4Battery Pack 12 V 2,0 AH 9 090230
95160111C0WWSticker
95160111C0WWSticker
991600A00B91Clamping Nut
991600A00B91Clamping Nut
