Bosch BABS 12 V

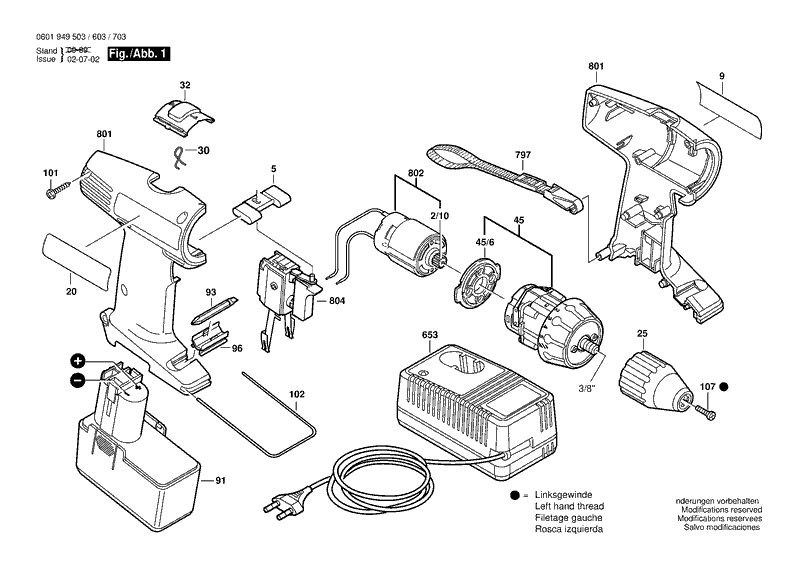

Bosch BABS 12 V batt-oper screwdriver: exploded parts diagram, 1 sheet, 105 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BABS 12 V: 105 positions on 1 sheet
Bosch BABS 12 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 102 | 2601329041 | Retaining Bracket |
| 102 | 2601329041 | Retaining Bracket |
| 102 | 2601329041 | Retaining Bracket |
| 102 | 2601329041 | Retaining Bracket |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 2/10 | 2606316161 | Pinion Z=12 |
| 2/10 | 2606316161 | Pinion Z=12 |
| 2/10 | 2606316161 | Pinion Z=12 |
| 2/10 | 2606316161 | Pinion Z=12 |
| 20 | 2601117433 | Reference Plate Shadow Side |
| 20 | 2601119716 | Reference Plate Shadow Side |
| 20 | 2601119722 | Reference Plate Shadow Side |
| 20 | 2601117470 | Reference Plate |
| 20 | 2601117472 | Reference Plate |
| 20 | 2601119718 | Reference Plate Shadow Side |
| 20 | 2601119720 | Reference Plate Shadow Side |
| 25 | 2608572214 | Keyless Chuck |
| 25 | 2608572214 | Keyless Chuck |
| 25 | 2608572214 | Keyless Chuck |
| 25 | 2608572214 | Keyless Chuck |
| 30 | 2602033008 | Control Fork |
| 30 | 2602033008 | Control Fork |
| 30 | 2602033008 | Control Fork |
| 30 | 2602033008 | Control Fork |
| 32 | 2601099060 | Adjusting Slide Black |
| 32 | 2601099060 | Adjusting Slide Black |
| 32 | 2601099060 | Adjusting Slide Black |
| 32 | 2601099060 | Adjusting Slide Black |
| 45 | 2606200073 | Planetary Gear Train |
| 45 | 2606200073 | Planetary Gear Train |
| 45 | 2606200073 | Planetary Gear Train |
| 45 | 2606200073 | Planetary Gear Train |
| 45/6 | 2605719011 | Intermediate Flange |
| 45/6 | 2605719011 | Intermediate Flange |
| 45/6 | 2605719011 | Intermediate Flange |
| 45/6 | 2605719011 | Intermediate Flange |
| 5 | 2601099055 | Adjusting Slide Red |
| 5 | 2601099055 | Adjusting Slide Red |
| 5 | 2601099055 | Adjusting Slide Red |
| 5 | 2601099055 | Adjusting Slide Red |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 653 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 653 | 2607224705 | Fast Charger AUS 240/7,2-14,4V, 30 Min. |
| 653 | 2607224707 | Fast Charger USA 120/7,2-14,4V, 30 Min. |
| 653 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 653 | 2607224403 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224403 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 653 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 653 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 653 | 2607224705 | Fast Charger AUS 240/7,2-14,4V, 30 Min. |
| 653 | 2607224707 | Fast Charger USA 120/7,2-14,4V, 30 Min. |
| 653 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 797 | 2601398009 | Carrying Loop |
| 797 | 2601398009 | Carrying Loop |
| 797 | 2601398009 | Carrying Loop |
| 797 | 2601398009 | Carrying Loop |
| 801 | 2605104649 | Housing Section Blue |
| 801 | 2605104734 | Housing Section Gray |
| 801 | 2605104734 | Housing Section Gray |
| 801 | 2605104648 | Housing Section Blue |
| 802 | 2607022962 | DC motor 9,6-12V |
| 802 | 2607022962 | DC motor 9,6-12V |
| 802 | 2607022962 | DC motor 9,6-12V |
| 802 | 2607022962 | DC motor 9,6-12V |
| 804 | 2607200353 | On-Off Switch |
| 804 | 2607200353 | On-Off Switch |
| 804 | 2607200353 | On-Off Switch |
| 804 | 2607200353 | On-Off Switch |
| 9 | 2601119715 | Manufacturer's nameplate Sunny Side |
| 9 | 2601119721 | Manufacturer's nameplate Sunny Side |
| 9 | 2601117469 | Manufacturer's nameplate |
| 9 | 2601117471 | Manufacturer's nameplate |
| 9 | 2601119717 | Manufacturer's nameplate Sunny Side |
| 9 | 2601119719 | Manufacturer's nameplate Sunny Side |
| 91 | 2607335054 | Slide-In Accu Package 12V,1,4AH,NICD |
| 91 | 2607335243 | Slide-In Accu Package 12V,2,0AH,NIMH |
| 91 | 2607335376 | Slide-In Accu Package 12V,1,4AH,NICD |
| 91 | 2607335378 | Slide-In Accu Package 12V,1,4AH,NICD |
| 91 | 2607335229 | Slide-In Accu Package 9,6V, 2,6AH,CS,NIMH |
| 91 | 2607336143 | Slide-In Accu Package 9,6V, 1,5 Ah, Nicd |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 96 | 2608040079 | Support |
| 96 | 2608040079 | Support |
| 96 | 2608040079 | Support |
| 96 | 2608040079 | Support |
