Bosch B7350

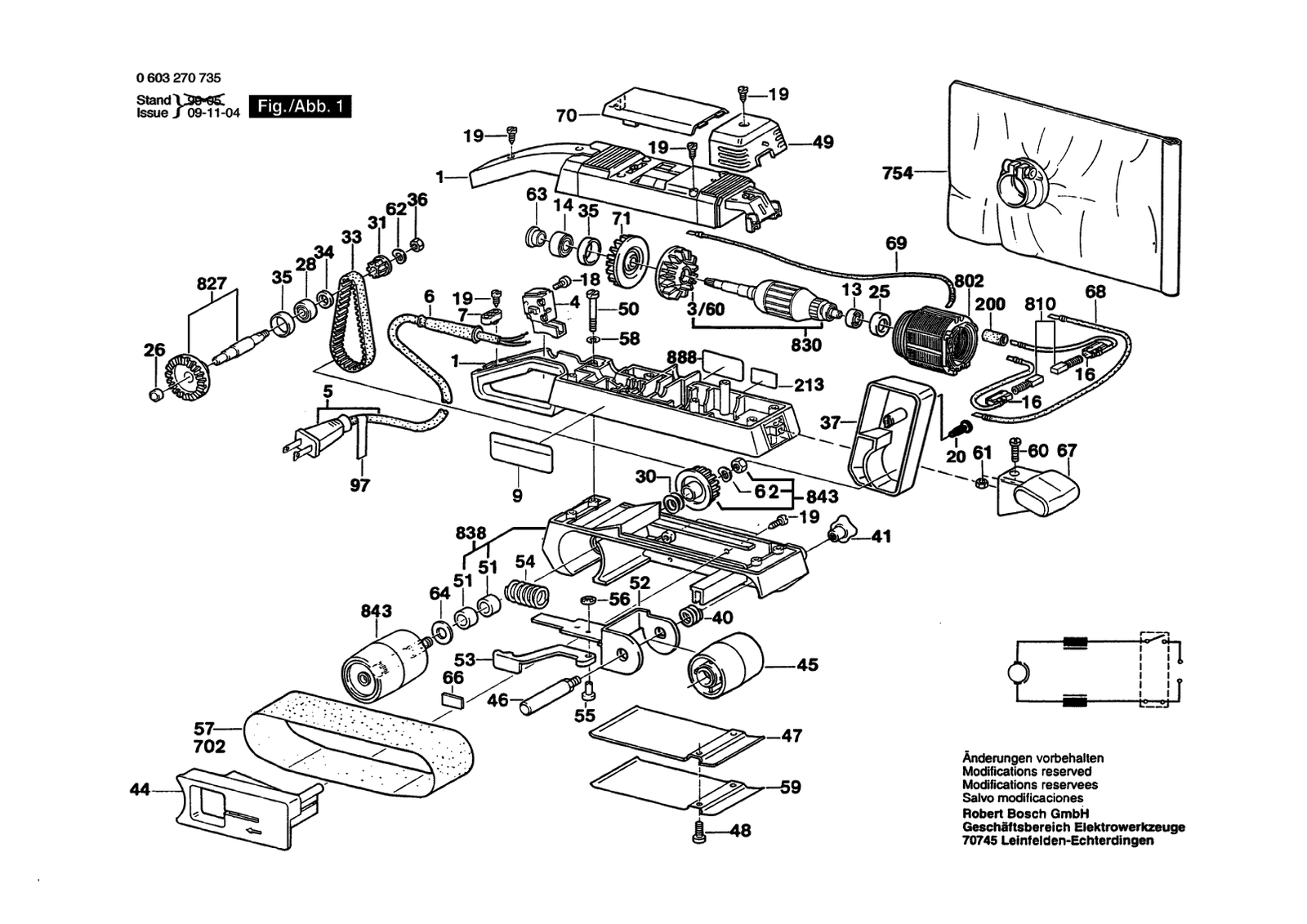

Bosch B7350 belt sander: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch B7350: 64 positions on 1 sheet
Bosch B7350 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104549 | Motor Housing Blue |
| 13 | 2605805008 | Flanged Bearing |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 16 | 2604449026 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 20 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 200 | 1610712034 | Shrinkable Tube |
| 213 | 2601118558 | Reference Plate |
| 25 | 1600502011 | Intermediate Ring |
| 26 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1900905041 | Groove ball bearing 8X22X7 |
| 3/60 | 2606610049 | Fan |
| 30 | 2600100099 | Shim |
| 31 | 1606625026 | Toothed Belt Wheel Z=19 |
| 33 | 1604736005 | Toothed Belt Z=75 |
| 34 | 2916021013 | Plain Washer 8-ST |
| 35 | 1600206024 | Intermediate Ring |
| 36 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 37 | 2605510138 | Covering hood Gray |
| 4 | 2607200321 | On-Off Switch |
| 40 | 2604630002 | Compression Spring |
| 41 | 2603339005 | Wing Nut |
| 44 | 1608005004 | Base Blue |
| 45 | 2606625908 | Roller |
| 46 | 1603521027 | Axle |
| 47 | 1601098005 | Base Plate |
| 48 | 2603410045 | Socket head cap screw DIN 84-M5X10-4.8 |
| 49 | 2605500127 | Brush-Cover Gray |
| 5 | 2604460189 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 50 | 2910011170 | Socket head cap screw DIN 84-BM5X40-5.8 |
| 51 | 1900301018 | Sintered-Metal Bushing DIN 1850-J12X18X12 |
| 52 | 1605807013 | Bearing Bracket |
| 53 | 2602098006 | Tensioning Lever Yellow |
| 54 | 1604619017 | Compression Spring |
| 55 | 2917030110 | Button-Head Rivet |
| 56 | 1600146001 | Locking washer |
| 57 | 1609200555 | Abrasive Belt |
| 58 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 59 | 1601098006 | Slide Plate |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 2910021126 | Socket head cap screw DIN 84-AM4X16-8.8 |
| 61 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 62 | 2916061007 | Spring Washer DIN 137-A6-FST |
| 63 | 1600322034 | Seal Ring |
| 64 | 1600101618 | Shim Thick 0,3 MM |
| 66 | 1601010007 | Ceramic Plate |
| 67 | 1605133036 | Handle Black |
| 68 | 1604438018 | Connecting Cable White L=410 MM |
| 69 | 1604448000 | Connecting Cable White L=373 MM |
| 7 | 2601035001 | Cable Clip |
| 70 | 2605500128 | Housing Cover Gray |
| 702 | 1609201386 | Abrasive Belt KORN 80 |
| 71 | 1606610120 | Fan |
| 754 | 1605411025 | Dust Bag |
| 802 | 1604220240 | Field 120V |
| 810 | 2604321905 | Carbon-Brush Set |
| 827 | 2606333900 | Crown Gear Z=45 |
| 830 | 1604010253 | Armature 120V |
| 838 | 2605190900 | Housing |
| 843 | 2606625906 | Roller |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601118497 | Manufacturer's nameplate Sunny Side |
| 97 | 2610904501 | Label Caution |
