Bosch B 6050 drill: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch B 6050: 43 positions on 1 sheet

Bosch B 6050 parts list (1 sheet)

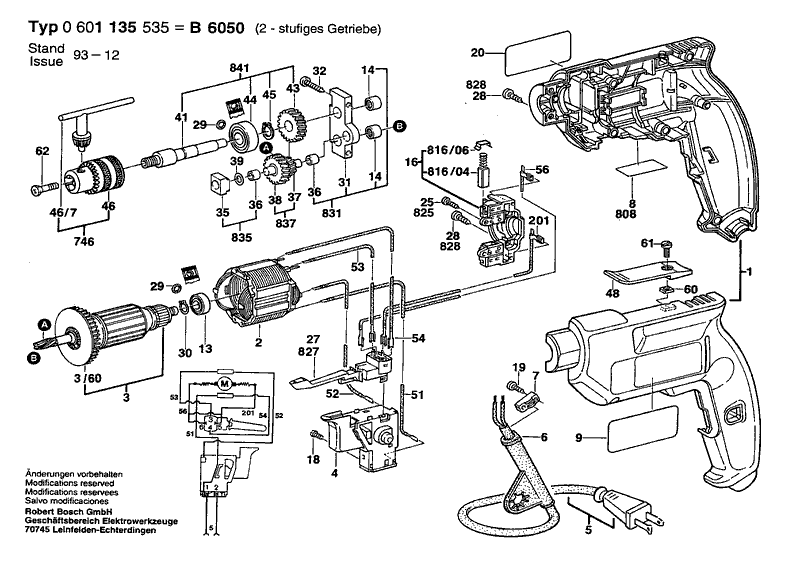

Bosch B 6050 parts diagram, sheet 1
No.Part numberPart name
12605104316Housing Section Blue
132600905032Ball Bearing 7X19X6
142600917003Needle-Roller Bearing Ø8X8 MM
162605807063Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220432Field 115V
202601118666Reference Plate Shadow Side
2012604448115Connecting Cable White L=73 MM
292600210036O-Ring 5,0X1,75 MM
32604011070Armature 120V
3/602606610027Fan
302600209004Spacer Ring
322603490025Torx Oval-Head Screw 4X30
362600917004Needle bearing
392600100627Shim 0,3 MM
42607200203Switch
432606320046Cylindrical Gear Z=27
441900905232Groove ball bearing 6200-2Z DIN 625
452916650001Spring retaining ring DIN 471-10X1MM-FST
52604460188Power supply cord Usa/cdn 2,68M 2 X 0,82MM SJ 18/2
512604448060Cable White L=173 MM
522604448045Cable Black L=98 MM
532604448132Connecting Cable Blue L=103 MM
542604448034Connecting Cable White L=88 MM
562604448147Connecting Cable White L=85 MM
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
62600707061Grommet Ø8,8 MM
602915121004Square Nut DIN 562-M4-04
622603421211Countersunk-Head Screw Lefthand Threads M6X20 MM
72601035001Cable Clip
7461608571005Key Chuck Ø0,8-10 Mm, 1/2"
808160111A3HCNameplate
816/042604321905Carbon-Brush Set
816/062601322013Ratchet Cap
8272607200231Change-Over Switch
8282912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
8312605807929Bearing Bracket
8352600917903Bearing Piece
8372606311906Toothed Shaft Z=12/24
8412606135924Drilling Spindle Lefthand Threads 1/2", M6
92601118665Manufacturer's nameplate Sunny Side
