Bosch B 2100

Bosch B 2100 cordless drill: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch B 2100: 23 positions on 1 sheet

Bosch B 2100 parts list (1 sheet)

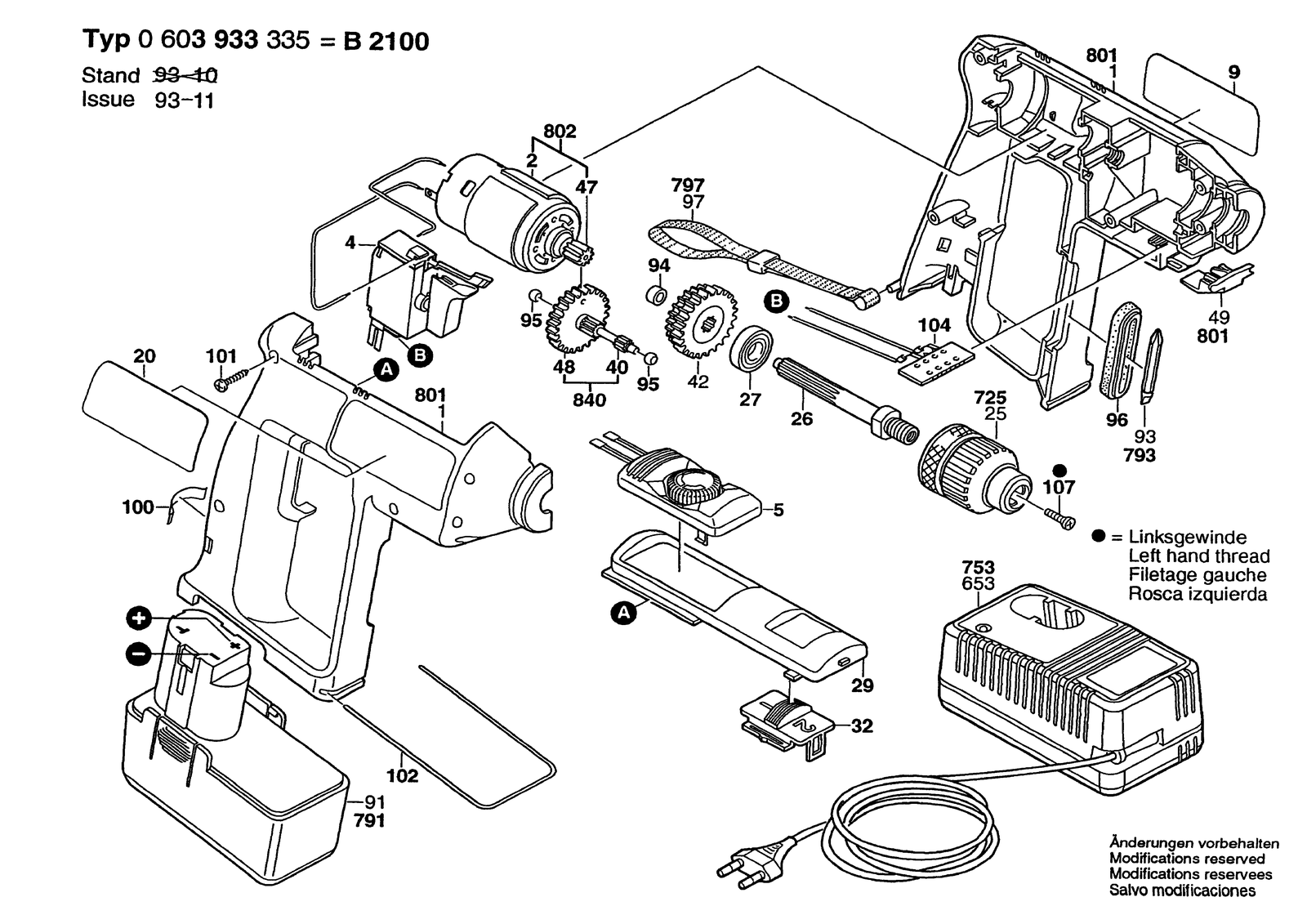

Bosch B 2100 parts diagram, sheet 1
No.Part numberPart name
12605104465Housing Section Blue
1002601322016Clamp Spring
1012912401420Tapping Screw DIN7981-ST3,9X19-F-Z
1022601329041Retaining Bracket
1042608018004Contact retainer
1072609110721Countersunk-Head Screw M5X20
262606309915Drilling Spindle 3/8"
271900905120Groove ball bearing 10X26X8
292605510116Insert Piece Black
322601099058Adjusting Slide Yellow
42607200334On-Off Switch
421609340007Cylindrical Gear Z=58/67
472606316112Pinion Z=11
492605510117Insert Piece Black
52607233030Torque Control
7532607224431Fast Charger USA 120/7,2-24V, 1H
7912607336143Slide-In Accu Package 9,6V, 1,5 Ah, Nicd
7972601398009Carrying Loop
8022607022931DC motor 12V
8401609340005Toothed Shaft Z=10/19/81
942600301011Sintered-Metal Bushing
952600302002Sintered-Metal Bushing
962600290022Rubber-Inter Calation
