Bosch AXT Rapid 180
Bosch AXT Rapid 180 chopper: exploded parts diagram, 2 sheets, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

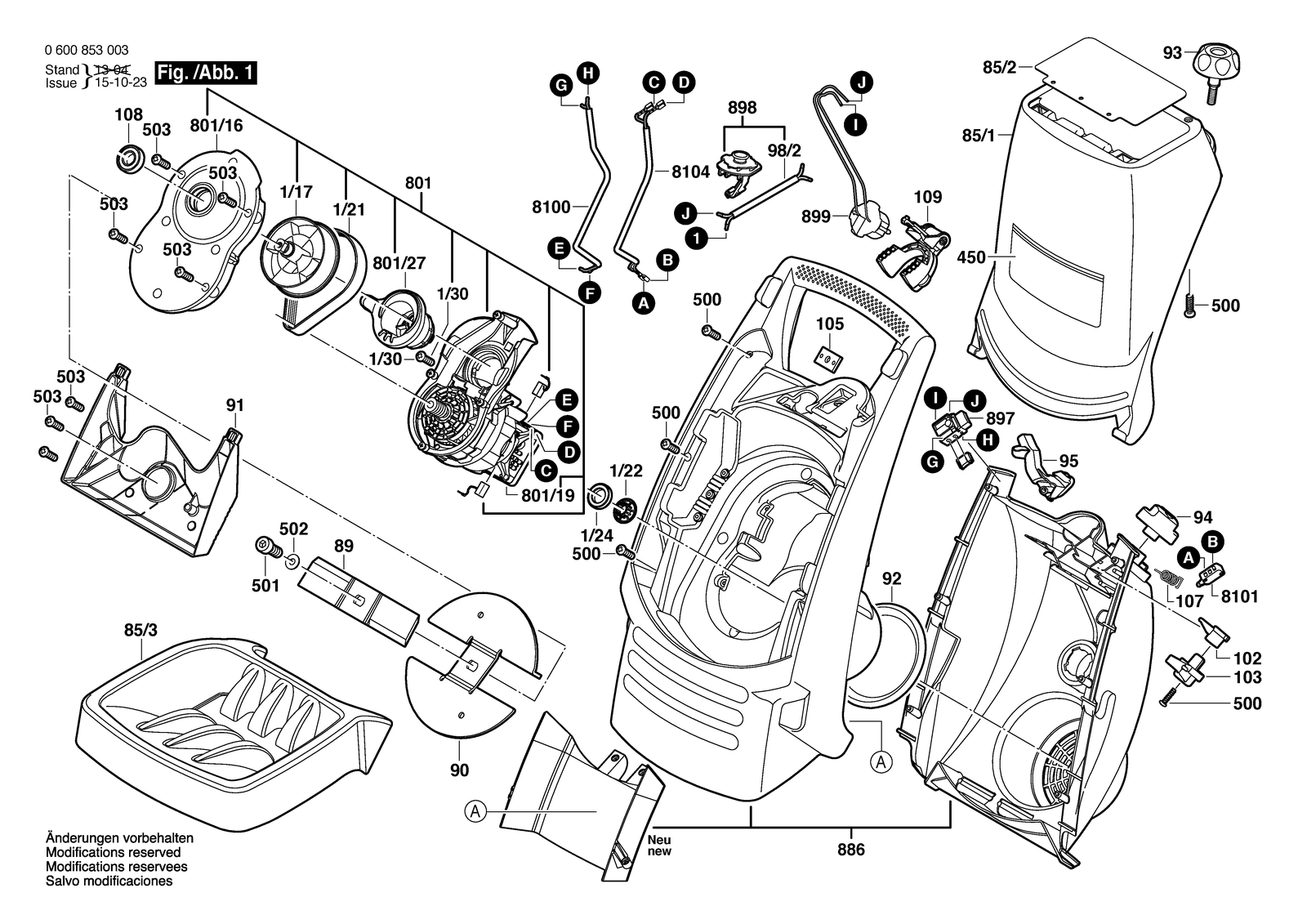

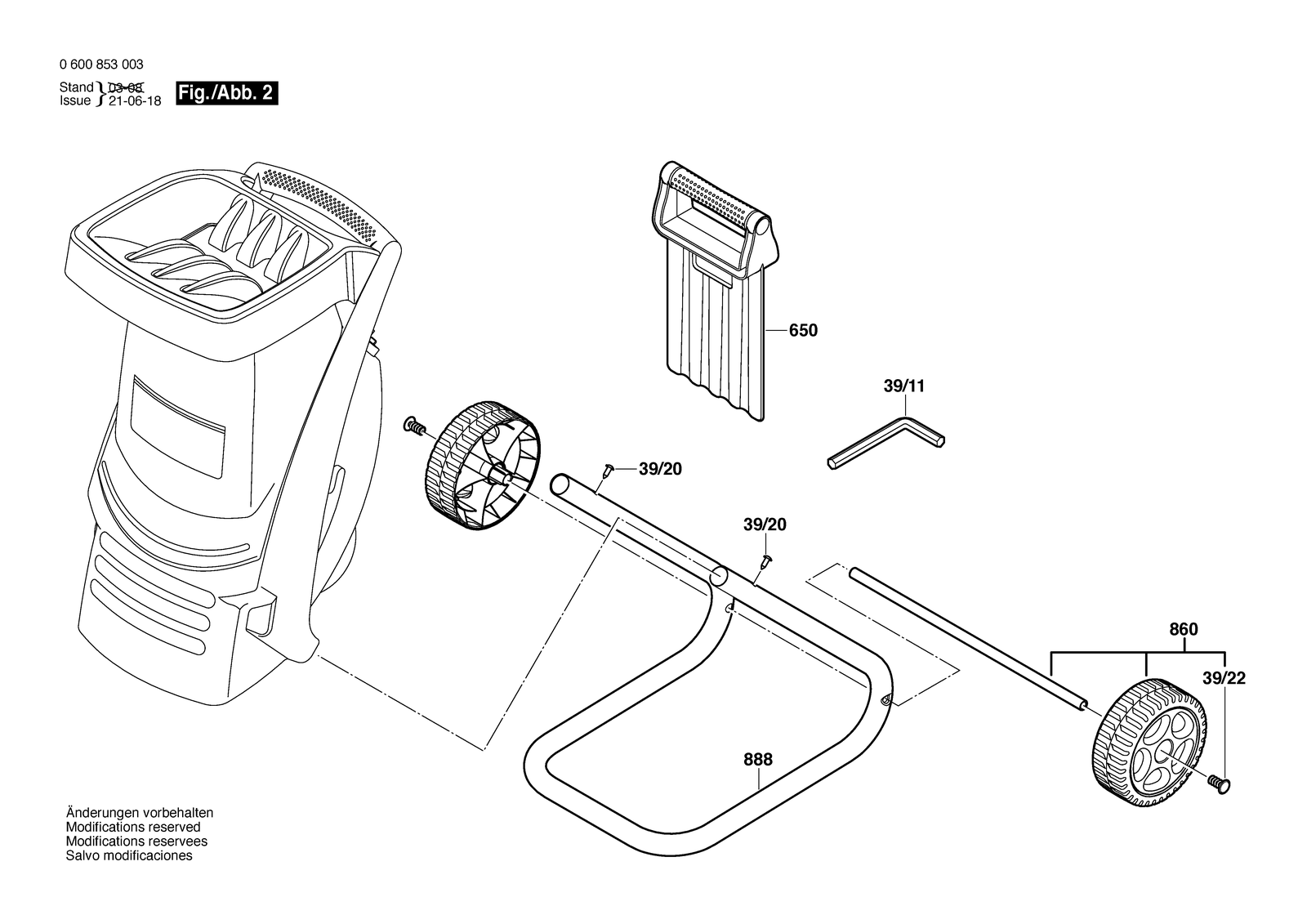

All parts of Bosch AXT Rapid 180: 88 positions on 2 sheets
Bosch AXT Rapid 180 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/17 | F016L64674 | Drive Shaft |
| 1/17 | F016L64674 | Drive Shaft |
| 1/21 | F016L64673 | Drive Belt |
| 1/21 | F016L64673 | Drive Belt |
| 1/22 | 1600A014DZ | Magnet |
| 1/22 | 1600A014DZ | Magnet |
| 1/24 | F016L64659 | Bushing |
| 1/24 | F016L64659 | Bushing |
| 1/30 | F016L37433 | Self-Cutting Screw |
| 1/30 | F016L37433 | Self-Cutting Screw |
| 102 | F016L64687 | Switching Cam |
| 102 | F016L64687 | Switching Cam |
| 103 | F016L64737 | Actuator |
| 103 | F016L64737 | Actuator |
| 105 | F016L64745 | Backing Plate |
| 105 | F016L64745 | Backing Plate |
| 107 | F016L64739 | Spring |
| 107 | 2609005435 | Spring |
| 108 | F016L64744 | Spacer |
| 108 | F016L65506 | Spacer |
| 109 | F016L65228 | Set ring |
| 109 | F016L65228 | Set ring |
| 39/11 | F016L64689 | Hexagon-Socket Key |
| 39/11 | F016L64689 | Hexagon-Socket Key |
| 39/20 | F016L36542 | Screw M5X8 Csk Hd. |
| 39/20 | F016L36542 | Screw M5X8 Csk Hd. |
| 39/22 | F016L64669 | Retaining Pin |
| 39/22 | F016L64669 | Retaining Pin |
| 450 | F016L64704 | Sticker |
| 450 | F016L64704 | Sticker |
| 500 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 500 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 501 | F016L64679 | Trunnion |
| 501 | F016L64679 | Trunnion |
| 502 | F016L64746 | Washer |
| 502 | F016L64746 | Washer |
| 503 | F016L64777 | Screw |
| 503 | F016L64777 | Screw |
| 650 | F016L64727 | Pusher |
| 650 | F016L64727 | Pusher |
| 801 | F016104209 | Motor |
| 801 | F016104209 | Motor |
| 801/16 | F016103184 | Housing |
| 801/16 | F016103184 | Housing |
| 801/19 | F016103642 | Speed Limiter |
| 801/19 | F016103642 | Speed Limiter |
| 801/27 | F016104211 | Belt Tensioner |
| 801/27 | F016104211 | Belt Tensioner |
| 8100 | 1607000D04 | Wiring unit |
| 8100 | 1607000D04 | Wiring unit |
| 8101 | F016103197 | Microswitch |
| 8101 | F016103197 | Microswitch |
| 8104 | F016103198 | Connecting Cable |
| 8104 | F016103198 | Connecting Cable |
| 85/1 | F016L64652 | Chute |
| 85/1 | F016L64652 | Chute |
| 85/2 | F016L65500 | Parts Set |
| 85/2 | F016L65500 | Parts Set |
| 85/3 | F016L64653 | Hopper |
| 85/3 | F016L64653 | Hopper |
| 860 | F016103218 | Wheel |
| 860 | F016103218 | Wheel |
| 886 | 2609006805 | Housing |
| 886 | 2609006805 | Housing |
| 888 | F016103186 | Supporting Frame |
| 888 | F016103186 | Supporting Frame |
| 89 | 2608635492 | Shredder blade |
| 89 | 2608635492 | Shredder blade |
| 897 | F016103192 | On-Off Switch |
| 897 | F016103192 | On-Off Switch |
| 899 | F016103193 | Power supply cord |
| 899 | F016103194 | Power supply cord |
| 899 | F016103195 | Power supply cord |
| 899 | F016103193 | Power supply cord |
| 899 | F016103194 | Power supply cord |
| 899 | F016103195 | Power supply cord |
| 90 | F016L64663 | Mounting Plate |
| 90 | F016L64663 | Mounting Plate |
| 91 | F016L64664 | Cutter Plate |
| 91 | F016L64664 | Cutter Plate |
| 92 | F016L64665 | Filter Element |
| 92 | F016L64665 | Filter Element |
| 93 | F016P64666 | Assembly kit |
| 93 | F016P64666 | Assembly kit |
| 94 | F016L64667 | Knob |
| 94 | F016L64667 | Knob |
| 95 | 2609005618 | Switching Element |
| 95 | 2609005618 | Switching Element |
