Bosch AXT 2500 HP

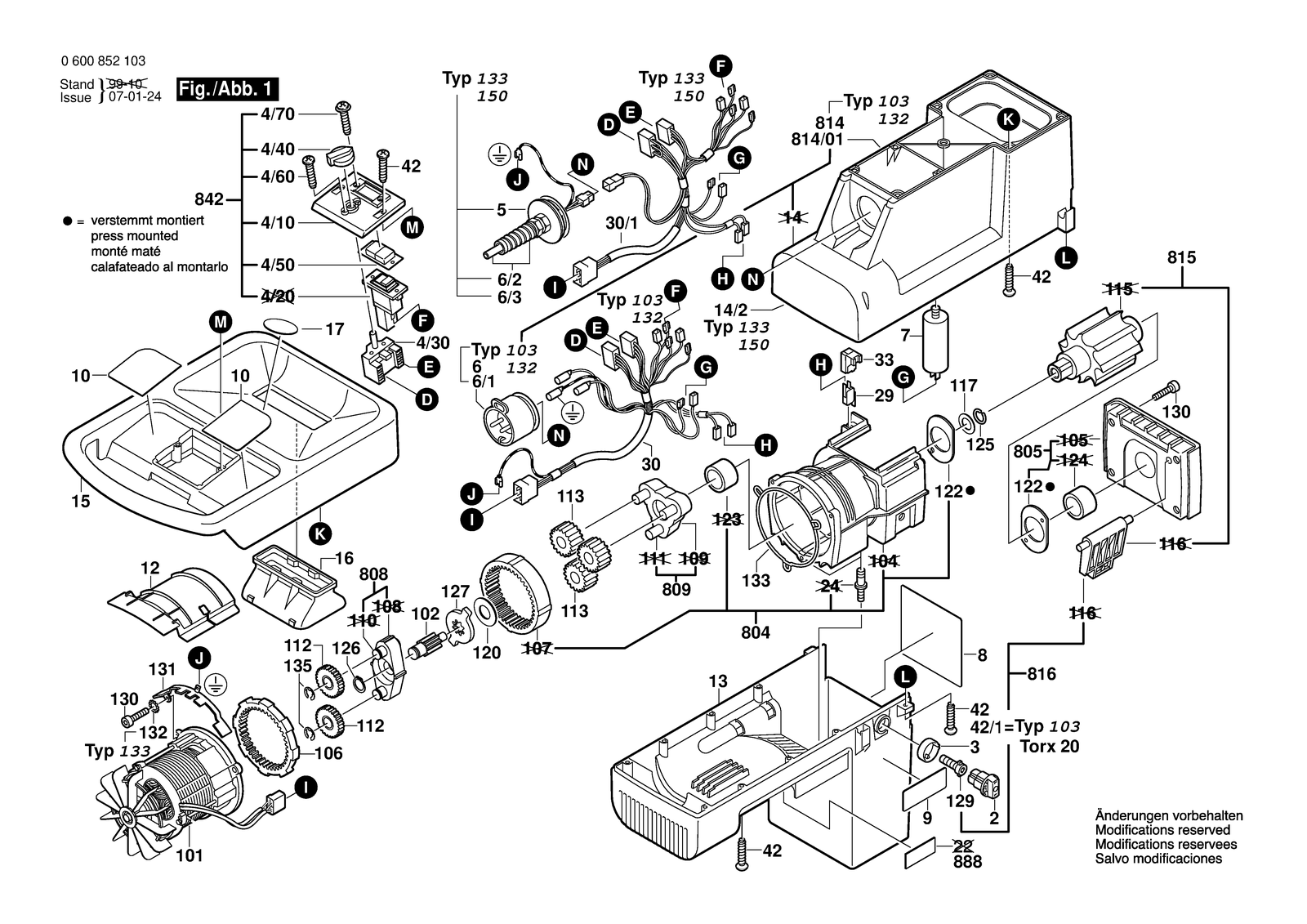

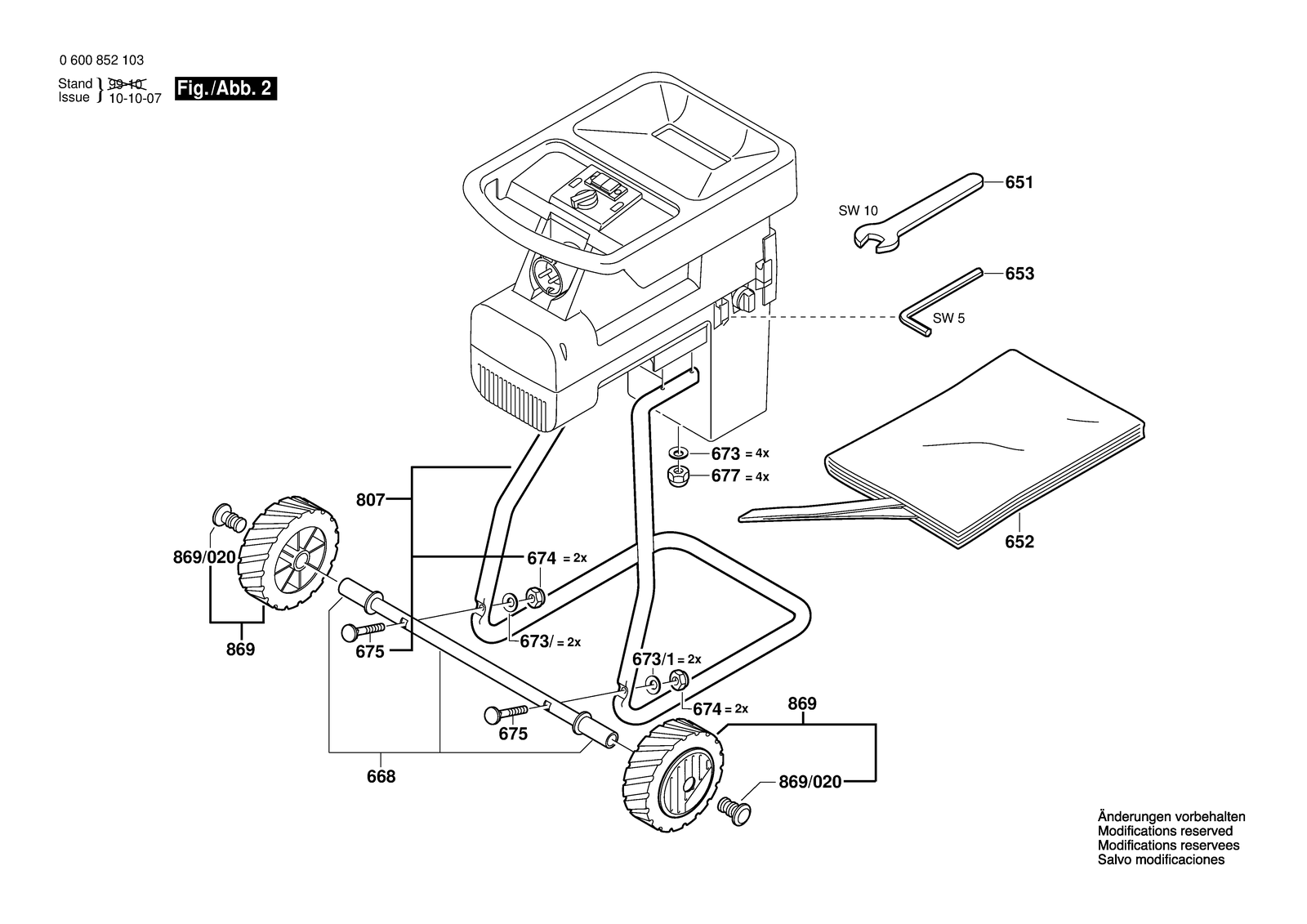

Bosch AXT 2500 HP chopper: exploded parts diagram, 2 sheets, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AXT 2500 HP: 68 positions on 2 sheets
Bosch AXT 2500 HP parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1601118A81 | Reference Plate |
| 101 | 1607220034 | Motor 230V |
| 102 | 1606318011 | Toothed Gear Z=8 |
| 106 | 1606334006 | Ring Gear Z=112 |
| 112 | 1606317088 | Toothed Gear Z=49 |
| 113 | 1606318008 | Toothed Gear Z=23 |
| 117 | 1600100032 | Friction Washer |
| 12 | 1605500190 | Cover Plate |
| 120 | 1600100027 | Friction Washer |
| 122 | 1601034040 | Scraper |
| 125 | 2916600006 | Retaining ring 10 DIN 9045 |
| 126 | 2916650009 | Spring retaining ring DIN 471 18X1,2MM |
| 127 | 1606490040 | Carrier |
| 129 | 1603490004 | Adjusting Screw |
| 13 | 1605190057 | Housing Base Green |
| 130 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 131 | 1601329028 | Holding Plate |
| 132 | 2916039043 | Toothed lock washer |
| 133 | 1600290035 | Seal |
| 135 | 2916080014 | Locking washer DIN 6799-12-FST |
| 14/2 | 1605190052 | Upper Housing Green |
| 15 | 1605190183 | Housing Cover Black |
| 16 | 1605190055 | Insert Black |
| 17 | 1601118916 | Sticker |
| 2 | 1600591021 | Adjustment Knob |
| 29 | 1607200134 | Switch |
| 3 | 1600290034 | Spring Clip |
| 30 | 1604449010 | Wiring Harness |
| 30/1 | 1604449011 | Wiring Harness |
| 33 | 1605190059 | Switch Support |
| 4/10 | 1605190132 | Switch Plate |
| 4/30 | 1607200131 | Switch |
| 4/40 | 1602025029 | Switch Button |
| 4/50 | 1605500207 | Protective Cap |
| 4/60 | 1603425001 | Oval-Head Screw KT 4,0X14 |
| 4/70 | 2914211503 | Oval-Head Screw 4X12 MM |
| 42/1 | 1603435054 | Thread-forming tap. Screw TORX-T20 |
| 5 | 1600109012 | Seal |
| 6 | 1605190060 | Connection Part |
| 6/1 | 1605190065 | Connection Part |
| 6/2 | 1607000961 | Connection Part |
| 6/3 | 1607000963 | Connection Part |
| 651 | 1607950527 | Single-Head Eng. Wrench SW10 |
| 652 | 1605411031 | Catcher Container |
| 653 | 1607950057 | Offset Screwdriver SW5 |
| 668 | 1607000957 | Axle |
| 673 | 1600190030 | Plain Washer |
| 673/1 | 1600190030 | Plain Washer |
| 674 | 2915061004 | Hex Nut DIN 985-M6-8 |
| 675 | 2910281213 | Round-Head Bolt DIN 603 M6X50 |
| 677 | 2915151001 | Cap Nut DIN 1587-M6-M-6 |
| 7 | 1607328069 | Suppression Filter |
| 8 | 1601118K72 | Nameplate |
| 8 | 1601118K77 | Nameplate |
| 804 | 1607000819 | Gear Housing |
| 805 | 1607000813 | Bearing Flange |
| 807 | 1607000829 | Supporting Frame |
| 808 | 1607000874 | Planetary-Gear Carrier |
| 809 | 1607000820 | Planetary-Gear Carrier |
| 814 | 1605190078 | Upper Housing Green |
| 814/01 | 1605190079 | Upper Housing Green |
| 815 | 1607000821 | Cutting Head |
| 816 | 1601000001 | Counter Bar |
| 842 | 1607000863 | Switch Kit |
| 869 | 1609351088 | Wheel Ø200 MM |
| 869/020 | 1609351075 | Plug |
| 888 | 160111A3H5 | Nameplate |
| 9 | 1601118928 | Reference Plate |
