Bosch AXT 23 TC
Bosch AXT 23 TC chopper: exploded parts diagram, 3 sheets, 172 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

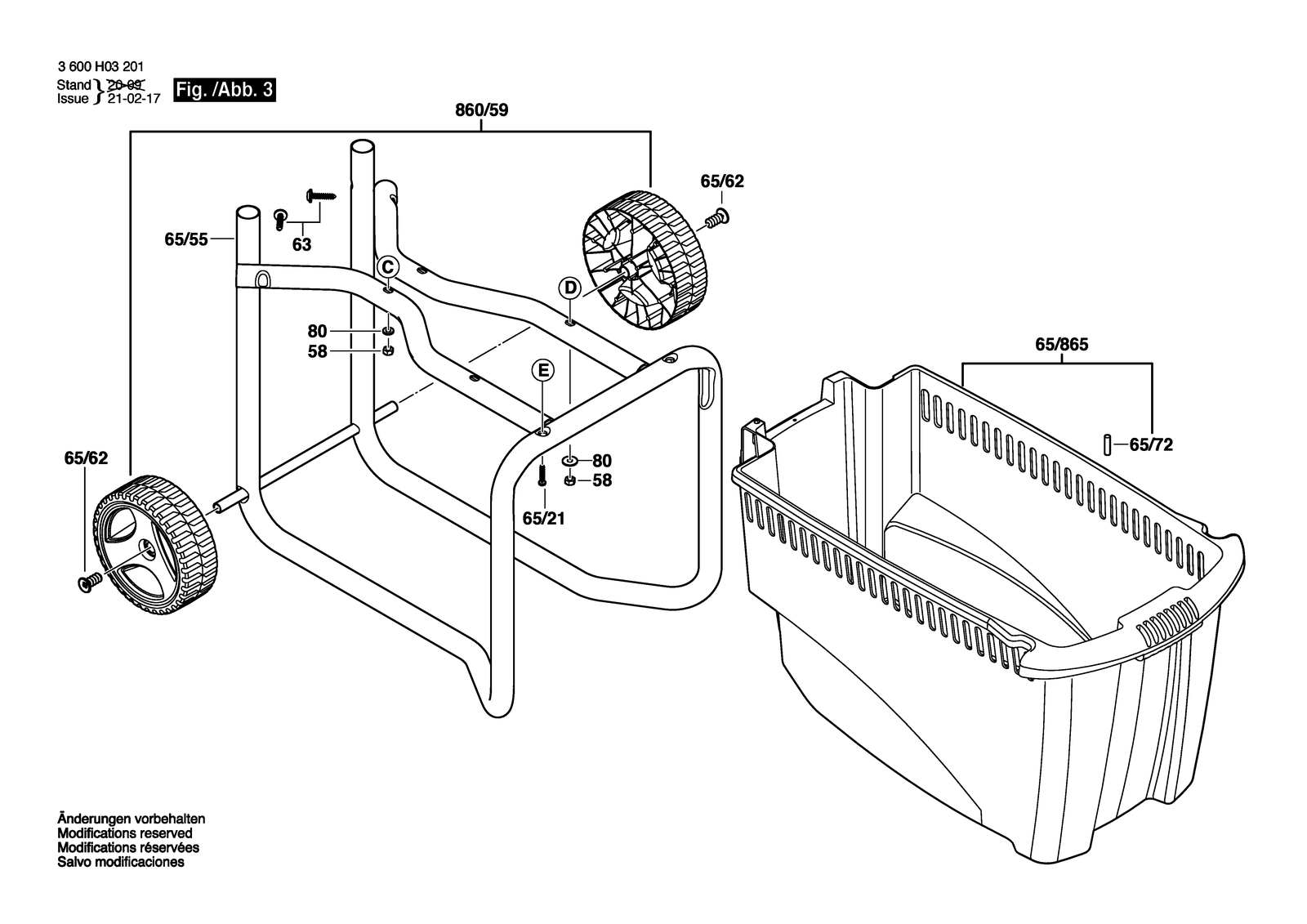

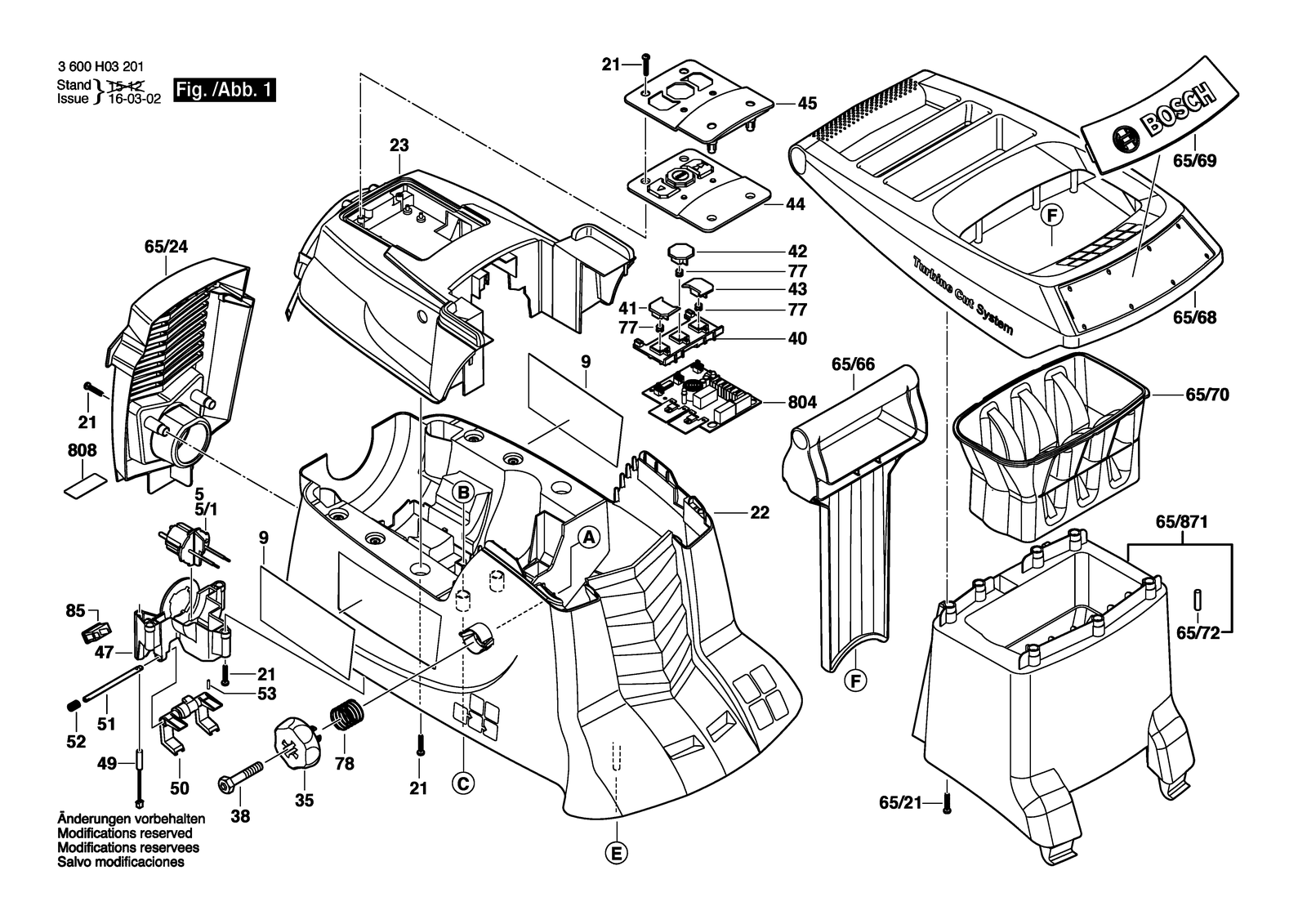

All parts of Bosch AXT 23 TC: 172 positions on 3 sheets
Bosch AXT 23 TC parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 2/2/10 | 2609003830 | Screw |
| 2/2/10 | 2609003830 | Screw |
| 2/2/14 | 2609003833 | Housing |
| 2/2/14 | 2609003833 | Housing |
| 2/2/15 | 2609003834 | Insert |
| 2/2/15 | 2609003834 | Insert |
| 2/2/17 | 2609003836 | Flanged Bearing |
| 2/2/17 | 2609003836 | Flanged Bearing |
| 2/2/19 | 2609003838 | Seal Ring |
| 2/2/19 | 2609003838 | Seal Ring |
| 2/2/22 | 2609003841 | Porous Bearing |
| 2/2/22 | 2609003841 | Porous Bearing |
| 2/2/23 | 2609003842 | Planet Gear |
| 2/2/23 | 2609003842 | Planet Gear |
| 2/2/24 | 2609003843 | Washer |
| 2/2/24 | 2609003843 | Washer |
| 2/2/3 | 2609003824 | Screw |
| 2/2/3 | 2609003824 | Screw |
| 2/2/36 | 2609003854 | Fan |
| 2/2/36 | 2609003854 | Fan |
| 2/2/37 | 2609003855 | Spring retaining ring |
| 2/2/37 | 2609003855 | Spring retaining ring |
| 2/2/38 | 2609004582 | Clamping Piece |
| 2/2/38 | 2609004582 | Clamping Piece |
| 2/2/39 | 2609005863 | Motor Capacitor |
| 2/2/39 | 2609007667 | Motor Capacitor |
| 2/2/39 | 2609007667 | Motor Capacitor |
| 2/2/4 | 2609003825 | Spring Washer |
| 2/2/4 | 2609003825 | Spring Washer |
| 2/2/50 | 2609004520 | Bolt |
| 2/2/50 | 2609004520 | Bolt |
| 2/2/6 | 2609004197 | O-Ring |
| 2/2/6 | 2609004197 | O-Ring |
| 2/2/78 | 2910400244 | Hex Socket Head Cap Screw |
| 2/2/78 | 2910400244 | Hex Socket Head Cap Screw |
| 2/2/8 | 2609003828 | Connecting Plate |
| 2/2/8 | 2609003828 | Connecting Plate |
| 2/2/81 | 2609003315 | Locking washer |
| 2/2/81 | 2609003315 | Locking washer |
| 2/2/844 | 2609007456 | Gear Box |
| 2/2/844 | 2609007456 | Gear Box |
| 2/2/9 | 2609003829 | Plate |
| 2/2/9 | 2609003829 | Plate |
| 2/73 | 2609002763 | Turbine cutter |
| 2/73 | 2609002763 | Turbine cutter |
| 21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 22 | 2609004511 | Housing |
| 22 | 2609004511 | Housing |
| 23 | 2609004512 | Upper Housing |
| 23 | 2609004512 | Upper Housing |
| 25 | 2609004514 | Flap |
| 25 | 2609004514 | Flap |
| 26 | 2609003144 | Spring |
| 26 | 2609003144 | Spring |
| 27 | 2609002795 | Bolt |
| 27 | 2609002795 | Bolt |
| 32 | 2609004515 | Knob |
| 32 | 2609004515 | Knob |
| 35 | 2609004516 | Knob |
| 35 | 2609004516 | Knob |
| 38 | 2609004602 | Adjusting Screw |
| 38 | 2609004602 | Adjusting Screw |
| 40 | 2609004640 | Holder |
| 40 | 2609004640 | Holder |
| 41 | 2609003399 | Cap |
| 41 | 2609003399 | Cap |
| 42 | 2609003400 | Cap |
| 42 | 2609003400 | Cap |
| 43 | 2609003401 | Cap |
| 43 | 2609003401 | Cap |
| 44 | 2609002755 | Rubber Pad |
| 44 | 2609002755 | Rubber Pad |
| 45 | 2609004607 | Cover Plate |
| 45 | 2609004607 | Cover Plate |
| 46 | 2603413035 | Oval-Head Screw M4X8 |
| 46 | 2603413035 | Oval-Head Screw M4X8 |
| 47 | 2609004519 | Socket housing |
| 47 | 2609004519 | Socket housing |
| 48 | 2609005130 | Relay |
| 48 | 2609005130 | Relay |
| 49 | 2609003540 | Reed switch |
| 49 | 2609003540 | Reed switch |
| 5 | 2609003149 | Cable Set EU |
| 5 | 2609003149 | Cable Set EU |
| 5/1 | 2609003515 | Cable Set UK |
| 5/1 | 2609003516 | Cable Set Ch |
| 5/1 | 2609005329 | Cable Set |
| 5/1 | 2609003515 | Cable Set UK |
| 50 | 2609004603 | Rocker Rod |
| 50 | 2609004603 | Rocker Rod |
| 51 | 2609002846 | Bolt |
| 51 | 2609002846 | Bolt |
| 52 | 2609002847 | Spring |
| 52 | 2609002847 | Spring |
| 53 | 2609002793 | Slotted Spring Pin |
| 53 | 2609002793 | Slotted Spring Pin |
| 54 | 1600A020TT | Slotted Spring Pin |
| 54 | 1600A020TT | Slotted Spring Pin |
| 56 | 2609003267 | Holding Pin |
| 56 | 2609003267 | Holding Pin |
| 57 | 2609003268 | Holding Pin |
| 57 | 2609003268 | Holding Pin |
| 58 | 2609003551 | Nut |
| 58 | 2609003551 | Nut |
| 63 | 2609003552 | Thread-forming tap. Screw 4,8X22 |
| 63 | 2609003552 | Thread-forming tap. Screw 4,8X22 |
| 65/21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 65/21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 65/24 | 2609004513 | Rear Housing Section |
| 65/24 | 2609004513 | Rear Housing Section |
| 65/55 | 2609004243 | Supporting Frame |
| 65/55 | 2609004243 | Supporting Frame |
| 65/62 | F016L64669 | Retaining Pin |
| 65/62 | F016L64669 | Retaining Pin |
| 65/66 | 2609002752 | Pusher |
| 65/66 | 2609002752 | Pusher |
| 65/68 | 2609004641 | Handle |
| 65/68 | 2609004641 | Handle |
| 65/69 | 2609002685 | Company Logo AXT 25 D |
| 65/69 | 2609002685 | Company Logo AXT 25 D |
| 65/70 | 2609004606 | Hopper |
| 65/70 | 2609004606 | Hopper |
| 65/72 | 2609002799 | Magnet |
| 65/72 | 2609002799 | Magnet |
| 65/865 | 2609006904 | Catcher Container |
| 65/865 | 2609006904 | Catcher Container |
| 65/871 | 2609006903 | Chute |
| 65/871 | 2609006903 | Chute |
| 76 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 76 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 77 | 2609003683 | Compression Spring |
| 77 | 2609003683 | Compression Spring |
| 78 | 2609004604 | Spring |
| 78 | 2609004604 | Spring |
| 80 | 2610386712 | Washer DIN 9021-6,4X18X1,6 |
| 80 | 2610386712 | Washer DIN 9021-6,4X18X1,6 |
| 801 | 2609004913 | Bearing plate |
| 801 | 2609004913 | Bearing plate |
| 802 | 2609004990 | Motor |
| 802 | 2609004990 | Motor |
| 802/32 | 2609003851 | Ring Gear |
| 802/32 | 2609003851 | Ring Gear |
| 804 | 1600A00H67 | Electronic Assembly |
| 804 | 1600A00H6B | Electronic Assembly |
| 804 | 1600A00H67 | Electronic Assembly |
| 805 | 2609004916 | Guide-Plate |
| 805 | 2609004916 | Guide-Plate |
| 807 | 2609003827 | Screw |
| 807 | 2609003827 | Screw |
| 808 | 160111A3XC | Nameplate |
| 808 | 160111A3XD | Nameplate |
| 808 | 160111A3XE | Nameplate |
| 808 | 160111A3XF | Nameplate |
| 808 | 160111A3XG | Nameplate |
| 808 | 160111A3XH | Nameplate |
| 816 | 2609004989 | Split Pin |
| 816 | 2609004989 | Split Pin |
| 820 | 2609006274 | Shaft |
| 820 | 2609006274 | Shaft |
| 83 | 2609005100 | Cable tie |
| 83 | 2609005100 | Cable tie |
| 84 | 2609003145 | Switch |
| 84 | 2609003145 | Switch |
| 85 | 2609003517 | Switch Rocker |
| 85 | 2609003517 | Switch Rocker |
| 860/59 | 2609003159 | Wheel |
| 860/59 | 2609003159 | Wheel |
| 9 | 2609003152 | Manufacturer's nameplate AXT 23 Tc |
| 9 | 160111C08D | Manufacturer's nameplate AXT 2550 Tc |
| 9 | 160111C0N6 | Manufacturer's nameplate Axt Expert |
| 9 | 2609003153 | Manufacturer's nameplate AXT 25 Tc |
