Bosch AXT 23 TC
Bosch AXT 23 TC chopper: exploded parts diagram, 3 sheets, 183 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

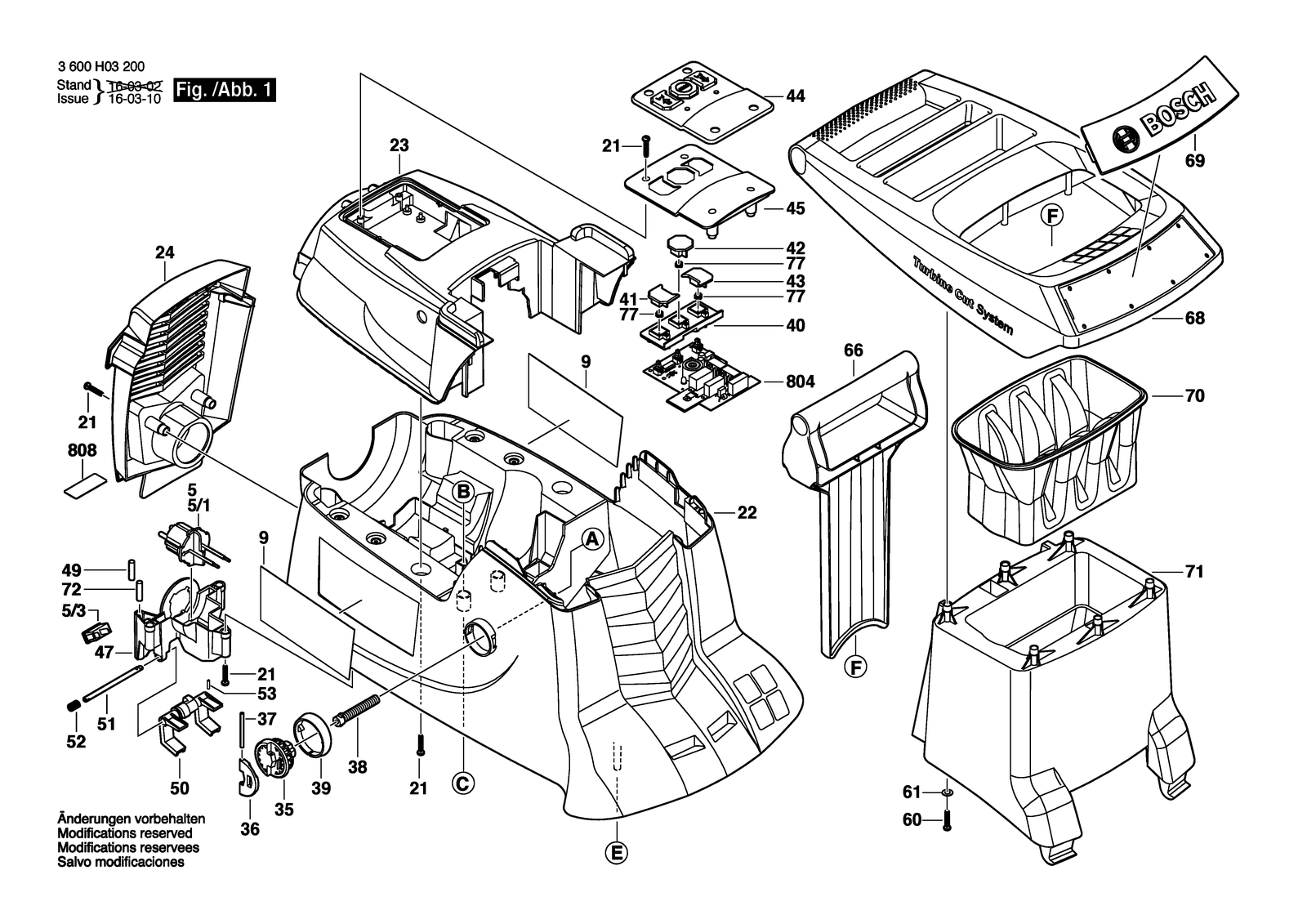

All parts of Bosch AXT 23 TC: 183 positions on 3 sheets
Bosch AXT 23 TC parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 2/1/10 | 2609003830 | Screw |
| 2/1/10 | 2609003830 | Screw |
| 2/1/13 | 2609004198 | Spring retaining ring |
| 2/1/13 | 2609004198 | Spring retaining ring |
| 2/1/14 | 2609003833 | Housing |
| 2/1/14 | 2609003833 | Housing |
| 2/1/15 | 2609003834 | Insert |
| 2/1/15 | 2609003834 | Insert |
| 2/1/17 | 2609003836 | Flanged Bearing |
| 2/1/17 | 2609003836 | Flanged Bearing |
| 2/1/19 | 2609003838 | Seal Ring |
| 2/1/19 | 2609003838 | Seal Ring |
| 2/1/22 | 2609003841 | Porous Bearing |
| 2/1/22 | 2609003841 | Porous Bearing |
| 2/1/23 | 2609003842 | Planet Gear |
| 2/1/23 | 2609003842 | Planet Gear |
| 2/1/24 | 2609003843 | Washer |
| 2/1/24 | 2609003843 | Washer |
| 2/1/25 | 2609003844 | Drive Plate |
| 2/1/25 | 2609003844 | Drive Plate |
| 2/1/26 | 2609003845 | Bolt |
| 2/1/26 | 2609003845 | Bolt |
| 2/1/27 | 2609003846 | Planetary-Gear Carrier |
| 2/1/27 | 2609003846 | Planetary-Gear Carrier |
| 2/1/28 | 2609003847 | Pinion |
| 2/1/28 | 2609003847 | Pinion |
| 2/1/29 | 2609003848 | Needle-Roller Bearing |
| 2/1/29 | 2609003848 | Needle-Roller Bearing |
| 2/1/3 | 2609003824 | Screw |
| 2/1/3 | 2609003824 | Screw |
| 2/1/30 | 2609003849 | Planet Gear |
| 2/1/30 | 2609003849 | Planet Gear |
| 2/1/31 | 2609003850 | Spring retaining ring |
| 2/1/31 | 2609003850 | Spring retaining ring |
| 2/1/36 | 2609003854 | Fan |
| 2/1/36 | 2609003854 | Fan |
| 2/1/37 | 2609003855 | Spring retaining ring |
| 2/1/37 | 2609003855 | Spring retaining ring |
| 2/1/38 | 2609002792 | Clamping Piece |
| 2/1/38 | 2609002792 | Clamping Piece |
| 2/1/39 | 2609007667 | Motor Capacitor |
| 2/1/39 | 2609007667 | Motor Capacitor |
| 2/1/4 | 2609003825 | Spring Washer |
| 2/1/4 | 2609003825 | Spring Washer |
| 2/1/73 | 2609002763 | Turbine cutter |
| 2/1/73 | 2609002763 | Turbine cutter |
| 2/1/78 | 2910400244 | Hex Socket Head Cap Screw |
| 2/1/78 | 2910400244 | Hex Socket Head Cap Screw |
| 2/1/8 | 2609003828 | Connecting Plate |
| 2/1/8 | 2609003828 | Connecting Plate |
| 2/1/81 | 2609003315 | Locking washer |
| 2/1/81 | 2609003315 | Locking washer |
| 2/1/9 | 2609003829 | Plate |
| 2/1/9 | 2609003829 | Plate |
| 2/2/6 | 2609004197 | O-Ring |
| 2/2/6 | 2609004197 | O-Ring |
| 21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 21 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 22 | 2609002554 | Housing |
| 22 | 2609002554 | Housing |
| 23 | 2609002555 | Upper Housing |
| 23 | 2609002555 | Upper Housing |
| 24 | 2609004513 | Rear Housing Section |
| 24 | 2609004513 | Rear Housing Section |
| 25 | 2609002557 | Flap |
| 25 | 2609002557 | Flap |
| 26 | 2609003144 | Spring |
| 26 | 2609003144 | Spring |
| 27 | 2609002795 | Bolt |
| 27 | 2609002795 | Bolt |
| 29 | 2609002791 | Bolt |
| 29 | 2609002791 | Bolt |
| 31 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 31 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 32 | 2609004515 | Knob |
| 32 | 2609004515 | Knob |
| 35 | 2609002804 | Knob |
| 35 | 2609002804 | Knob |
| 36 | 2609002805 | Terminal Lug |
| 36 | 2609002805 | Terminal Lug |
| 37 | 2609002806 | Bolt |
| 37 | 2609002806 | Bolt |
| 38 | 2609003539 | Adjusting Screw |
| 38 | 2609003539 | Adjusting Screw |
| 39 | 2609002754 | Ring |
| 39 | 2609002754 | Ring |
| 40 | 2609003140 | Holder |
| 40 | 2609003140 | Holder |
| 41 | 2609003399 | Cap |
| 41 | 2609003399 | Cap |
| 42 | 2609003400 | Cap |
| 42 | 2609003400 | Cap |
| 43 | 2609003401 | Cap |
| 43 | 2609003401 | Cap |
| 44 | 2609002755 | Rubber Pad |
| 44 | 2609002755 | Rubber Pad |
| 45 | 2609003076 | Cover Plate |
| 45 | 2609003076 | Cover Plate |
| 46 | 2603413035 | Oval-Head Screw M4X8 |
| 46 | 2603413035 | Oval-Head Screw M4X8 |
| 47 | 2609004519 | Socket housing |
| 47 | 2609004519 | Socket housing |
| 48 | 2609005130 | Relay |
| 48 | 2609005130 | Relay |
| 49 | 2609003540 | Reed switch |
| 49 | 2609003540 | Reed switch |
| 5 | 2609003149 | Cable Set EU |
| 5 | 2609003149 | Cable Set EU |
| 5/1 | 2609003515 | Cable Set UK |
| 5/1 | 2609003516 | Cable Set Ch |
| 5/2 | 2609003145 | Switch |
| 5/2 | 2609003145 | Switch |
| 5/3 | 2609003517 | Switch Rocker |
| 5/3 | 2609003517 | Switch Rocker |
| 50 | 2609004603 | Rocker Rod |
| 50 | 2609004603 | Rocker Rod |
| 51 | 2609002846 | Bolt |
| 51 | 2609002846 | Bolt |
| 52 | 2609002847 | Spring |
| 52 | 2609002847 | Spring |
| 53 | 2609002793 | Slotted Spring Pin |
| 53 | 2609002793 | Slotted Spring Pin |
| 54 | 1600A020TT | Slotted Spring Pin |
| 54 | 1600A020TT | Slotted Spring Pin |
| 55 | 2609004243 | Supporting Frame |
| 55 | 2609004243 | Supporting Frame |
| 56 | 2609003267 | Holding Pin |
| 56 | 2609003267 | Holding Pin |
| 57 | 2609003268 | Holding Pin |
| 57 | 2609003268 | Holding Pin |
| 58 | 2609003551 | Nut |
| 58 | 2609003551 | Nut |
| 59 | 2609003159 | Wheel |
| 59 | 2609003159 | Wheel |
| 60 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 60 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 61 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 61 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 62 | F016L64669 | Retaining Pin |
| 62 | F016L64669 | Retaining Pin |
| 63 | 2609003552 | Thread-forming tap. Screw 4,8X22 |
| 63 | 2609003552 | Thread-forming tap. Screw 4,8X22 |
| 65 | 2609006904 | Catcher Container |
| 65 | 2609006904 | Catcher Container |
| 66 | 2609002752 | Pusher |
| 66 | 2609002752 | Pusher |
| 68 | 2609003622 | Handle |
| 68 | 2609003622 | Handle |
| 69 | 2609002685 | Company Logo AXT 25 D |
| 69 | 2609002685 | Company Logo AXT 25 D |
| 70 | 2609002562 | Hopper |
| 70 | 2609002562 | Hopper |
| 71 | 2609002564 | Chute |
| 71 | 2609002564 | Chute |
| 72 | 2609002799 | Magnet |
| 72 | 2609002799 | Magnet |
| 76 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 76 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 77 | 2609003683 | Compression Spring |
| 77 | 2609003683 | Compression Spring |
| 80 | 2610386712 | Washer DIN 9021-6,4X18X1,6 |
| 80 | 2610386712 | Washer DIN 9021-6,4X18X1,6 |
| 801 | 2609004913 | Bearing plate |
| 801 | 2609004913 | Bearing plate |
| 802 | 2609004911 | Motor |
| 802 | 2609004911 | Motor |
| 804 | 1600A00H67 | Electronic Assembly |
| 804 | 1600A00H6B | Electronic Assembly |
| 804 | 1600A00H67 | Electronic Assembly |
| 805 | 2609004916 | Guide-Plate |
| 805 | 2609004916 | Guide-Plate |
| 807 | 2609003827 | Screw |
| 807 | 2609003827 | Screw |
| 808 | 2609003156 | Nameplate |
| 808 | 2609003521 | Nameplate |
| 808 | 2609003522 | Nameplate |
| 808 | 2609003157 | Nameplate |
| 816 | 2609004989 | Split Pin |
| 816 | 2609004989 | Split Pin |
| 820 | 2609006274 | Shaft |
| 820 | 2609006274 | Shaft |
| 9 | 2609003152 | Manufacturer's nameplate AXT 23 Tc |
| 9 | 2609003153 | Manufacturer's nameplate AXT 25 Tc |
