Bosch AXT 1800 HP

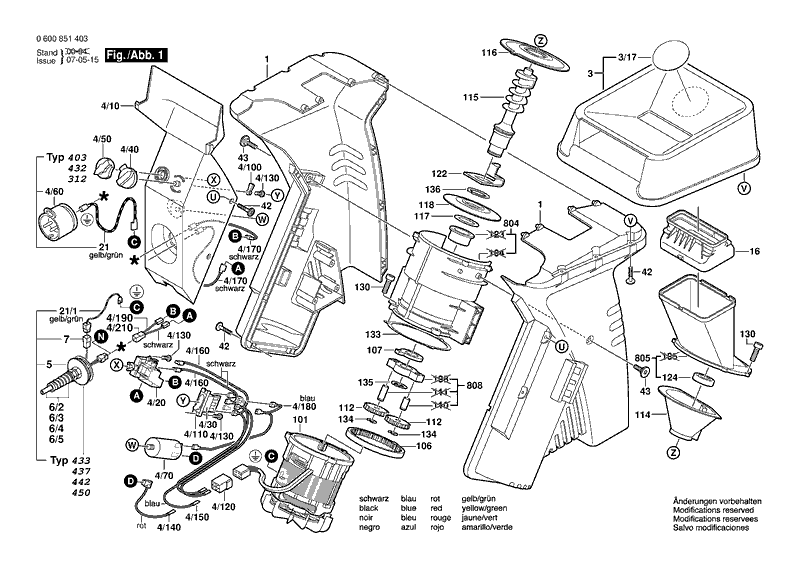

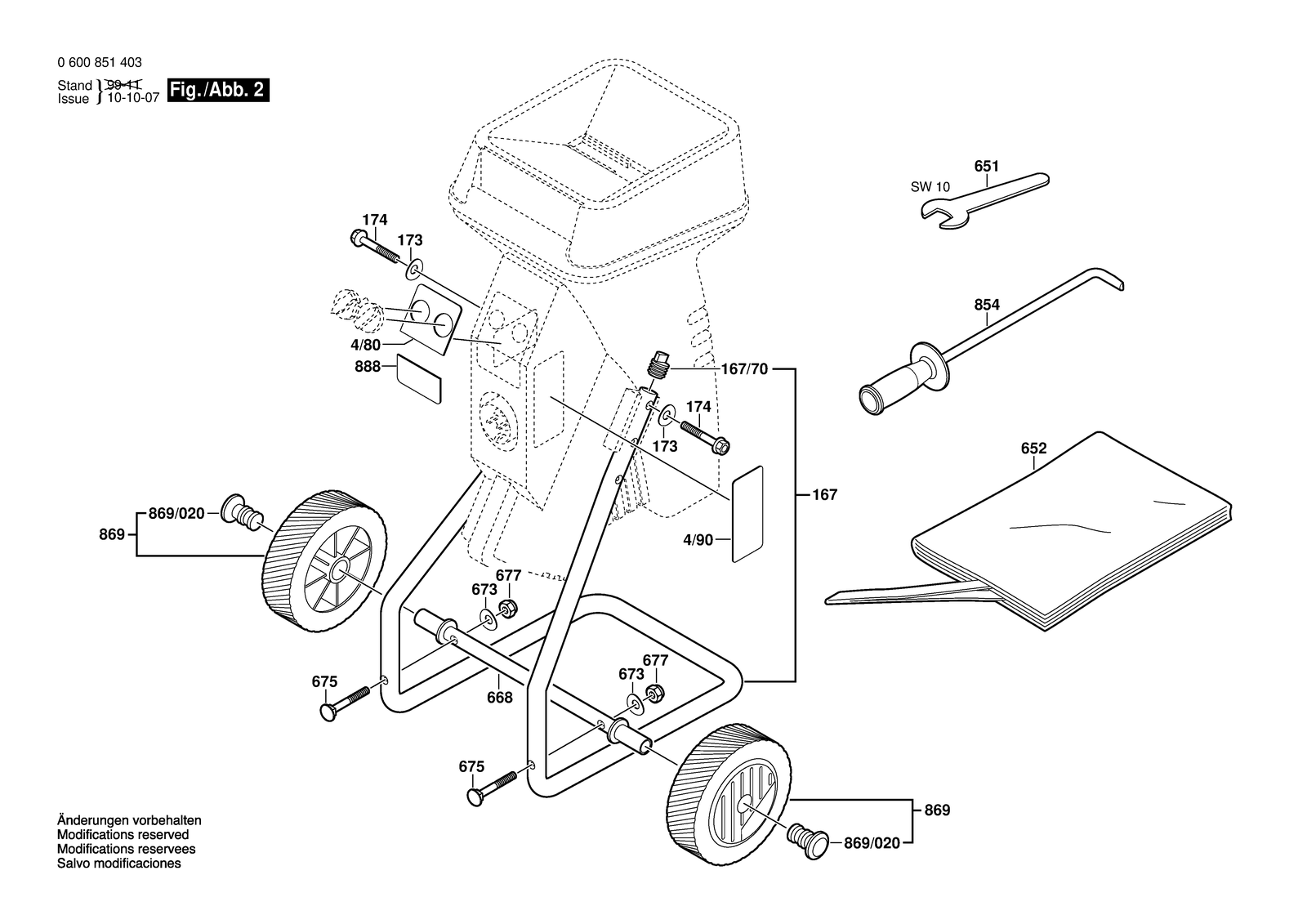

Bosch AXT 1800 HP chopper: exploded parts diagram, 2 sheets, 128 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AXT 1800 HP: 128 positions on 2 sheets
Bosch AXT 1800 HP parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605190106 | Housing Section Green |
| 1 | 1605190106 | Housing Section Green |
| 101 | 1607220041 | Motor 230V |
| 101 | 1607220041 | Motor 230V |
| 106 | 1606334007 | Ring Gear |
| 106 | 1606334007 | Ring Gear |
| 107 | 1606490037 | Carrier |
| 107 | 1606490037 | Carrier |
| 112 | 1606318010 | Toothed Gear Z=34 |
| 112 | 1606318010 | Toothed Gear Z=34 |
| 114 | 1600590007 | Funnel |
| 114 | 1600590007 | Funnel |
| 115 | 1606122008 | Helix |
| 115 | 1606122008 | Helix |
| 116 | 1600590008 | Ferrule |
| 116 | 1600590008 | Ferrule |
| 117 | 1600102021 | Friction Washer |
| 117 | 1600102021 | Friction Washer |
| 118 | 1600590009 | Ejector |
| 118 | 1600590009 | Ejector |
| 122 | 1601329030 | Scraper |
| 122 | 1601329030 | Scraper |
| 124 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 124 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 130 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 130 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 133 | 1600290035 | Seal |
| 133 | 1600290035 | Seal |
| 134 | 2916080013 | Locking washer DIN 6799-10-FST |
| 134 | 2916080013 | Locking washer DIN 6799-10-FST |
| 135 | 2916650016 | Spring retaining ring 28X1,5 DIN 471 |
| 135 | 2916650016 | Spring retaining ring 28X1,5 DIN 471 |
| 136 | 2916651021 | Spring retaining ring DIN 471-42X1,75-FST-ZNC-B |
| 136 | 2916651021 | Spring retaining ring DIN 471-42X1,75-FST-ZNC-B |
| 16 | 1605190055 | Insert Black |
| 16 | 1605190055 | Insert Black |
| 167 | 1600795013 | Supporting Frame |
| 167 | 1600795013 | Supporting Frame |
| 167/70 | 1600591030 | Plug |
| 167/70 | 1600591030 | Plug |
| 173 | 1600190030 | Plain Washer |
| 173 | 1600190030 | Plain Washer |
| 174 | 1603435056 | Thread-forming tap. Screw |
| 174 | 1603435056 | Thread-forming tap. Screw |
| 21 | 1604438024 | Connecting Cable Green L=250 MM |
| 21 | 1604438024 | Connecting Cable Green L=250 MM |
| 21/1 | 1604438027 | Connecting Cable Green |
| 3 | 1605190108 | Housing Cover Black |
| 3 | 1605190181 | Housing Cover Black |
| 3/17 | 1601118916 | Sticker |
| 3/17 | 1601118916 | Sticker |
| 4/10 | 1605190109 | Switch Plate |
| 4/10 | 1605190109 | Switch Plate |
| 4/10 | 1605190137 | Switch Plate |
| 4/100 | 1602026071 | Control Lever |
| 4/100 | 1602026071 | Control Lever |
| 4/110 | 1605190125 | Frame |
| 4/110 | 1605190125 | Frame |
| 4/120 | 1605190124 | Connector Housing |
| 4/120 | 1605190124 | Connector Housing |
| 4/130 | 2914211463 | Oval-Head Screw |
| 4/130 | 2914211463 | Oval-Head Screw |
| 4/140 | 1604438019 | Connecting Cable Red L=100 MM |
| 4/140 | 1604438019 | Connecting Cable Red L=100 MM |
| 4/150 | 1604438020 | Connecting Cable Blue L=200/L=100 MM |
| 4/150 | 1604438020 | Connecting Cable Blue L=200/L=100 MM |
| 4/160 | 1604438021 | Connecting Cable Black L=200/L=130 MM |
| 4/160 | 1604438021 | Connecting Cable Black L=200/L=130 MM |
| 4/170 | 1604438022 | Connecting Cable Black L=180 MM |
| 4/170 | 1604438022 | Connecting Cable Black L=180 MM |
| 4/180 | 1604438023 | Connecting Cable Blue L=160/L=100 MM |
| 4/180 | 1604438023 | Connecting Cable Blue L=160/L=100 MM |
| 4/190 | 1604438028 | Connecting Cable Black |
| 4/20 | 1607200216 | On-Off Switch |
| 4/20 | 1607200216 | On-Off Switch |
| 4/210 | 1604485015 | Connector Housing |
| 4/30 | 1607200143 | Switch |
| 4/30 | 1607200143 | Switch |
| 4/40 | 1602026069 | Switch Button |
| 4/40 | 1602026069 | Switch Button |
| 4/50 | 1602026070 | Switch Button |
| 4/50 | 1602026070 | Switch Button |
| 4/60 | 1605190060 | Connection Part |
| 4/60 | 1605190060 | Connection Part |
| 4/60 | 1605190065 | Connection Part |
| 4/70 | 1607328069 | Suppression Filter |
| 4/70 | 1607328048 | Suppression Filter |
| 4/70 | 1607328069 | Suppression Filter |
| 4/80 | 1601118K73 | Manufacturer's nameplate |
| 4/80 | 1601118K73 | Manufacturer's nameplate |
| 4/90 | 1601118A80 | Reference Plate |
| 4/90 | 1601118A80 | Reference Plate |
| 42 | 1603435054 | Thread-forming tap. Screw TORX-T20 |
| 42 | 1603435054 | Thread-forming tap. Screw TORX-T20 |
| 43 | 1603435055 | Thread-forming tap. Screw |
| 43 | 1603435055 | Thread-forming tap. Screw |
| 5 | 1600109012 | Seal |
| 6/2 | 1607000961 | Connection Part |
| 6/3 | 1607000962 | Connection Part |
| 6/4 | 1607000963 | Connection Part |
| 6/5 | 1607000343 | Connection Part |
| 651 | 1607950527 | Single-Head Eng. Wrench SW10 |
| 651 | 1607950527 | Single-Head Eng. Wrench SW10 |
| 652 | 1605411031 | Catcher Container |
| 652 | 1605411031 | Catcher Container |
| 668 | 1607000957 | Axle |
| 668 | 1607000957 | Axle |
| 673 | 1600190030 | Plain Washer |
| 673 | 1600190030 | Plain Washer |
| 675 | 2910281213 | Round-Head Bolt DIN 603 M6X50 |
| 675 | 2910281213 | Round-Head Bolt DIN 603 M6X50 |
| 677 | 2915061004 | Hex Nut DIN 985-M6-8 |
| 677 | 2915061004 | Hex Nut DIN 985-M6-8 |
| 7 | 1604485014 | Insulating Sleeve |
| 804 | 1607000836 | Gear Housing |
| 804 | 1607000836 | Gear Housing |
| 805 | 1607000837 | Bearing Flange |
| 805 | 1607000837 | Bearing Flange |
| 808 | 1607000838 | Planetary-Gear Carrier |
| 808 | 1607000838 | Planetary-Gear Carrier |
| 854 | 1607959008 | Hook |
| 854 | 1607959008 | Hook |
| 869 | 1609351088 | Wheel Ø200 MM |
| 869 | 1609351088 | Wheel Ø200 MM |
| 869/020 | 1609351075 | Plug |
| 869/020 | 1609351075 | Plug |
| 888 | 160111A3H5 | Nameplate |
| 888 | 160111A3H5 | Nameplate |
