Bosch ATS 12-P

Bosch ATS 12-P cordless screw driver: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ATS 12-P: 42 positions on 1 sheet

Bosch ATS 12-P parts list (1 sheet)

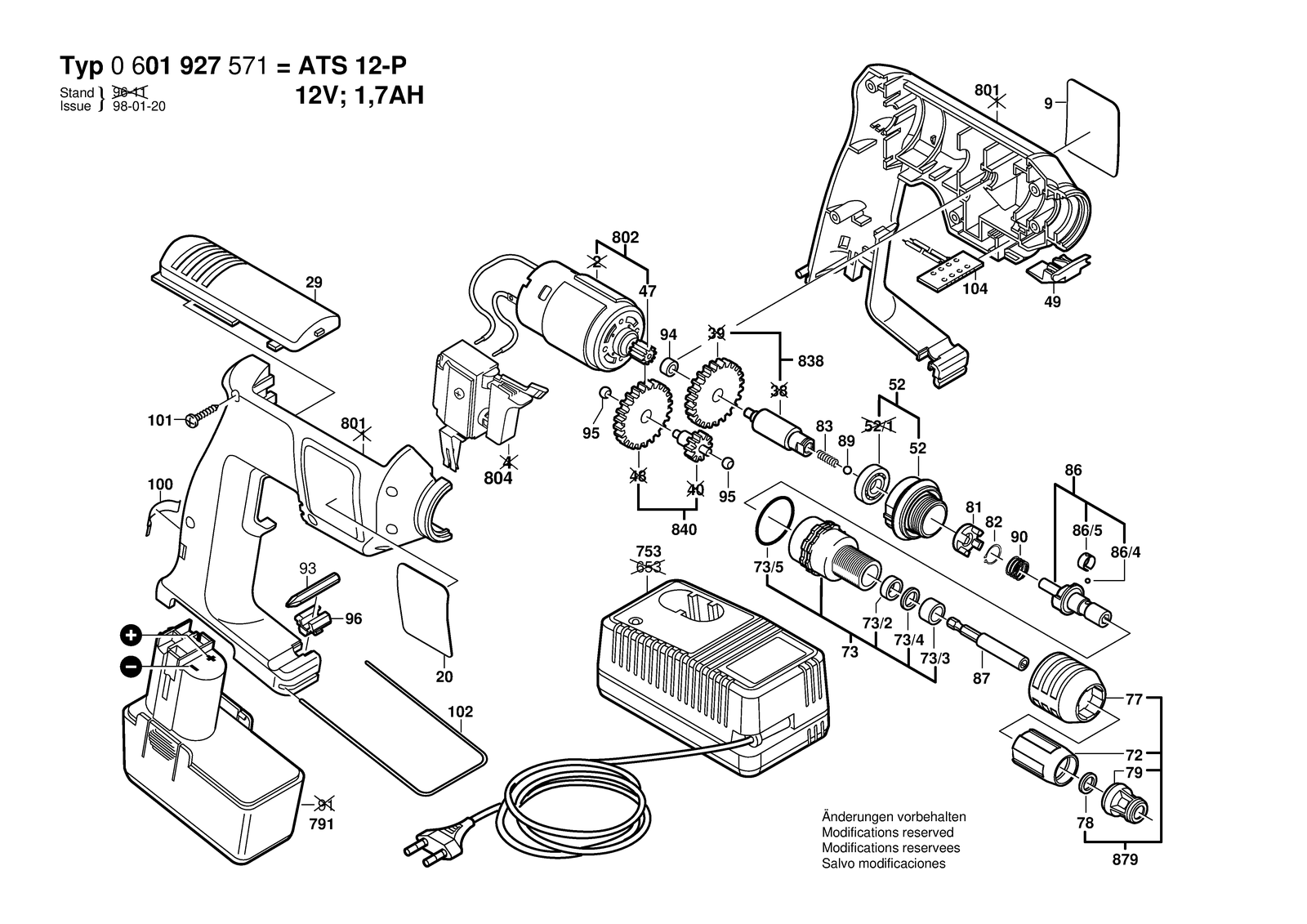

Bosch ATS 12-P parts diagram, sheet 1
No.Part numberPart name
1002601322016Clamp Spring
1012603490022Screw 4X16
1022601329041Retaining Bracket
1042608018004Contact retainer
202601119489Reference Plate Shadow Side
292605510120Insert Piece Black
472606316142Pinion Z=14
492605510117Insert Piece Black
522600499038Guide Sleeve
723600360505Spacer Sleeve Black
732607001241Clutch Housing
73/23600301508Bushing
73/33600301510Bushing
73/43600290503Seal Ring
73/52600210043O-Ring
7532607224273Fast Charger EU 230/4,8-14,4V, 12 Min.
7532607225499Fast Charger EU 230/7,2-14,4V, AL 60-U
773600390502Locking Ring Black
783600290502Seal Ring
793600552501Depth-Gauge
7912607335172Slide-In Accu Package 12V,1,7AH,NICD
8012605104830Housing Section Black
8022607022938DC motor 12V
8042607200392On-Off Switch
813606441500Drive Clutch
823600200516Retaining ring
833604613507Spring
8382606309929Jack Shaft
8402606308922Toothed Shaft
862606445012Clutch Shaft
86/43600034504Ball Support
86/53600118502Spring retaining ring
873603008500Toolholder 1/4"
8792610906321Depth-Gauge
8793600552509Depth-Gauge
891903230011Ball DIN 5401-6 G28
92601119488Manufacturer's nameplate Sunny Side
903604613506Spring
932607000366Screwdriver Bit
942600301011Sintered-Metal Bushing
952600302002Sintered-Metal Bushing
962608040131Support
