Bosch ASW 65-1/2"

Bosch ASW 65-1/2" wheeled hose reel cart: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASW 65-1/2": 9 positions on 1 sheet

Bosch ASW 65-1/2" parts list (1 sheet)

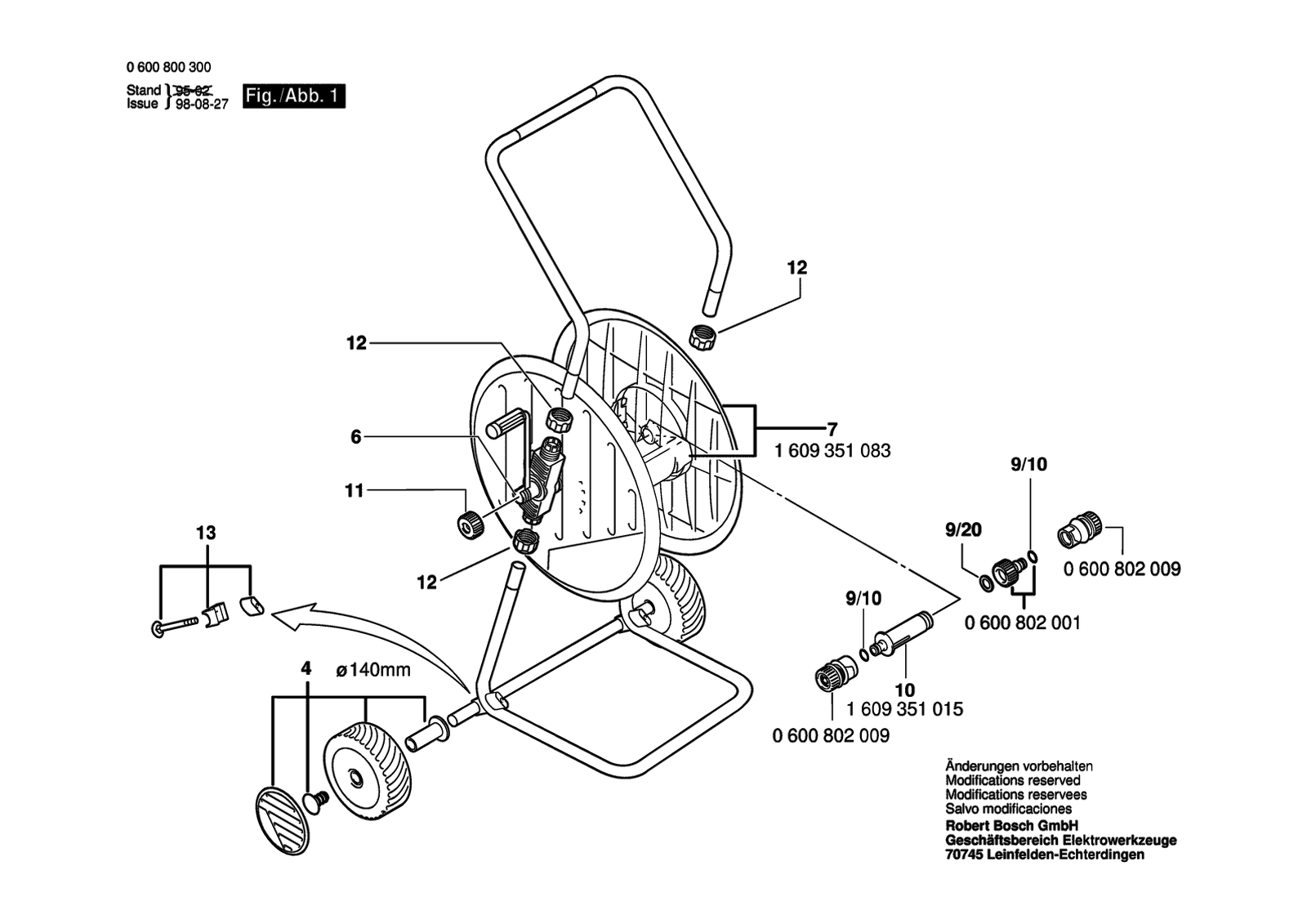

Bosch ASW 65-1/2" parts diagram, sheet 1
No.Part numberPart name
101609351015Hollow Axle
111609351016Union Nut
121609351027Union Nut
131609351018Parts Set M6X55 MM
41609351022Wheel Ø 140 MM
61609351082Axle
71609351083Drum
9/101609351000O-Ring 11X2,5 MM
9/201609351029Gasket Ø15XØ24X4,5=3/4"
