Bosch ASS 14-1/4"

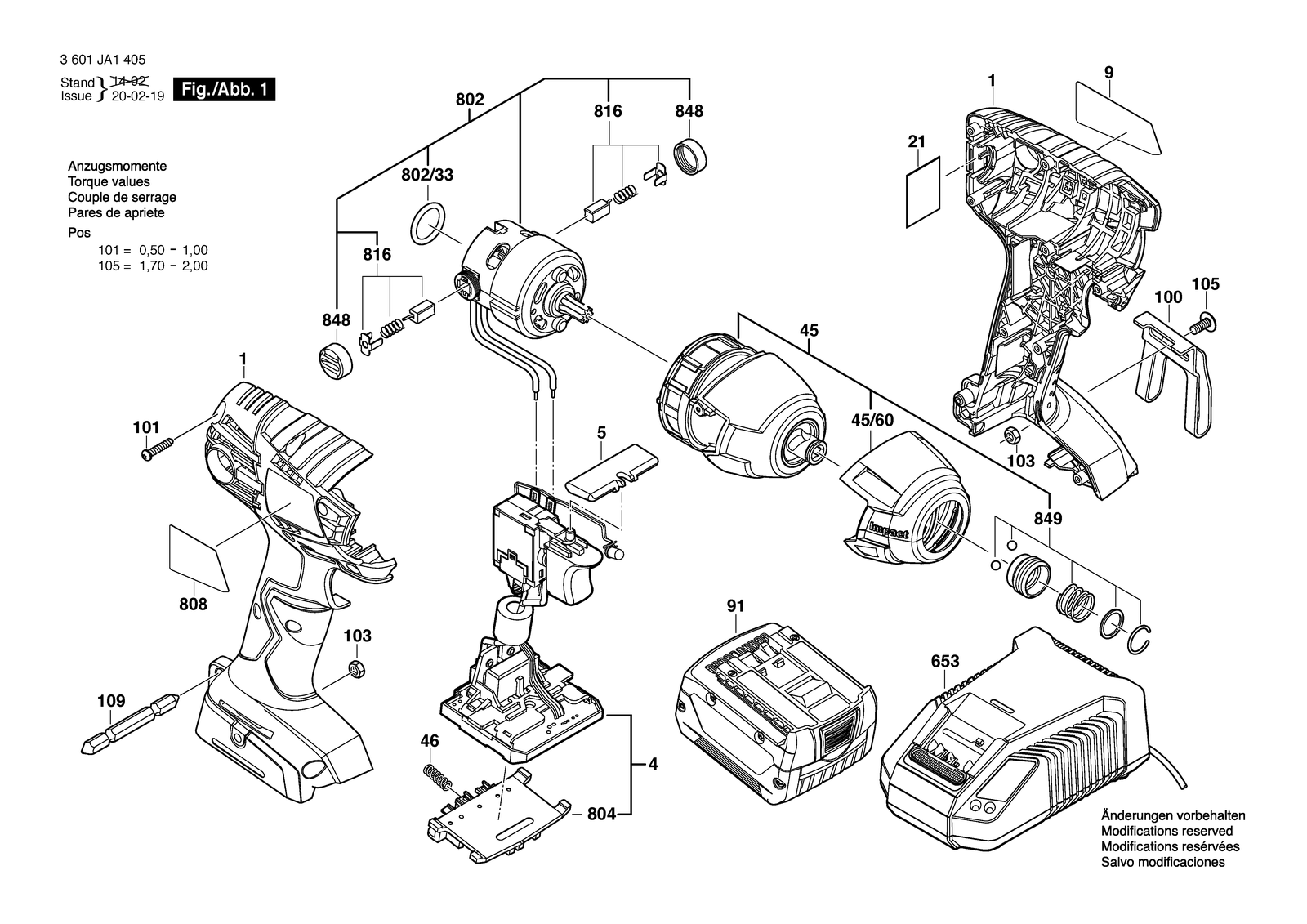

Bosch ASS 14-1/4" impact wrench: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASS 14-1/4": 22 positions on 1 sheet
Bosch ASS 14-1/4" parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101150 | Housing |
| 100 | 2609110833 | Clip |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 109 | 2609110343 | Screwdriver Blade |
| 21 | 2609111485 | Wire Mesh |
| 4 | 1607233479 | Electronics Module |
| 45 | 2609199694 | Gear Box |
| 45/60 | 2609170128 | Cap |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 653 | 2607225347 | Fast Charger EU 230/10,8-18V, 1H, AL 30-CV-LI |
| 802 | 2609199275 | DC motor 14,4V |
| 802/33 | 2609170104 | O-Ring |
| 804 | 1609280474 | Contact retainer |
| 808 | 2609133337 | Nameplate |
| 816 | 2609199169 | Carbon-Brush Set |
| 848 | 2609199190 | Brush-Cover |
| 849 | 2609199223 | Bit holder |
| 9 | 2609133335 | Manufacturer's nameplate Würth |
| 91 | 2607336689 | Slide-In Accu Package 14,4V, 2,6 Ah, Li, Ms |
