Bosch ASM 32 F

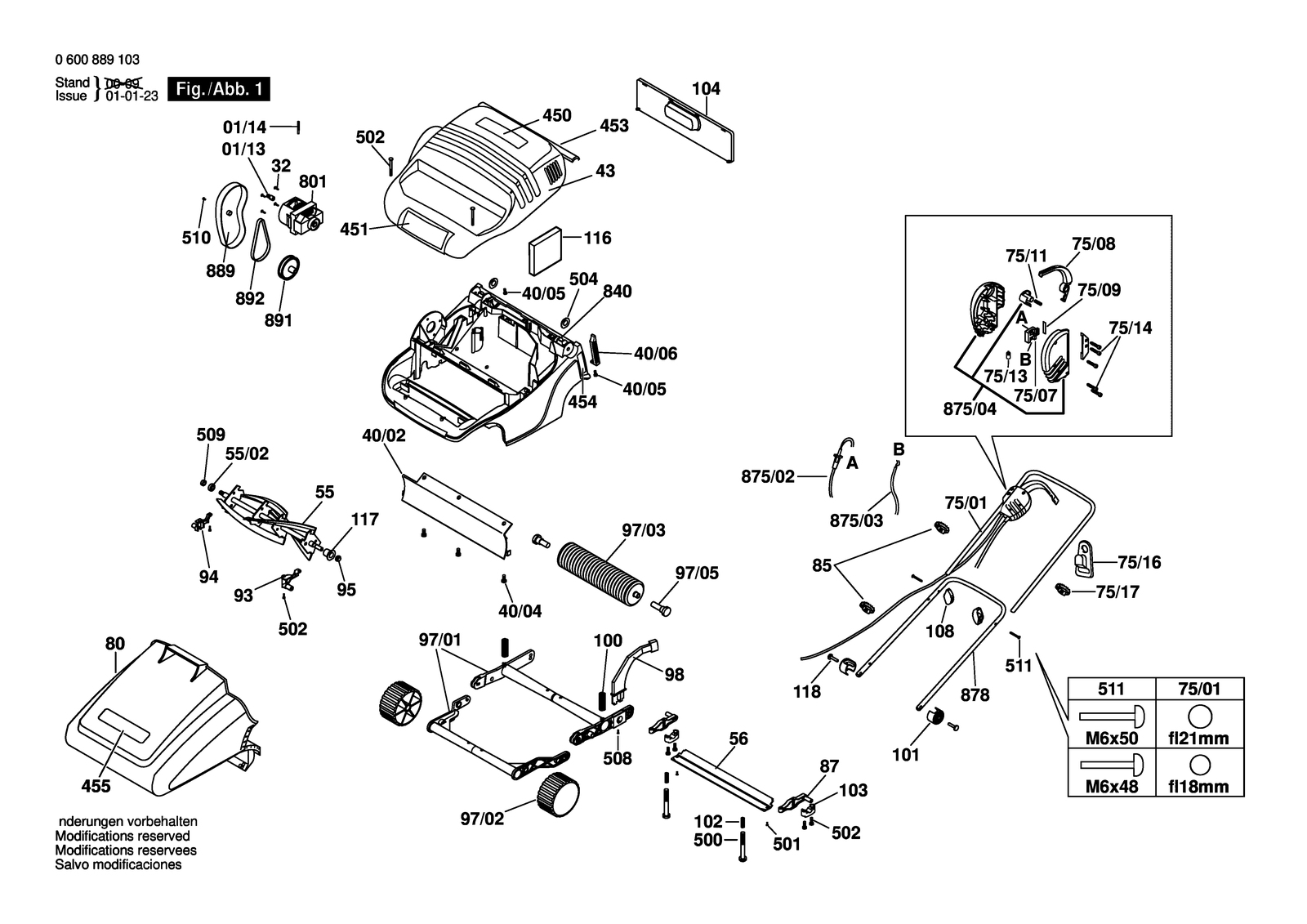

Bosch ASM 32 F lawnmower: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASM 32 F: 66 positions on 1 sheet
Bosch ASM 32 F parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 01/13 | F016L62280 | Pinion |
| 01/14 | F016T44492 | Coiled Spring Pin |
| 100 | F016L62298 | Compression Spring |
| 101 | F016L62285 | Pivot |
| 102 | F016L62284 | Compression Spring |
| 103 | F016L62283 | Clamping Block |
| 104 | F016L62318 | Sealing cap |
| 108 | F016L66136 | Wing Nut |
| 116 | F016L62487 | Air Filter |
| 117 | F016L62488 | Retaining Plate |
| 118 | F016L64240 | Pivot Pin |
| 32 | F016L37433 | Self-Cutting Screw |
| 40/02 | F016L62866 | Deflector Plate |
| 40/04 | F016L66420 | Self-Cutting Screw 3X8 MM |
| 40/05 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 40/06 | F016L63327 | Insert |
| 43 | F016L62943 | Protection cover |
| 450 | F016L62799 | Sticker |
| 451 | F016L62947 | Sticker ASM 32 F |
| 453 | F016L61033 | Reference Plate |
| 454 | F016L63314 | Sticker |
| 500 | F016L62288 | Bolt |
| 501 | F016L36542 | Screw M5X8 Csk Hd. |
| 502 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49100 | Set ring 12 MM T40 |
| 508 | F016L37433 | Self-Cutting Screw |
| 509 | F016L62388 | Nut |
| 510 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 511 | F016L59277 | Bolt M6X50 |
| 511 | F016T49623 | Trunnion M6 X48 |
| 55 | F016L62486 | Cutter Cylinder |
| 55/02 | 1900905232 | Groove ball bearing 6200-2Z DIN 625 |
| 56 | F016L63318 | Lower Blade |
| 75/01 | F016L62301 | Handle Ø 21 MM |
| 75/01 | F016L62472 | Handle Ø18 MM |
| 75/07 | F016F05717 | On-Off Switch |
| 75/08 | F016L65676 | Positioning Lever Black |
| 75/09 | F016T49845 | Leaf Spring |
| 75/11 | F016T49226 | Compression Spring |
| 75/13 | F016L36952 | Condenser |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/17 | F016T56393 | Cable Clip |
| 80 | F016L62945 | Collection box |
| 801 | F016103805 | Motor |
| 840 | F016102380 | Chassis |
| 85 | F016L11580 | Cable Cleat |
| 87 | F016L62272 | Blade Holder |
| 875/02 | F016102381 | Power supply cord |
| 875/02 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 875/02 | F016104086 | Power supply cord EU |
| 875/02 | F016104359 | Power supply cord Ch |
| 875/03 | F016102355 | Connecting Cable |
| 875/04 | F016103136 | Assembly Kit |
| 878 | F016102330 | Handle |
| 889 | F016102356 | Belt Cover |
| 891 | F016102357 | Pulley |
| 892 | F016102358 | Drive Belt |
| 93 | F016L62278 | Bearing Holder L/h |
| 94 | F016L62279 | Bearing Holder R/h |
| 95 | F016T40513 | Bushing |
| 97/01 | F016102751 | Linkage |
| 97/02 | F016L62270 | Wheel |
| 97/03 | F016L62936 | Roller |
| 97/05 | F016L63341 | Stub Shaft |
| 98 | F016L62292 | Handle |
