Bosch ASM 30
Bosch ASM 30 lawnmower: exploded parts diagram, 2 sheets, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASM 30: 81 positions on 2 sheets

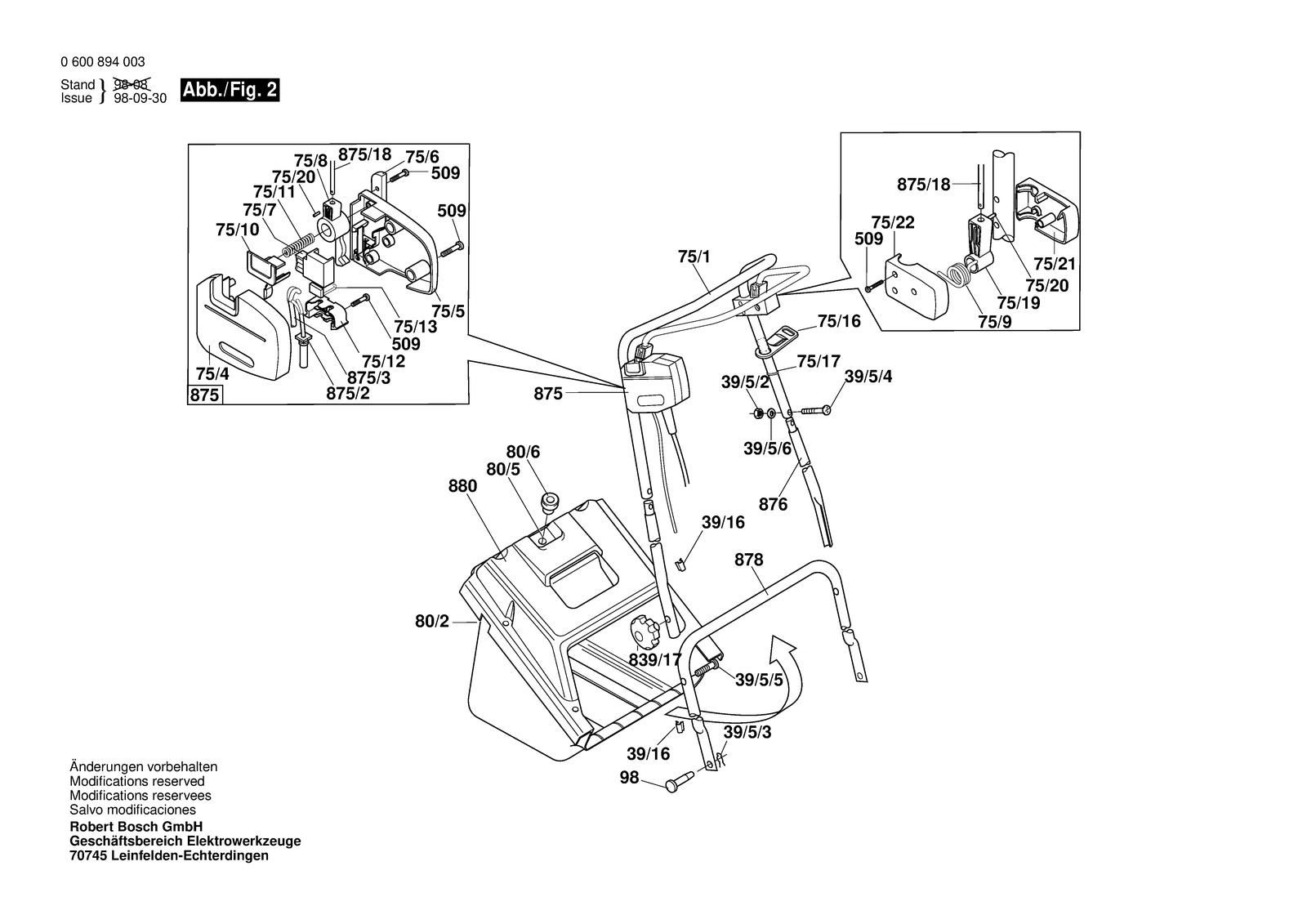

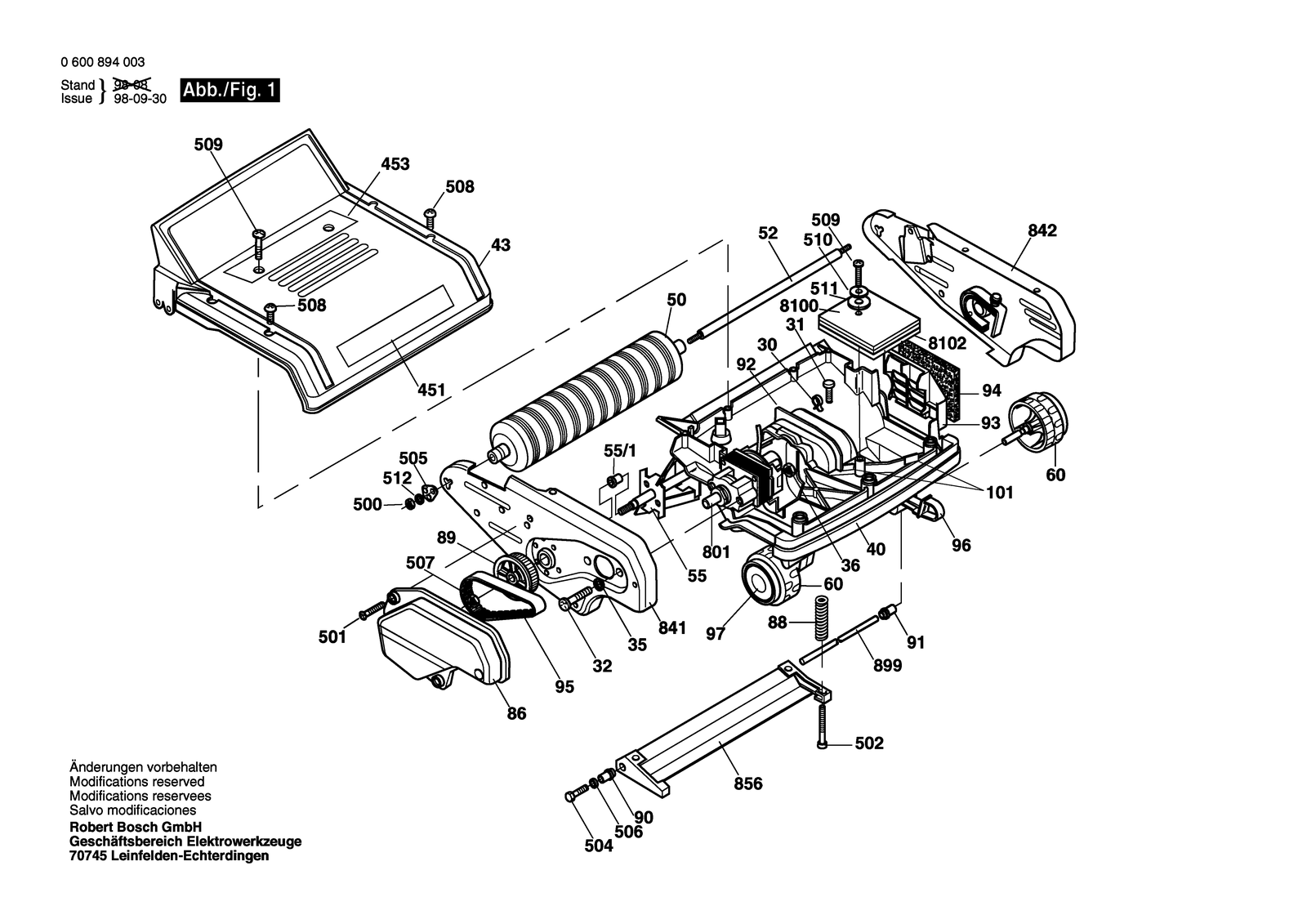

Bosch ASM 30 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | F016L61548 | Seal Strip |
| 30 | F016T46305 | Cable Cleat |
| 31 | F016L37433 | Self-Cutting Screw |
| 32 | F016T40588 | Stud bolt 5/16 Unc X 17/32 |
| 35 | F016T48531 | Plain Washer 8,5 MM |
| 36 | F016T40589 | Hex Nut |
| 39/16 | F016L59236 | Cable Clip |
| 39/5/2 | F016L35329 | Nut M6 |
| 39/5/3 | F016T45870 | Pickup Clip |
| 39/5/4 | F016T46339 | Trunnion |
| 39/5/5 | F016L37879 | Retaining Pin M 6X40 |
| 39/5/6 | F016T48727 | Plain Washer |
| 40 | F016L61201 | Motor Hood |
| 43 | F016L61202 | Protection cover |
| 451 | F016L61228 | Sticker |
| 453 | F016L61033 | Reference Plate |
| 50 | F016T43911 | Roller |
| 500 | F016L35329 | Nut M6 |
| 501 | F016L36179 | Screw |
| 502 | F016T43163 | Screw M 6 |
| 504 | F016T48048 | Hex Screw M8 |
| 505 | F016T48053 | Washer |
| 506 | F016T48058 | Plain Washer |
| 507 | F016L18048 | Nut |
| 508 | F016T48977 | Tapping Screw |
| 509 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 510 | F016T48428 | Plain Washer M5 |
| 511 | F016L57338 | Plain Washer |
| 512 | F016T48727 | Plain Washer |
| 52 | F016T48782 | Guide Piece |
| 55 | F016T49214 | Cylinder |
| 55/1 | F016T40530 | Bushing |
| 60 | F016T48903 | Wheel |
| 75/1 | F016L61236 | Handle |
| 75/10 | F016T49223 | Knob |
| 75/11 | F016T49226 | Compression Spring |
| 75/12 | F016T49636 | Cable Cleat |
| 75/13 | F016L36952 | Condenser |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/17 | F016T56393 | Cable Clip |
| 75/19 | F016T49634 | Holder |
| 75/20 | F016T56145 | Straight Pin |
| 75/21 | F016T49629 | Holder |
| 75/22 | F016T49628 | Holder |
| 75/4 | F016L36449 | Switch Cover |
| 75/5 | F016T49637 | Switch Housing |
| 75/6 | F016T49630 | Clamping Piece |
| 75/7 | F016T49427 | On-Off Switch |
| 75/8 | F016T49627 | Limit Switch |
| 75/9 | F016T49633 | Spiral Spring |
| 80/2 | F016T46387 | Compactor |
| 80/5 | F016T48063 | Cord |
| 80/6 | F016T48901 | Sealing cap |
| 801 | F016L80623 | Motor 230V |
| 8100 | F016102118 | Balance Weights |
| 8102 | F016102119 | Balance Weights |
| 839/17 | F016L66136 | Wing Nut |
| 841 | F016102109 | Side Plate |
| 842 | F016102110 | Side Plate |
| 856 | F016102111 | Lower Blade |
| 86 | F016L61227 | Belt Cover |
| 875 | F016T49637 | Switch Housing |
| 875/18 | F016102114 | Control Bar |
| 875/2 | F016104086 | Power supply cord EU |
| 875/2 | F016104359 | Power supply cord Ch |
| 875/3 | F016102113 | Connecting Cable |
| 876 | F016102115 | Lengthening Piece |
| 878 | F016102116 | Handle |
| 88 | F016L61461 | Compression Spring |
| 880 | F016102117 | Catcher Container |
| 89 | F016T44491 | Toothed Belt Wheel |
| 899 | F016T45591 | Axle |
| 90 | F016T45585 | Threaded Bushing |
| 91 | F016T45586 | Parts Set |
| 92 | F016T46665 | Cover |
| 93 | F016T46724 | Holder |
| 94 | F016T46774 | Filter |
| 95 | F016T41945 | Drive Belt |
| 96 | F016L61234 | Adjusting Part |
| 97 | F016T48875 | Bearing Black |
| 98 | F016T48910 | Retaining Pin |
