Bosch ASG 52 ACCU

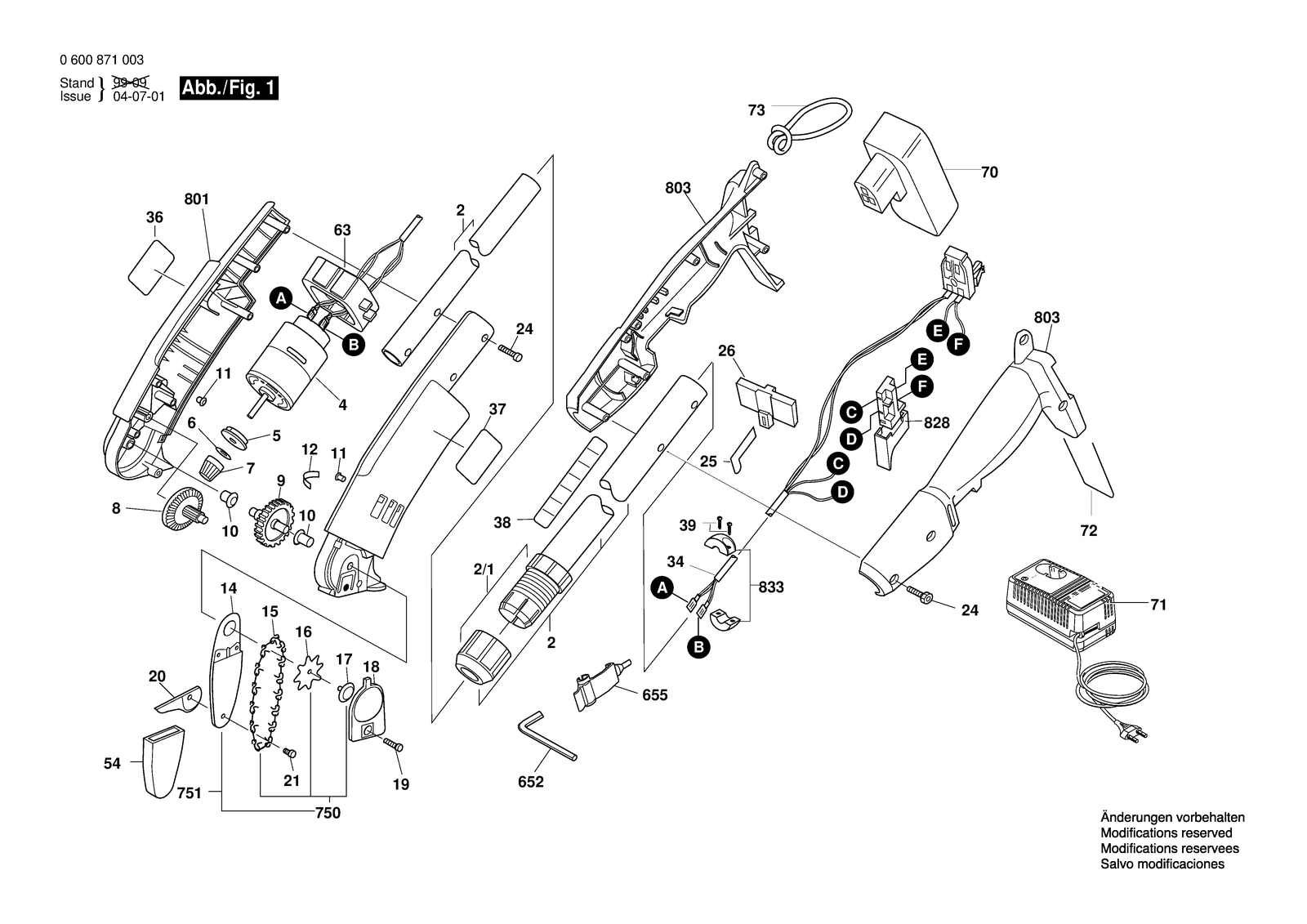

Bosch ASG 52 ACCU tree pruner: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASG 52 ACCU: 84 positions on 1 sheet
Bosch ASG 52 ACCU parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1609203552 | Plain bearing |
| 10 | 1609203552 | Plain bearing |
| 11 | 1609203553 | Plain bearing |
| 11 | 1609203553 | Plain bearing |
| 12 | 1609203554 | Leaf Spring |
| 12 | 1609203554 | Leaf Spring |
| 14 | 1609203556 | Guide Rail |
| 14 | 1609203556 | Guide Rail |
| 15 | 1609203557 | Saw Chain |
| 15 | 1609203557 | Saw Chain |
| 16 | 1609203558 | Chain Pinion Z=8 |
| 16 | 1609203558 | Chain Pinion Z=8 |
| 17 | 1609203559 | Plug |
| 17 | 1609203559 | Plug |
| 18 | F016L61536 | Guide Rail |
| 18 | F016L61536 | Guide Rail |
| 19 | 1609203561 | Straining Screw |
| 19 | 1609203561 | Straining Screw |
| 2 | 1609203543 | Telescope Pipe |
| 2 | 1609203543 | Telescope Pipe |
| 2/1 | 1609203544 | Union Nut |
| 2/1 | 1609203544 | Union Nut |
| 20 | 1609203562 | Stop Plate |
| 20 | 1609203562 | Stop Plate |
| 21 | 1609203563 | Hex Socket Head Cap Screw |
| 21 | 1609203563 | Hex Socket Head Cap Screw |
| 24 | 1609203565 | Tapping Screw Ø3,5X16 MM |
| 24 | 1609203565 | Tapping Screw Ø3,5X16 MM |
| 25 | F016T49845 | Leaf Spring |
| 25 | F016T49845 | Leaf Spring |
| 26 | F016L61502 | Push-Button |
| 26 | F016L61502 | Push-Button |
| 34 | F016L61522 | Connecting Cable |
| 34 | F016L61522 | Connecting Cable |
| 36 | F016L61418 | Nameplate |
| 36 | F016L61419 | Nameplate |
| 36 | F016L61418 | Nameplate |
| 37 | F016L61505 | Sticker |
| 37 | F016L61848 | Sticker |
| 38 | F016L61506 | Reference Plate |
| 38 | F016L61506 | Reference Plate |
| 39 | 1609203602 | Tapping Screw 3.5X12 MM |
| 39 | 1609203602 | Tapping Screw 3.5X12 MM |
| 4 | F016L61332 | DC motor 12V |
| 4 | F016L61332 | DC motor 12V |
| 5 | F016L61330 | Plain bearing |
| 5 | F016L61330 | Plain bearing |
| 54 | 1609203539 | Chain Guard |
| 54 | 1609203539 | Chain Guard |
| 6 | 1609203548 | Friction Washer |
| 6 | 1609203548 | Friction Washer |
| 63 | F016L61513 | Spacer |
| 63 | F016L61513 | Spacer |
| 652 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 652 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 655 | F016L61504 | Plug Gauge |
| 655 | F016L61504 | Plug Gauge |
| 7 | F016L61331 | Bevel Gear |
| 7 | F016L61331 | Bevel Gear |
| 70 | 2607335039 | Slide-In Accu Package 12V, 1,7AH, Nicd |
| 70 | 2607335039 | Slide-In Accu Package 12V, 1,7AH, Nicd |
| 71 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 71 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 71 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 72 | 2601329041 | Retaining Bracket |
| 72 | 2601329041 | Retaining Bracket |
| 73 | F016L61521 | Strap |
| 73 | F016L61521 | Strap |
| 750 | 1607031144 | Saw Chain |
| 750 | 1607031144 | Saw Chain |
| 751 | 2609390297 | Parts Set |
| 751 | 2609390297 | Parts Set |
| 8 | 1609203550 | Crown Gear Z=13/60 |
| 8 | 1609203550 | Crown Gear Z=13/60 |
| 801 | 1609203542 | Motor Housing Green |
| 801 | F016102203 | Housing Set |
| 803 | F016102087 | Handle |
| 803 | F016102204 | Handle |
| 828 | F016102133 | Parts Set |
| 828 | F016102133 | Parts Set |
| 833 | 1609203572 | Cable Clip |
| 833 | 1609203572 | Cable Clip |
| 9 | 1609203551 | Drive Wheel Z=48 |
| 9 | 1609203551 | Drive Wheel Z=48 |
