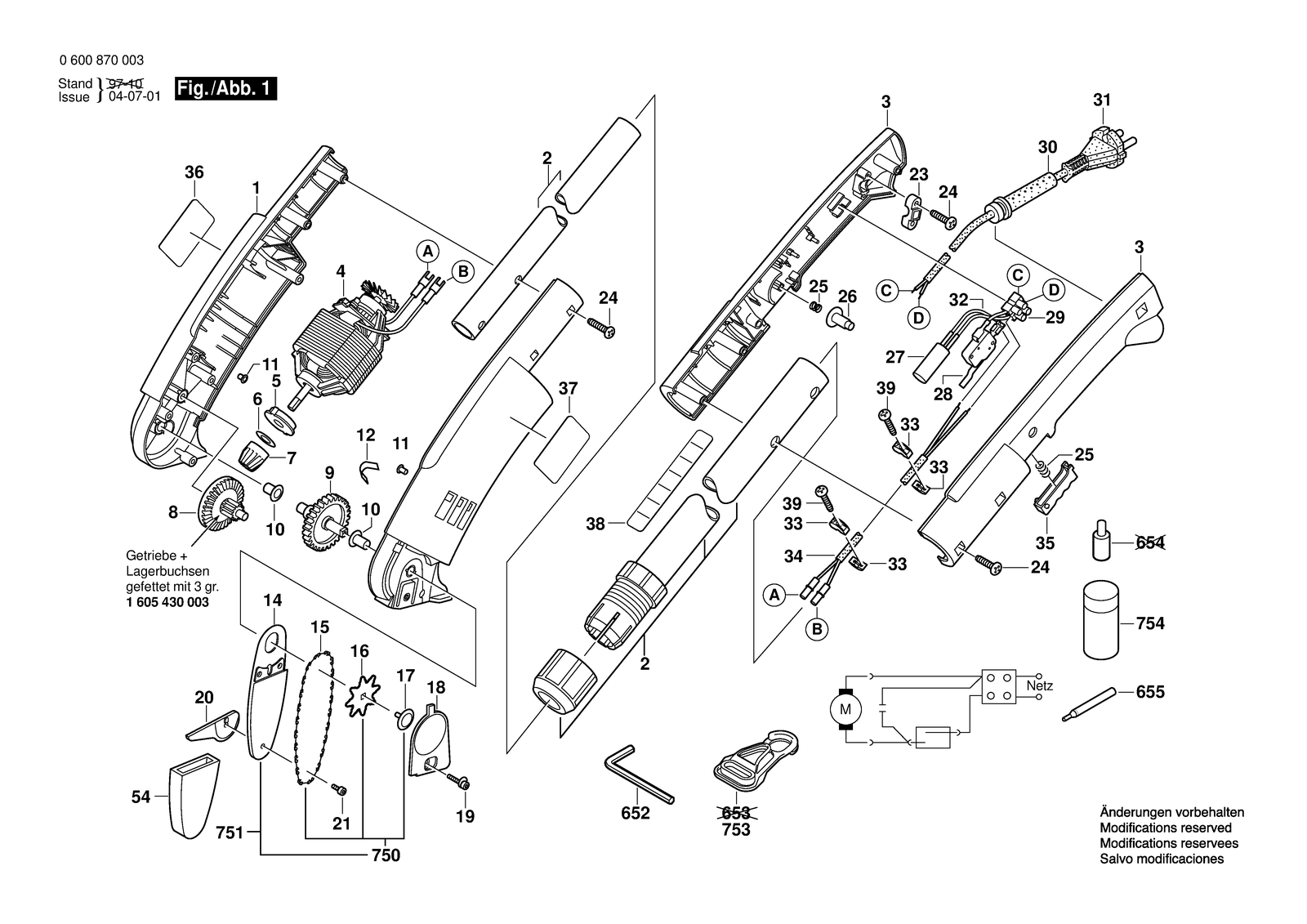

Bosch ASG 52 tree pruner: exploded parts diagram, 1 sheet, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ASG 52: 93 positions on 1 sheet
Bosch ASG 52 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203542 | Motor Housing Green |
| 1 | F016102203 | Housing Set |
| 10 | 1609203552 | Plain bearing |
| 10 | 1609203552 | Plain bearing |
| 11 | 1609203553 | Plain bearing |
| 11 | 1609203553 | Plain bearing |
| 12 | 1609203554 | Leaf Spring |
| 12 | 1609203554 | Leaf Spring |
| 14 | 1609203556 | Guide Rail |
| 14 | 1609203556 | Guide Rail |
| 15 | 1609203557 | Saw Chain |
| 15 | 1609203557 | Saw Chain |
| 16 | 1609203558 | Chain Pinion Z=8 |
| 16 | 1609203558 | Chain Pinion Z=8 |
| 17 | 1609203559 | Plug |
| 17 | 1609203559 | Plug |
| 18 | F016L61536 | Guide Rail |
| 18 | F016L61536 | Guide Rail |
| 19 | 1609203561 | Straining Screw |
| 19 | 1609203561 | Straining Screw |
| 2 | 1609203543 | Telescope Pipe |
| 2 | 1609203543 | Telescope Pipe |
| 20 | 1609203562 | Stop Plate |
| 20 | 1609203562 | Stop Plate |
| 21 | 1609203563 | Hex Socket Head Cap Screw |
| 21 | 1609203563 | Hex Socket Head Cap Screw |
| 23 | 1609203564 | Clamping Plate |
| 23 | 1609203564 | Clamping Plate |
| 24 | 1609203565 | Tapping Screw Ø3,5X16 MM |
| 24 | 1609203565 | Tapping Screw Ø3,5X16 MM |
| 25 | 1609203566 | Compression Spring |
| 25 | 1609203566 | Compression Spring |
| 26 | 1609203567 | Push-Button |
| 26 | 1609203567 | Push-Button |
| 27 | 1609203568 | Suppression Filter |
| 27 | 1609203568 | Suppression Filter |
| 28 | 1609203569 | On-Off Switch |
| 28 | 1609203569 | On-Off Switch |
| 29 | 1901091101 | Socket-Terminal Strip 2-POLE |
| 29 | 1901091101 | Socket-Terminal Strip 2-POLE |
| 3 | 1609203545 | Handle Green |
| 3 | F016102206 | Handle |
| 30 | 1609203570 | Grommet |
| 30 | 1609203570 | Grommet |
| 31 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 31 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 31 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 31 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 31 | 1604460184 | Power supply cord GB 240V 10,2M 2 X 1,0MM H05 Vv-F |
| 32 | 1609203571 | Connecting Cable |
| 32 | 1609203571 | Connecting Cable |
| 33 | 1609203572 | Cable Clip |
| 33 | 1609203572 | Cable Clip |
| 34 | 1609203573 | Connecting Cable |
| 34 | 1609203573 | Connecting Cable |
| 35 | 1609203574 | Switch-Pawl |
| 35 | 1609203574 | Switch-Pawl |
| 36 | 1601118575 | Nameplate |
| 36 | 1601118578 | Nameplate |
| 36 | 1601118579 | Nameplate |
| 36 | 1601118580 | Nameplate |
| 37 | 1601118576 | Sticker |
| 37 | F016L61848 | Sticker |
| 38 | 1601118577 | Reference Plate |
| 38 | 1601118577 | Reference Plate |
| 39 | 1600203602 | Tapping Screw Ø3,5X12 MM |
| 39 | 1600203602 | Tapping Screw Ø3,5X12 MM |
| 4 | 1609203546 | Alternating-Current Motor |
| 4 | 1609203546 | Alternating-Current Motor |
| 5 | 1609203547 | Plain bearing |
| 5 | 1609203547 | Plain bearing |
| 54 | 1609203539 | Chain Guard |
| 54 | 1609203539 | Chain Guard |
| 6 | 1609203548 | Friction Washer |
| 6 | 1609203548 | Friction Washer |
| 652 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 652 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 655 | F016L61504 | Plug Gauge |
| 655 | F016L61504 | Plug Gauge |
| 7 | 1609203549 | Bevel Gear Z=18 |
| 7 | 1609203549 | Bevel Gear Z=18 |
| 750 | 1607031144 | Saw Chain |
| 750 | 1607031144 | Saw Chain |
| 751 | 2609390297 | Parts Set |
| 751 | 2609390297 | Parts Set |
| 753 | 2601398012 | Strain-Relief Clamp |
| 753 | 2601398012 | Strain-Relief Clamp |
| 754 | 1609200399 | Oil Spray Tin |
| 754 | 1609200399 | Oil Spray Tin |
| 8 | 1609203550 | Crown Gear Z=13/60 |
| 8 | 1609203550 | Crown Gear Z=13/60 |
| 9 | 1609203551 | Drive Wheel Z=48 |
| 9 | 1609203551 | Drive Wheel Z=48 |
