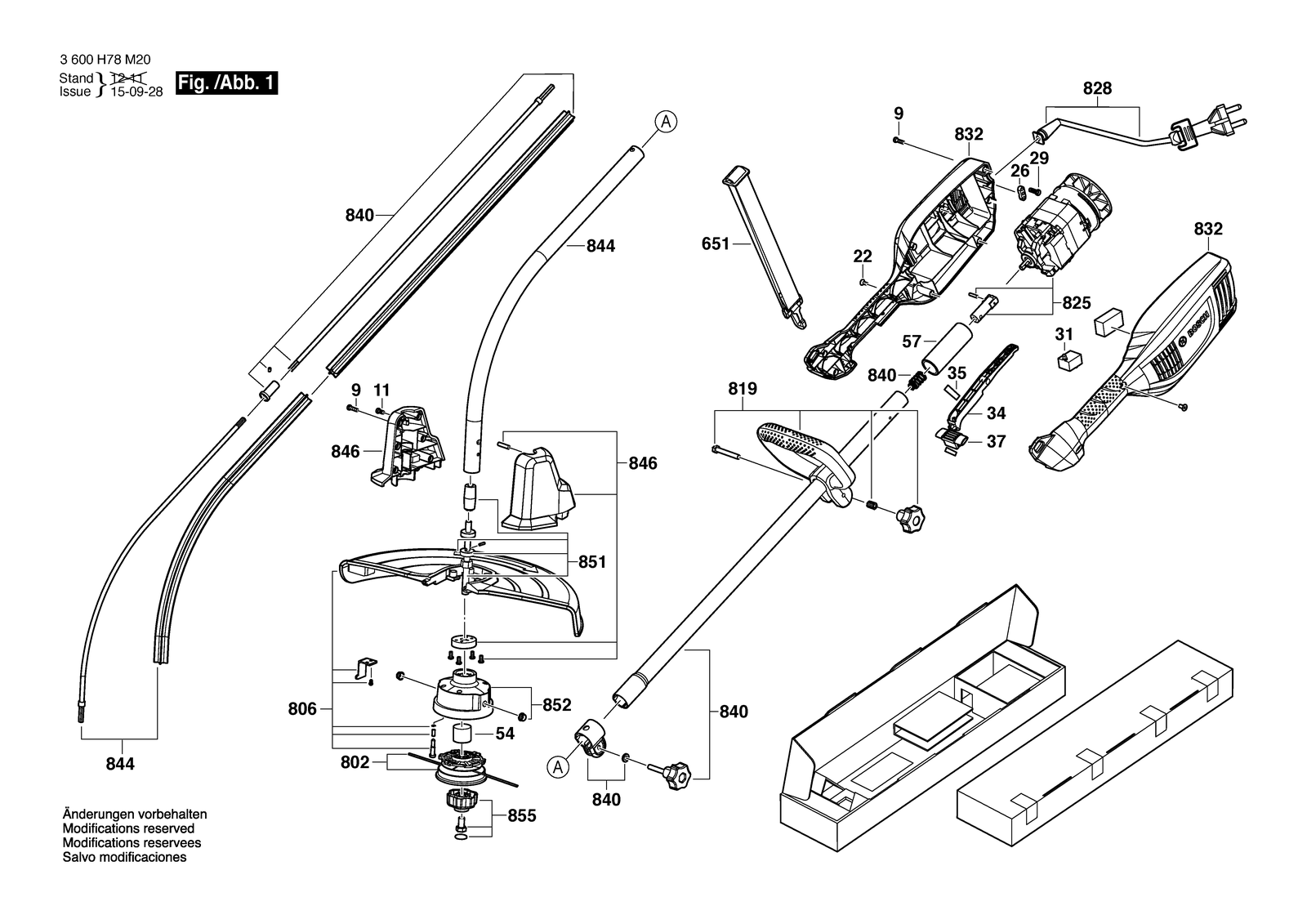

Bosch ART 37 lawn edge trimmer: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 37: 24 positions on 1 sheet
Bosch ART 37 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | F016L71908 | Screw |
| 22 | F016L71909 | Screw |
| 26 | F016L71868 | Fastening Clamp |
| 29 | F016L71907 | Screw 4X16 |
| 31 | F016L71886 | Switch |
| 34 | F016L71866 | Trigger |
| 35 | F016L71899 | Spring |
| 37 | F016L71867 | Button |
| 54 | F016L71904 | Spring |
| 57 | F016L71920 | Sleeve |
| 651 | F016L71919 | Carrying Loop |
| 802 | F016F04234 | Cutting line cartridge |
| 806 | F016F04235 | Knife Guard |
| 819 | F016F04248 | Set Of Handles |
| 825 | F016F04241 | Motor |
| 828 | F016F04242 | Power supply cord |
| 832 | F016F04240 | Motor Housing |
| 840 | F016F04239 | Rod |
| 844 | F016F04238 | Rod |
| 846 | F016F04907 | Housing |
| 851 | F016F04236 | Crankshaft |
| 852 | F016F04243 | Spool cover |
| 855 | F016F04249 | Knob |
| 9 | F016L71906 | Screw |
