Bosch ART 30-36 LI grass trimmer: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 30-36 LI: 28 positions on 1 sheet

Bosch ART 30-36 LI parts list (1 sheet)

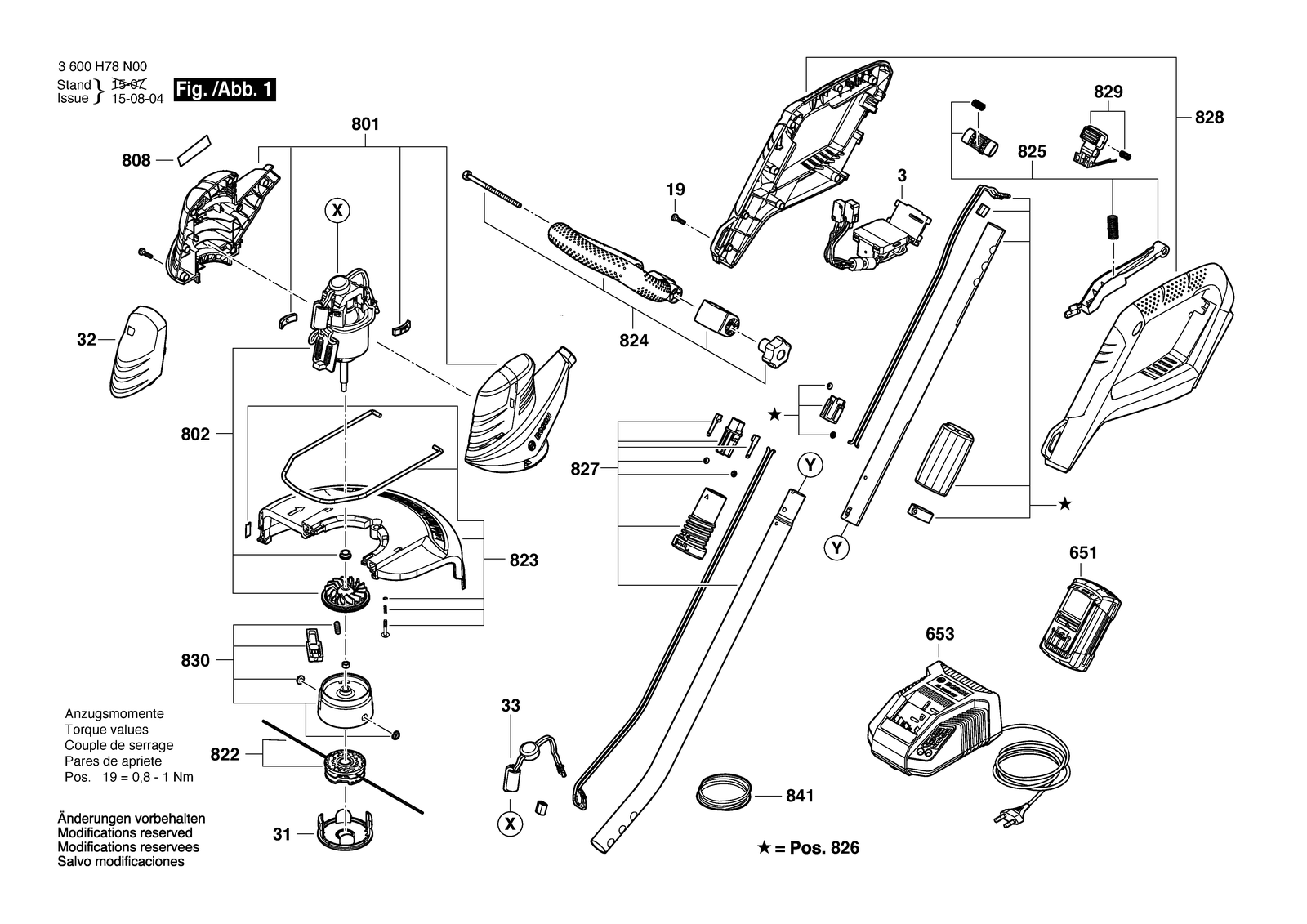

Bosch ART 30-36 LI parts diagram, sheet 1
No.Part numberPart name
19F016L72416Screw
31607233580Electronics Module
31F016L72438Cover
32F016L72444Cover
33F016L72450Electronics Module
6511607A350PZBattery Pack GBA 36V 2,0AH H-b
6511607A350R2Battery Pack GBA 36V 4,0AH H-c
6532607225659Charger GB 230/10,8-36V
6532607225661Charger AUS 240/10,8-36V
6532607226273Fast Charger EU AL 36V-20/36V
6532607226275Fast Charger GB 230 AL 36V-20/36V
6532607226277Fast Charger Aus AL 36V-20
801F016F04410Motor Housing
802F016F04408DC motor
808F016104989Nameplate
808F016F04655Nameplate
808F016L73721Nameplate
822F016F04405Cutting line cartridge
823F016F04406Knife Guard
824F016F04407Set Of Handles
825F016F04409Trigger
826F016F04411Rod
827F016F04412Rod
827F016F04988Rod
828F016F04413Housing
829F016F04416Latch
830F016F04418Spool cover
841F016F04559Plastic Cable 24M
