Bosch ART 30 lawn edge trimmer: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 30: 42 positions on 1 sheet

Bosch ART 30 parts list (1 sheet)

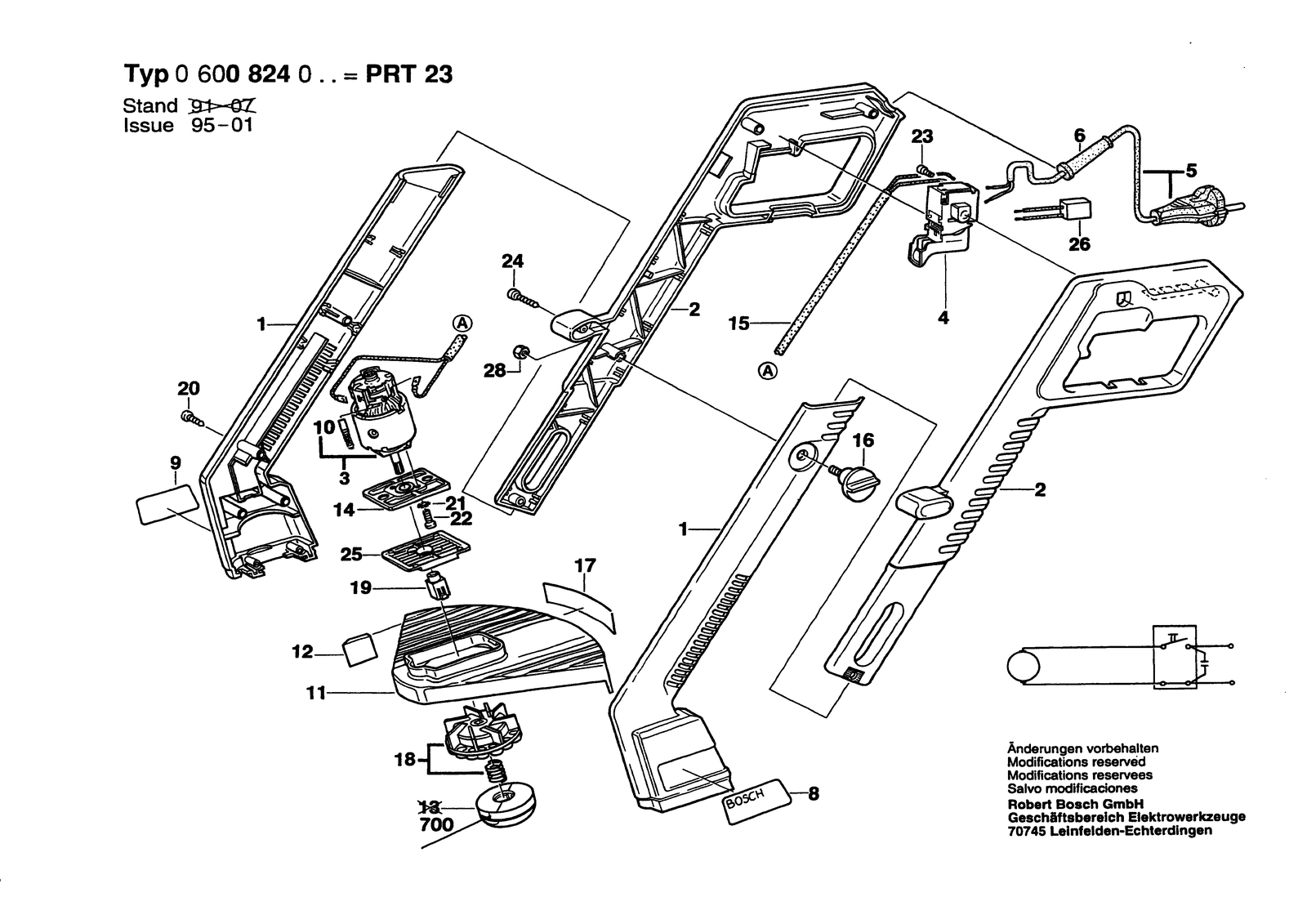

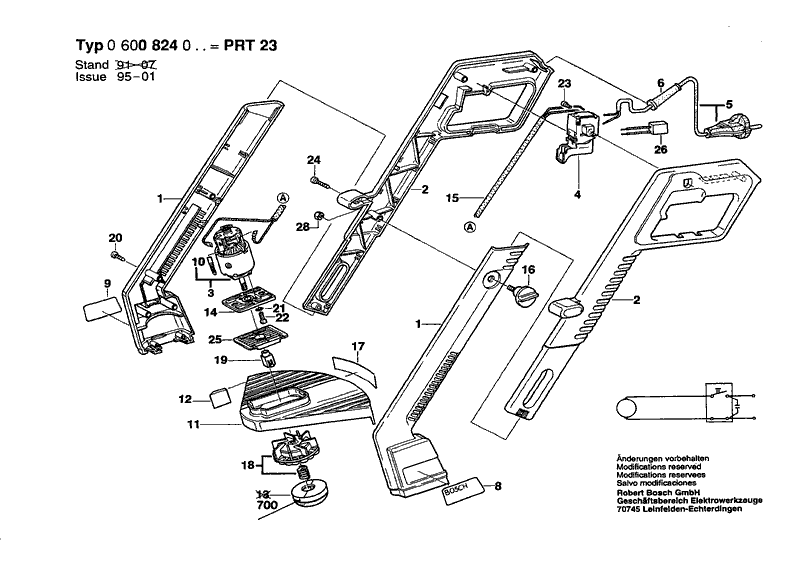

Bosch ART 30 parts diagram, sheet 1
No.Part numberPart name
11609202551Housing Half Green
101609202316Carbon-Brush Set
111609201894Protective Shield
121609202358Cutter Plate 24X7X0,8 MM
141609202317Motor Plate
151609202318Connecting Cable
161609201897Wing Screw M 4X12 MM
171601110536Reference Plate
171601110556Reference Plate Caution
171601110860Reference Plate
181609201898Fan
181609202323Fan
191609202324Support clamp
21609202552Housing Half Green
201609202016Tapping Screw 3,5X20 MM
212916030006Toothed lock washer DIN 6797-A4,3-FST
222910641118Oval-Head Screw DIN 7985-M4X8-4.8
232603410001Socket head cap screw M3X6,5-4.8
241609202017Tapping Screw 3,5X35 MM
251609202319Insulating Plate
261607328034Suppression Filter
31609202408Alternating-Current Motor
31609202409Alternating-Current Motor
42607200234On-Off Switch
42607200261On-Off Switch
51604460437Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F
51609202320Power supply cord
51609202333Power supply cord
51609202380Power supply cord
52604420030Power supply cord GB 0,40M 2 X 1,0MM H05 Vv-F
52604460255Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F
61609201893Grommet
61609202321Grommet
700F016102388Cutting line cartridge
81601110956Nameplate
81601110958Nameplate
81601110959Nameplate
81601110960Nameplate
81601110961Nameplate
81601110962Nameplate
81601110963Nameplate
91601110957Manufacturer's nameplate
