Bosch ART 26 AS
Bosch ART 26 AS lawn edge trimmer: exploded parts diagram, 1 sheet, 121 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

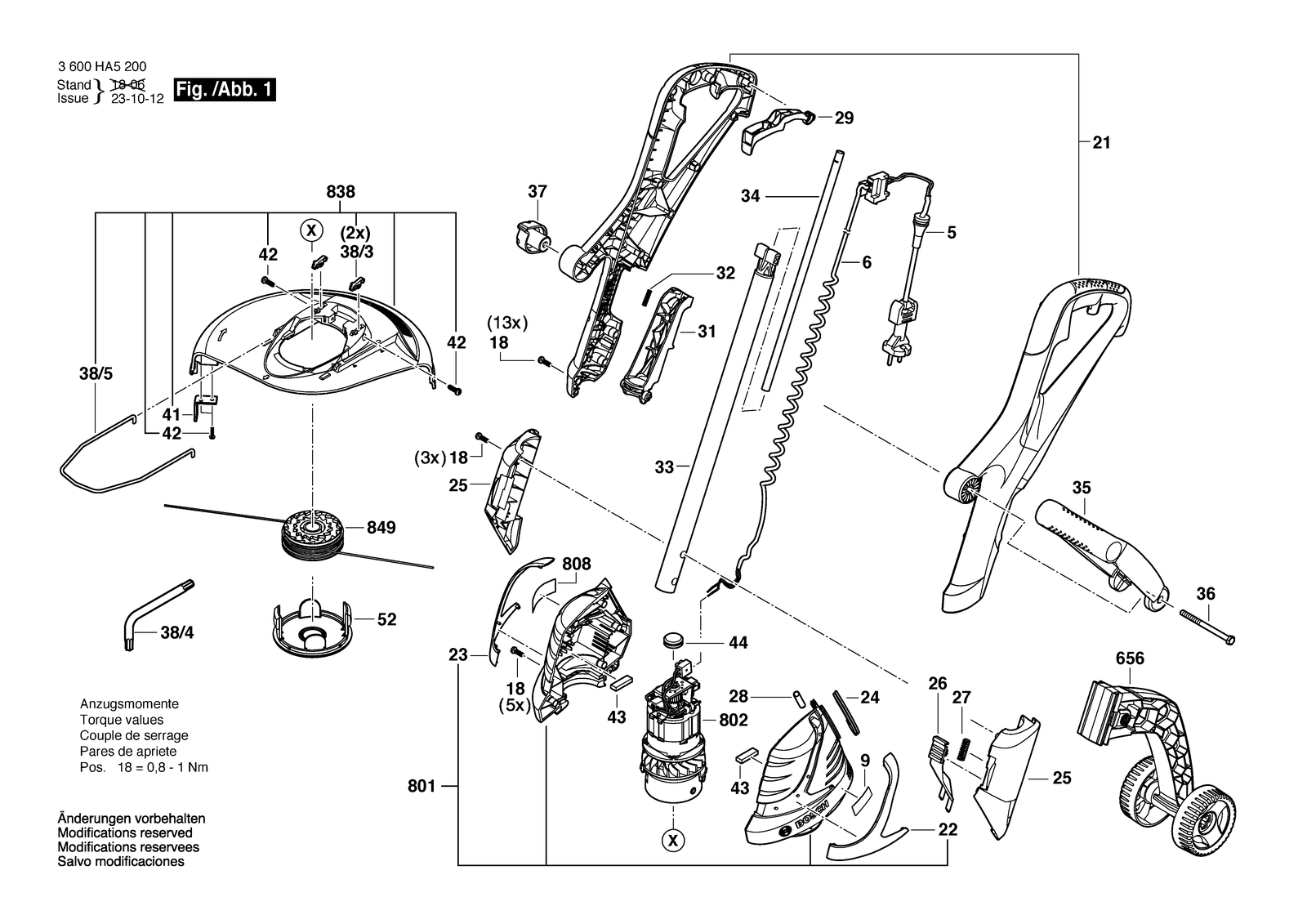

All parts of Bosch ART 26 AS: 121 positions on 1 sheet
Bosch ART 26 AS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 18 | 2603490022 | Screw 4X16 |
| 21 | 2609005935 | Upper Housing |
| 21 | 2609005935 | Upper Housing |
| 21 | 2609005935 | Upper Housing |
| 22 | 2609006282 | Cover Strip Black |
| 22 | 2609006282 | Cover Strip Black |
| 22 | 2609006282 | Cover Strip Black |
| 23 | 2609006283 | Cover Strip Black |
| 23 | 2609006283 | Cover Strip Black |
| 23 | 2609006283 | Cover Strip Black |
| 24 | 2609005954 | Contacting element |
| 24 | 2609005954 | Contacting element |
| 24 | 2609005954 | Contacting element |
| 25 | 1600A00Z7T | Supplementary Housing |
| 25 | 1600A00Z7T | Supplementary Housing |
| 25 | 1600A00Z7T | Supplementary Housing |
| 26 | 2609006030 | Locking Unit |
| 26 | 2609006030 | Locking Unit |
| 26 | 2609006030 | Locking Unit |
| 27 | 2609005955 | Spring |
| 27 | 2609005955 | Spring |
| 27 | 2609005955 | Spring |
| 28 | 2609007609 | Spacer |
| 28 | 2609007609 | Spacer |
| 28 | 2609007609 | Spacer |
| 29 | 2609005972 | Trigger |
| 29 | 2609005972 | Trigger |
| 29 | 2609005972 | Trigger |
| 31 | 2609006034 | Adjustment Knob |
| 31 | 2609006034 | Adjustment Knob |
| 31 | 2609006034 | Adjustment Knob |
| 32 | 2609005961 | Spring |
| 32 | 2609005961 | Spring |
| 32 | 2609005961 | Spring |
| 33 | 2609007113 | Pipe |
| 33 | 2609007113 | Pipe |
| 33 | 2609007113 | Pipe |
| 34 | 2609006272 | Guide Tube |
| 34 | 2609006272 | Guide Tube |
| 34 | 2609006272 | Guide Tube |
| 35 | 2609005974 | Handle |
| 35 | 2609005974 | Handle |
| 35 | 2609005974 | Handle |
| 36 | 2609006298 | Bolt |
| 36 | 2609006298 | Bolt |
| 36 | 2609006298 | Bolt |
| 37 | 2609005975 | Knob |
| 37 | 2609005975 | Knob |
| 37 | 2609005975 | Knob |
| 38/3 | 2609007092 | Clip |
| 38/3 | 2609007092 | Clip |
| 38/3 | 2609007092 | Clip |
| 38/4 | 1600A004NJ | Screwdriver TORX 20 |
| 38/4 | 1600A004NJ | Screwdriver TORX 20 |
| 38/4 | 1600A004NJ | Screwdriver TORX 20 |
| 38/5 | 2609006039 | Protector |
| 38/5 | 2609006039 | Protector |
| 38/5 | 2609006039 | Protector |
| 41 | 2609006038 | Cutting Unit |
| 41 | 2609006038 | Cutting Unit |
| 41 | 2609006038 | Cutting Unit |
| 42 | 2603490022 | Screw 4X16 |
| 42 | 2603490022 | Screw 4X16 |
| 42 | 2603490022 | Screw 4X16 |
| 43 | 2609005952 | Rubber-Inter Calation |
| 43 | 2609005952 | Rubber-Inter Calation |
| 43 | 2609005952 | Rubber-Inter Calation |
| 44 | 2609005932 | End cap |
| 44 | 2609005932 | End cap |
| 44 | 2609005932 | End cap |
| 5 | 1604460731 | Power supply cord CH 0,4M |
| 5 | 2609006505 | Power supply cord EU 4,6M |
| 5 | 2609006906 | Power supply cord GB 230V 10,2M |
| 5 | 1604460731 | Power supply cord CH 0,4M |
| 5 | 2609006505 | Power supply cord EU 4,6M |
| 5 | 2609006906 | Power supply cord GB 230V 10,2M |
| 5 | 1604460731 | Power supply cord CH 0,4M |
| 5 | 2609006505 | Power supply cord EU 4,6M |
| 5 | 2609006906 | Power supply cord GB 230V 10,2M |
| 52 | 1600A00X61 | Spool cover |
| 52 | 1600A00X61 | Spool cover |
| 52 | 1600A00X61 | Spool cover |
| 6 | 2609006506 | Connecting Cable |
| 6 | 2609006506 | Connecting Cable |
| 6 | 2609006506 | Connecting Cable |
| 656 | 2609007342 | Wheel Set |
| 656 | 2609007342 | Wheel Set |
| 656 | 2609007342 | Wheel Set |
| 801 | 1600A003VV | Housing Base |
| 801 | 1600A003VX | Housing Base |
| 801 | 1600A003VV | Housing Base |
| 802 | 1607000C6J | Motor |
| 802 | 1607000C6K | Motor |
| 802 | 1607000C6J | Motor |
| 808 | 160111A3W2 | Nameplate |
| 808 | 160111A3W4 | Nameplate |
| 808 | 160111A3W8 | Nameplate |
| 808 | 160111A6EL | Nameplate |
| 808 | 160111A6EN | Nameplate |
| 808 | 160111A3WC | Nameplate |
| 808 | 160111A3WE | Nameplate |
| 808 | 160111A3WJ | Nameplate |
| 808 | 160111A6ER | Nameplate |
| 808 | 160111A3WN | Nameplate |
| 808 | 160111A3WR | Nameplate |
| 808 | 160111A3WV | Nameplate |
| 808 | 160111A6EH | Nameplate |
| 838 | 1600A004T7 | Protective Cover Ø 27MM |
| 838 | 1600A004T8 | Protective Cover Ø 30MM |
| 838 | 1600A00HY8 | Protective Cover Ø 24MM |
| 849 | 1600A003TX | Cutting line cartridge |
| 849 | 1600A003TX | Cutting line cartridge |
| 849 | 1600A003TX | Cutting line cartridge |
| 9 | 160111C04P | Manufacturer's nameplate ART 27 |
| 9 | 160111C2TD | Manufacturer's nameplate ART 27 + |
| 9 | 160111C04T | Manufacturer's nameplate ART 30 |
| 9 | 160111C2TE | Manufacturer's nameplate ART 30 + |
| 9 | 160111C0KP | Manufacturer's nameplate ART 24 |
| 9 | 160111C2TC | Manufacturer's nameplate ART 24 + |
