Bosch ART 25 GSA

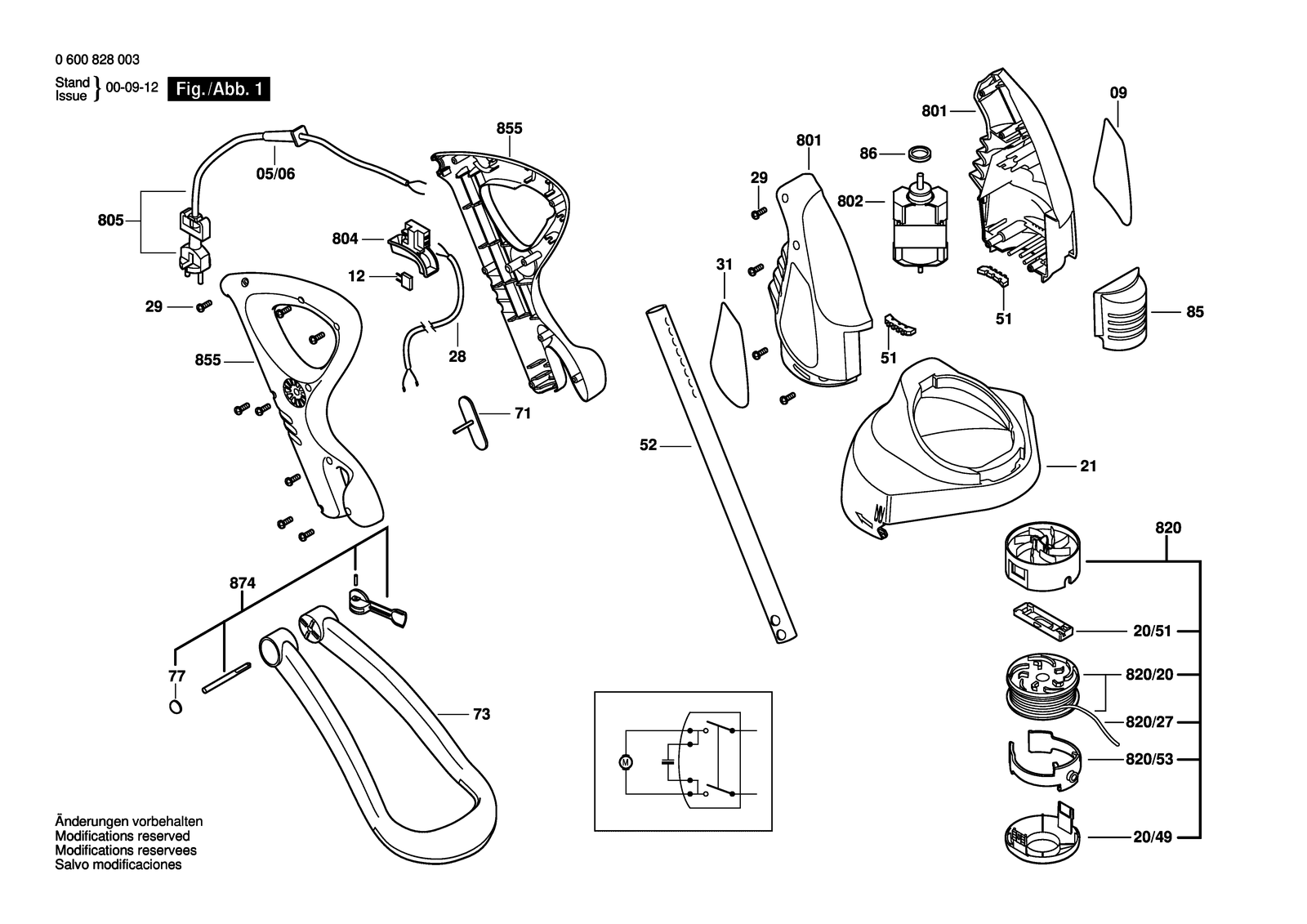

Bosch ART 25 GSA lawn edge trimmer: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 25 GSA: 29 positions on 1 sheet
Bosch ART 25 GSA parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 05/06 | F016T44500 | Grommet |
| 09 | F016L63116 | Sticker |
| 12 | F016L36952 | Condenser |
| 20/49 | F016L63113 | Cover |
| 20/51 | F016L63109 | Slider |
| 21 | F016102779 | Protective Cover |
| 28 | F016L63100 | Connecting Cable |
| 29 | F016L62029 | Special Screw 4X19 MM |
| 31 | F016L63118 | Warning Label |
| 51 | F016L63105 | Rubber-Inter Calation |
| 52 | F016L63101 | Guide Tube |
| 71 | F016L62572 | Sealing cap |
| 73 | F016102842 | Parts Set |
| 77 | F016L63568 | Spring retaining ring |
| 801 | F016102763 | Housing Set |
| 802 | F016L63104 | Motor |
| 804 | F016102352 | On-Off Switch |
| 805 | F016102381 | Power supply cord |
| 805 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 805 | F016104086 | Power supply cord EU |
| 805 | F016104359 | Power supply cord Ch |
| 820 | F016103132 | Cutting line cartridge |
| 820/20 | F016103131 | Cutting line cartridge |
| 820/27 | F016102777 | Plastic Cable |
| 820/53 | F016102778 | Guide Ring |
| 85 | F016L63114 | Molded Part |
| 855 | F016102784 | Housing Set |
| 86 | F016L63106 | Rubber Ring |
| 874 | F016102842 | Parts Set |
