Bosch ART 25 ERGOPOWER

Bosch ART 25 ERGOPOWER lawn edge trimmer: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 25 ERGOPOWER: 33 positions on 1 sheet

Bosch ART 25 ERGOPOWER parts list (1 sheet)

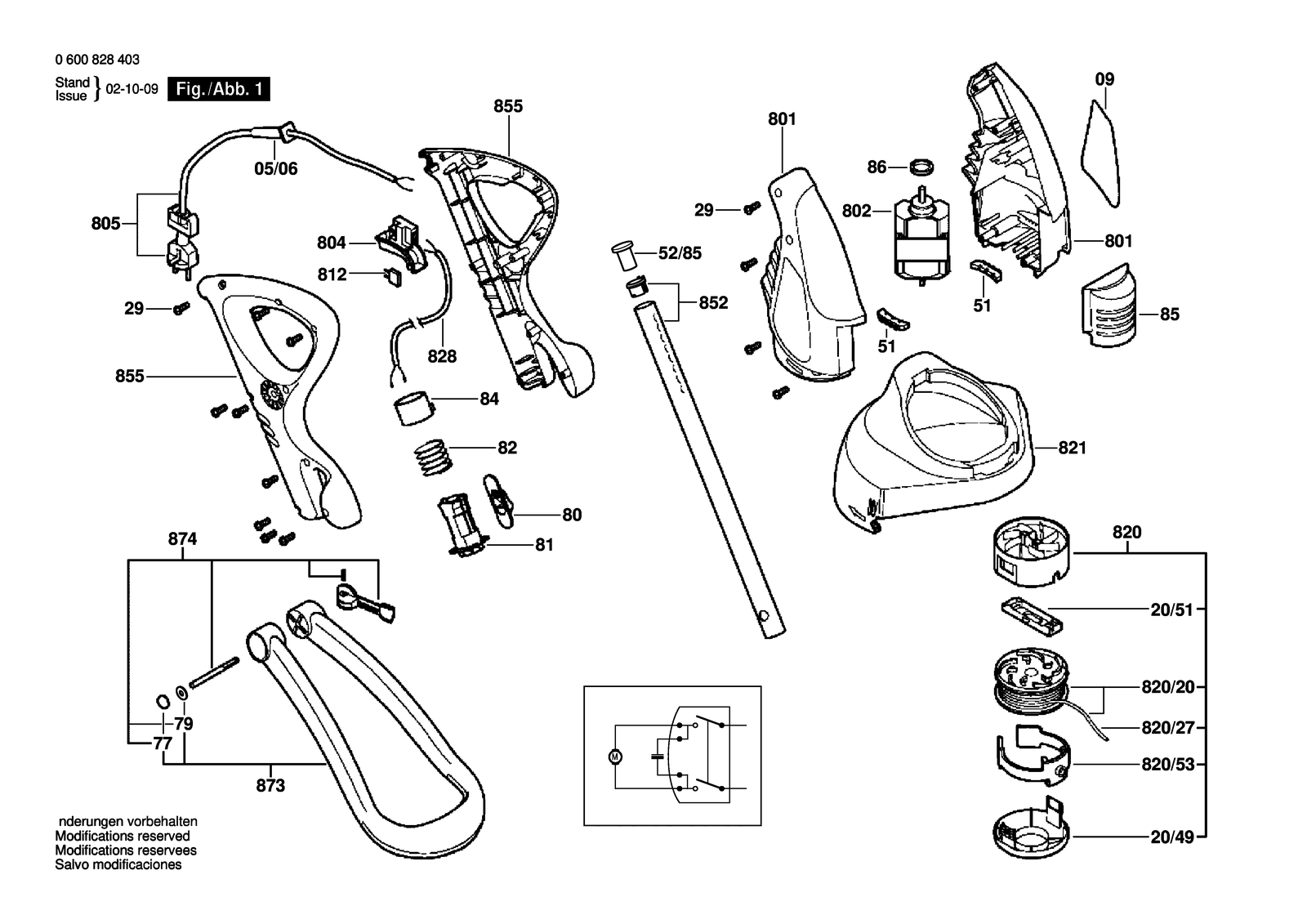

Bosch ART 25 ERGOPOWER parts diagram, sheet 1
No.Part numberPart name
05/06F016T44500Grommet
09F016L63150Sticker
20/49F016L63113Cover
20/51F016L63109Slider
29F016T49429Self-Cutting Screw 4X19 MM
51F016L63105Rubber-Inter Calation
77F016L63568Spring retaining ring
79F016L57388Sticker
80F016L62530Push-Button
801F016103128Housing Set
802F016L63104Motor
804F016103157Parts Set
805F016102381Power supply cord
805F016102997Power supply cord
805F016103162Power supply cord
805F016104359Power supply cord Ch
81F016L64149Clamp
812F016103155Suppression Capacitor
82F016L62532Compression Spring
820F016103132Cutting line cartridge
820/20F016103131Cutting line cartridge
820/27F016102777Plastic Cable
820/53F016102778Guide Ring
821F016102779Protective Cover
828F016103161Connecting Cable
84F016L62569Clamping Ring
85F016L63114Molded Part
852F016103137Guide Tube
855F016103134Housing Set
86F016L63106Rubber Ring
873F016102842Parts Set
873F016102843Auxiliary Handle
874F016102957Locking Pin
