Bosch ART 23 GFS

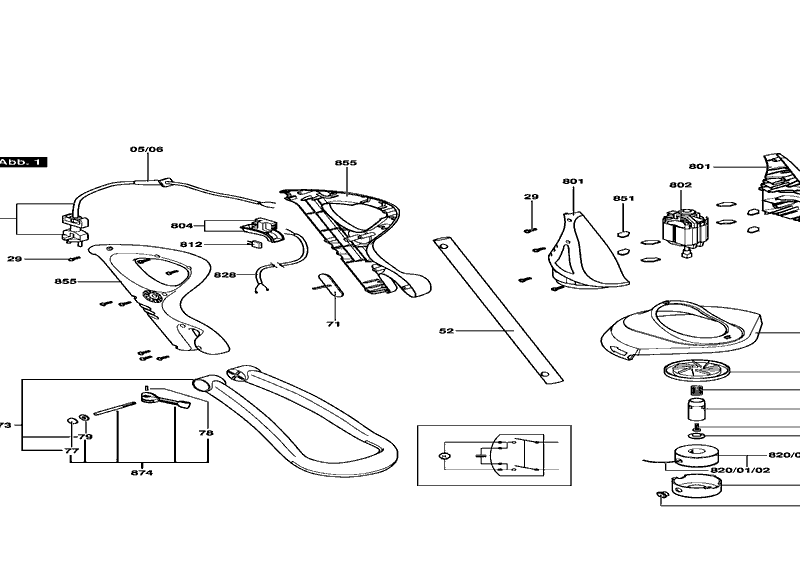

Bosch ART 23 GFS lawn edge trimmer: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 23 GFS: 25 positions on 1 sheet
Bosch ART 23 GFS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 05/06 | F016T44500 | Grommet |
| 09 | F016L63331 | Sticker |
| 29 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 52 | F016L64212 | Guide Tube |
| 71 | F016L63958 | Sealing cap |
| 77 | F016L63568 | Spring retaining ring |
| 78 | F016T56145 | Straight Pin |
| 79 | F016L57338 | Plain Washer |
| 801 | F016103127 | Housing Set |
| 802 | 1607220045 | Alternating-Current Motor |
| 804 | F016103157 | Parts Set |
| 805 | F016102381 | Power supply cord |
| 805 | F016102997 | Power supply cord |
| 805 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 805 | F016104359 | Power supply cord Ch |
| 812 | F016103155 | Suppression Capacitor |
| 820 | F016102658 | Cutting line cartridge |
| 820/01 | F016102389 | Cutting line cartridge |
| 820/01/02 | F016102387 | Nylon Line |
| 821 | F016102660 | Protective Cover |
| 828 | F016103156 | Connecting Cable |
| 851 | F016103139 | Parts Set |
| 855 | F016103134 | Housing Set |
| 873 | F016102843 | Auxiliary Handle |
| 874 | F016102957 | Locking Pin |
