Bosch ART 23 GF

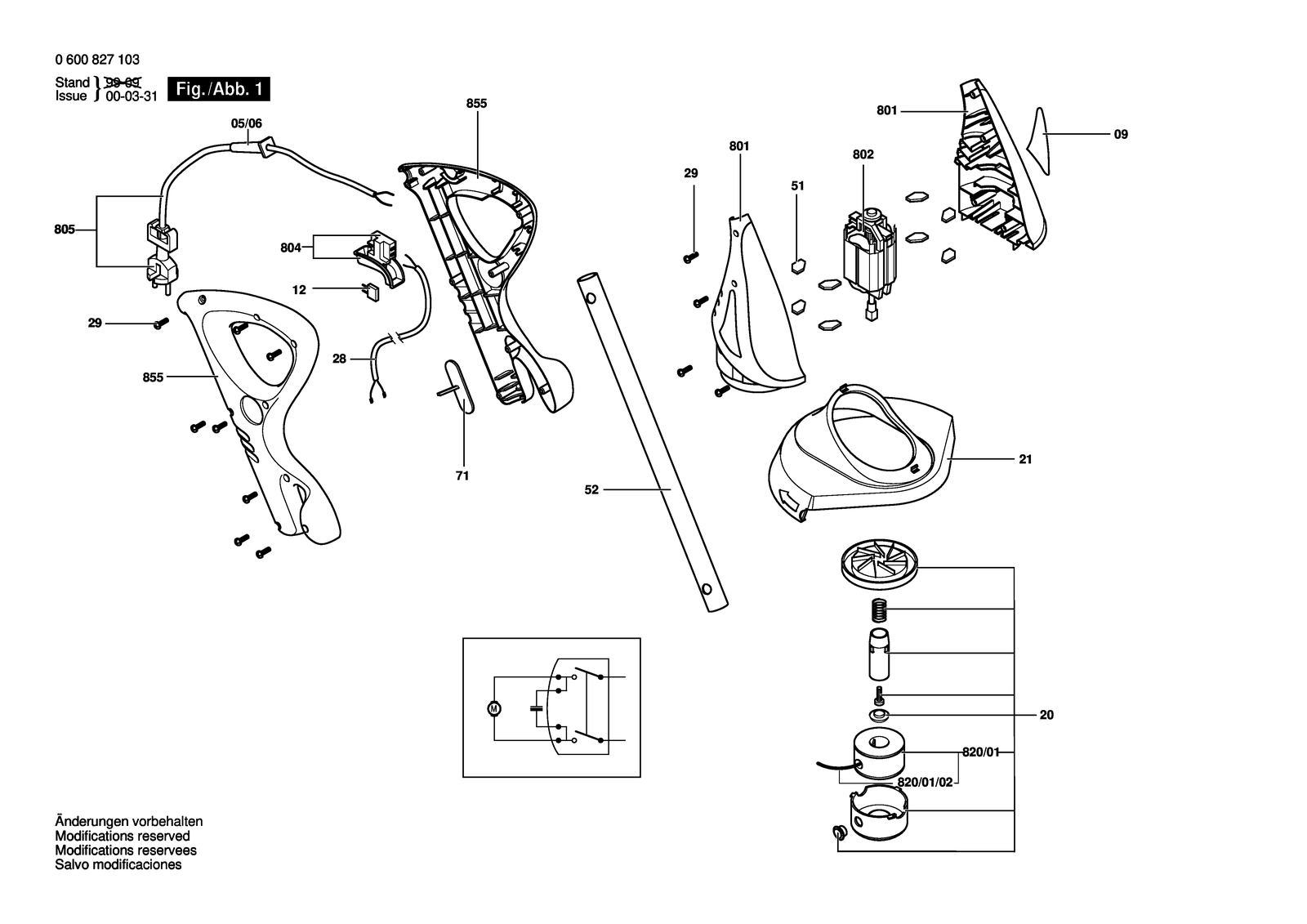

Bosch ART 23 GF lawn edge trimmer: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 23 GF: 20 positions on 1 sheet
Bosch ART 23 GF parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 05/06 | F016T44500 | Grommet |
| 09 | F016L62556 | Sticker |
| 12 | F016L36952 | Condenser |
| 20 | F016102658 | Cutting line cartridge |
| 21 | F016102660 | Protective Cover |
| 28 | F016L62877 | Connecting Cable |
| 29 | F016L62029 | Special Screw 4X19 MM |
| 51 | F016L62571 | Rubber-Inter Calation |
| 52 | F016L62506 | Guide Tube |
| 71 | F016L62572 | Sealing cap |
| 801 | F016103127 | Housing Set |
| 802 | 1607220045 | Alternating-Current Motor |
| 804 | F016102352 | On-Off Switch |
| 805 | F016102353 | Power supply cord |
| 805 | F016102381 | Power supply cord |
| 805 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 805 | F016104359 | Power supply cord Ch |
| 820/01 | F016102389 | Cutting line cartridge |
| 820/01/02 | F016102387 | Nylon Line |
| 855 | F016102746 | Switch Housing |
