Bosch ART 23 COMBITRIM

Bosch ART 23 COMBITRIM lawn edge trimmer: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ART 23 COMBITRIM: 27 positions on 1 sheet

Bosch ART 23 COMBITRIM parts list (1 sheet)

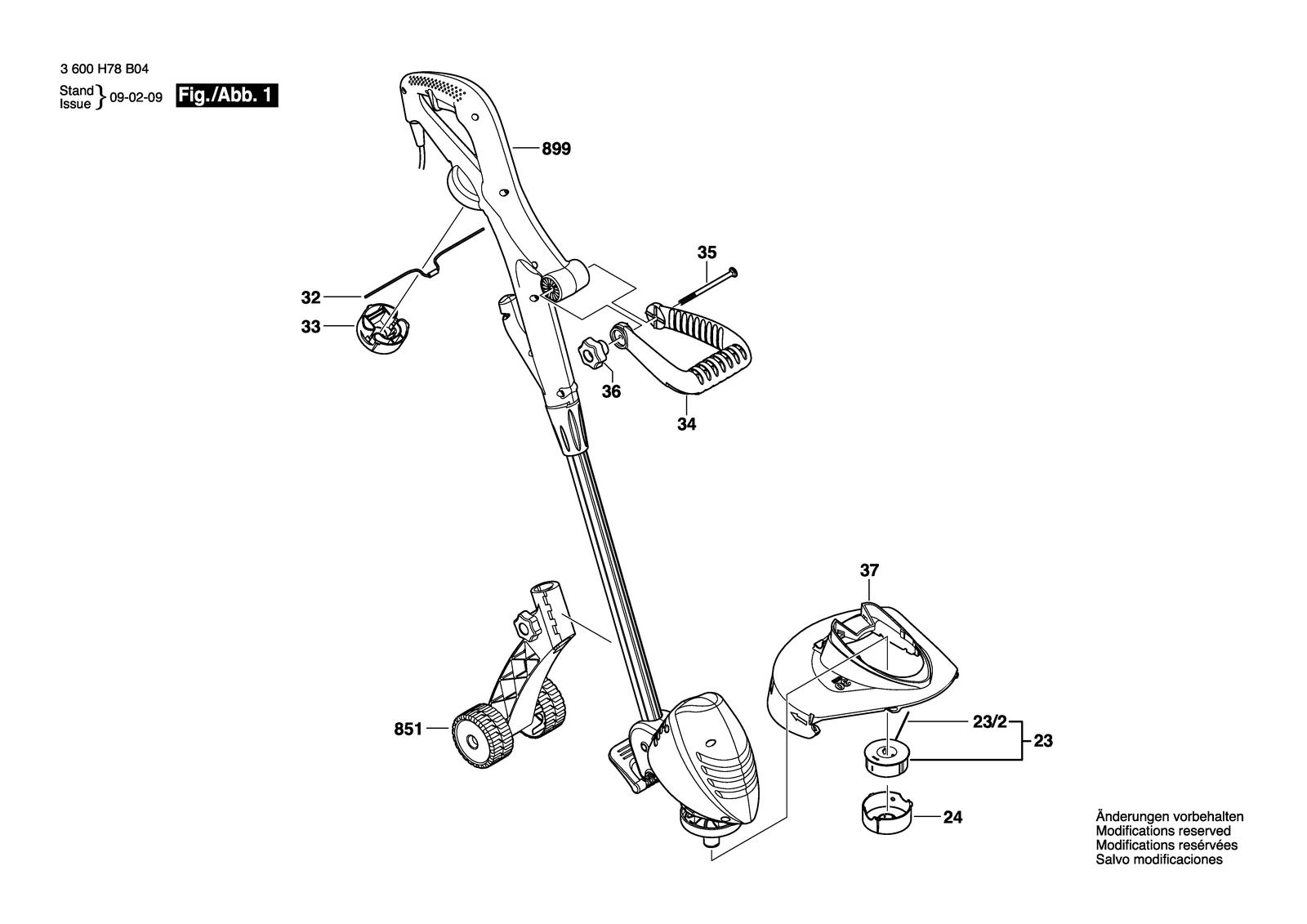

Bosch ART 23 COMBITRIM parts diagram, sheet 1
No.Part numberPart name
231619P16616Cutting line cartridge
231619P16616Cutting line cartridge
23/2F016L71566Plastic Cable 8 M
23/2F016L71566Plastic Cable 8 M
241619X08157Spool cover
241619X08157Spool cover
32F016L71113Assembly Yellow 230 MM
32F016L71143Plastic Cable Red 260 MM
33F016L71115Cutting line cartridge
33F016L71115Cutting line cartridge
34F016L71116Set Of Handles
34F016L71116Set Of Handles
352609006298Bolt
352609006298Bolt
36F016L71118Wing Nut
36F016L71118Wing Nut
37F016L71628Safety Guard
37F016L71629Safety Guard
851F016L71147Wheel
851F016L71147Wheel
8990600878B00Lawn Edge Trimmer
8990600878B01Lawn Edge Trimmer
8990600878B30Lawn Edge Trimmer
8990600878B70Lawn Edge Trimmer
8990600878C00Lawn Edge Trimmer
8990600878C01Lawn Edge Trimmer
8990600878C70Lawn Edge Trimmer
