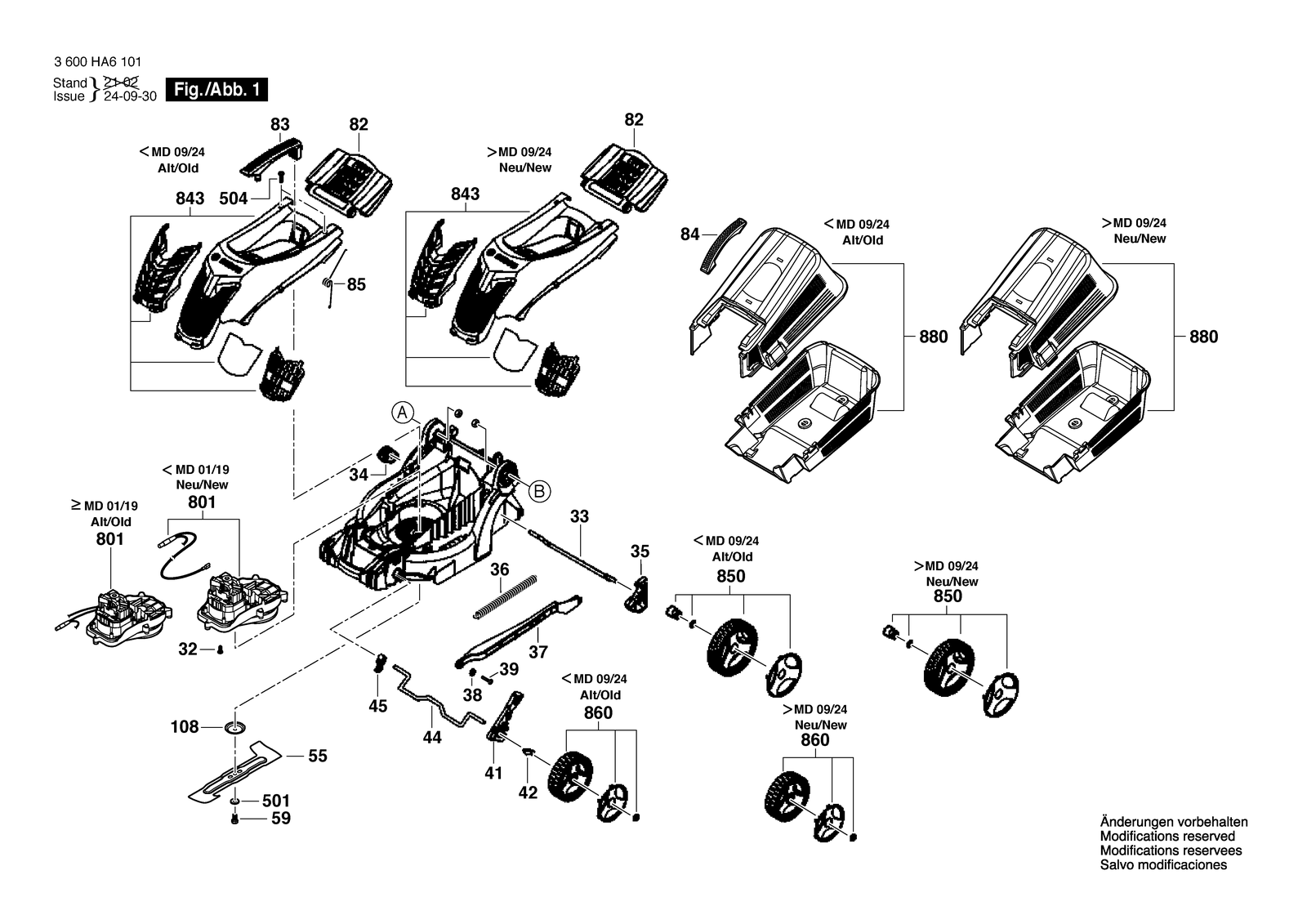

Bosch ARM 36 lawnmower: exploded parts diagram, 2 sheets, 167 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ARM 36: 167 positions on 2 sheets
Bosch ARM 36 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 108 | F016L67627 | Bearing cover |
| 32 | F016F04506 | Screw 5 Stück |
| 32 | F016F04506 | Screw 5 Stück |
| 32 | F016F04506 | Screw 5 Stück |
| 32 | F016F04506 | Screw 5 Stück |
| 33 | F016F04708 | Axle |
| 33 | F016F04708 | Axle |
| 33 | F016F04708 | Axle |
| 33 | F016F04708 | Axle |
| 34 | F016F04713 | Cover |
| 34 | F016F04713 | Cover |
| 34 | F016F04713 | Cover |
| 34 | F016F04713 | Cover |
| 35 | F016F04711 | Clamping Lever |
| 35 | F016F04711 | Clamping Lever |
| 35 | F016F04711 | Clamping Lever |
| 35 | F016F04711 | Clamping Lever |
| 36 | F016F04714 | Spring |
| 36 | F016F04714 | Spring |
| 36 | F016F04714 | Spring |
| 36 | F016F04714 | Spring |
| 37 | F016F04715 | Linkage Lever |
| 37 | F016F04715 | Linkage Lever |
| 37 | F016F04715 | Linkage Lever |
| 37 | F016F04715 | Linkage Lever |
| 38 | F016F04716 | Washer |
| 38 | F016F04716 | Washer |
| 38 | F016F04716 | Washer |
| 38 | F016F04716 | Washer |
| 39 | F016F04717 | Screw |
| 39 | F016F04717 | Screw |
| 39 | F016F04717 | Screw |
| 39 | F016F04717 | Screw |
| 41 | F016F04719 | Clamping Lever |
| 41 | F016F04719 | Clamping Lever |
| 41 | F016F04719 | Clamping Lever |
| 41 | F016F04719 | Clamping Lever |
| 42 | F016F04718 | Leaf Spring |
| 42 | F016F04718 | Leaf Spring |
| 42 | F016F04718 | Leaf Spring |
| 42 | F016F04718 | Leaf Spring |
| 44 | F016F04709 | Axle |
| 44 | F016F04709 | Axle |
| 44 | F016F04709 | Axle |
| 44 | F016F04709 | Axle |
| 45 | F016F04721 | Spacer |
| 45 | F016F04721 | Spacer |
| 45 | F016F04721 | Spacer |
| 45 | F016F04721 | Spacer |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 504 | F016F04697 | Screw |
| 504 | F016F04697 | Screw |
| 504 | F016F04697 | Screw |
| 504 | F016F04697 | Screw |
| 506 | F016L66155 | Wing Nut |
| 506 | F016L66155 | Wing Nut |
| 506 | F016L66155 | Wing Nut |
| 506 | F016L66155 | Wing Nut |
| 55 | F016L65157 | Cutter Blade 34 CM |
| 55 | F016L65157 | Cutter Blade 34 CM |
| 55 | F016L72363 | Cutter Blade 37 CM |
| 55 | F016L72363 | Cutter Blade 37 CM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 75 | 1617S021XS | Switching Unit |
| 75 | F016F04517 | Switching Unit |
| 75 | 1617S021XS | Switching Unit |
| 75 | F016F04517 | Switching Unit |
| 75 | F016F04517 | Switching Unit |
| 75 | 1617S021XS | Switching Unit |
| 75 | F016F04517 | Switching Unit |
| 76 | F016F04519 | Wiring unit |
| 76 | F016F04519 | Wiring unit |
| 76 | F016F04520 | Wiring unit |
| 76 | F016F04521 | Wiring unit |
| 76 | F016F04519 | Wiring unit |
| 76 | F016F04519 | Wiring unit |
| 76 | F016F04521 | Wiring unit |
| 77 | F016F04733 | Handle |
| 77 | F016F04733 | Handle |
| 77 | F016F04733 | Handle |
| 77 | F016F04733 | Handle |
| 78 | F016F04734 | Bottom handle |
| 78 | F016F04734 | Bottom handle |
| 78 | F016F04734 | Bottom handle |
| 78 | F016F04734 | Bottom handle |
| 79 | F016F04735 | Bottom handle |
| 79 | F016F04735 | Bottom handle |
| 79 | F016F04735 | Bottom handle |
| 79 | F016F04735 | Bottom handle |
| 801 | F016F04504 | Motor Neu |
| 801 | F016F05741 | Motor Alt |
| 801 | F016F04504 | Motor Neu |
| 801 | F016F05741 | Motor Alt |
| 801 | F016F04505 | Motor Neu |
| 801 | F016F05742 | Motor Alt |
| 801 | F016F04505 | Motor Neu |
| 801 | F016F05742 | Motor Alt |
| 802 | 1617S021WV | Terminal |
| 802 | 1617S021WV | Terminal |
| 802 | F016F05630 | Terminal |
| 802 | 1617S021WV | Terminal |
| 82 | F016F04513 | Guard Flap |
| 82 | F016L78878 | Guard Flap |
| 82 | F016F04513 | Guard Flap |
| 82 | F016L78878 | Guard Flap |
| 82 | F016F04513 | Guard Flap |
| 82 | F016F04513 | Guard Flap |
| 82 | F016L78878 | Guard Flap |
| 83 | F016F04696 | Carrying Handle |
| 83 | F016F04696 | Carrying Handle |
| 83 | F016F04696 | Carrying Handle |
| 83 | F016F04696 | Carrying Handle |
| 84 | F016L66685 | Carrying Handle |
| 84 | F016L66685 | Carrying Handle |
| 84 | F016L66685 | Carrying Handle |
| 84 | F016L66685 | Carrying Handle |
| 843 | 1617S021Y7 | Motor Hood |
| 843 | F016F04727 | Motor Hood |
| 843 | 1617S021Y8 | Motor Hood |
| 843 | F016F04727 | Motor Hood |
| 843 | F016F04727 | Motor Hood |
| 843 | 1617S021YB | Motor Hood |
| 843 | F016F04727 | Motor Hood |
| 85 | F016F04514 | Closing spring |
| 85 | F016F04514 | Closing spring |
| 85 | F016F04514 | Closing spring |
| 85 | F016F04514 | Closing spring |
| 850 | F016F04508 | Wheel |
| 850 | F016F04510 | Wheel |
| 850 | F016F06025 | Wheel |
| 850 | F016F04510 | Wheel |
| 850 | F016F06025 | Wheel |
| 850 | F016F04510 | Wheel |
| 850 | F016F04510 | Wheel |
| 850 | F016F06025 | Wheel |
| 860 | F016F04507 | Wheel |
| 860 | F016F04509 | Wheel |
| 860 | F016F05627 | Wheel |
| 860 | F016F04509 | Wheel |
| 860 | F016F05627 | Wheel |
| 860 | F016F04509 | Wheel |
| 860 | F016F04509 | Wheel |
| 860 | F016F05627 | Wheel |
| 880 | 1617S021YF | Collection box |
| 880 | F016F04512 | Collection box |
| 880 | 1617S021YG | Collection box |
| 880 | F016F04512 | Collection box |
| 880 | F016F04512 | Collection box |
| 880 | 1617S021YG | Collection box |
| 880 | F016F04512 | Collection box |
| 894 | F016L67530 | Clamping Lever |
| 894 | F016L67530 | Clamping Lever |
| 894 | F016L67530 | Clamping Lever |
| 894 | F016L67530 | Clamping Lever |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
