Bosch ARM 32 lawnmower: exploded parts diagram, 2 sheets, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

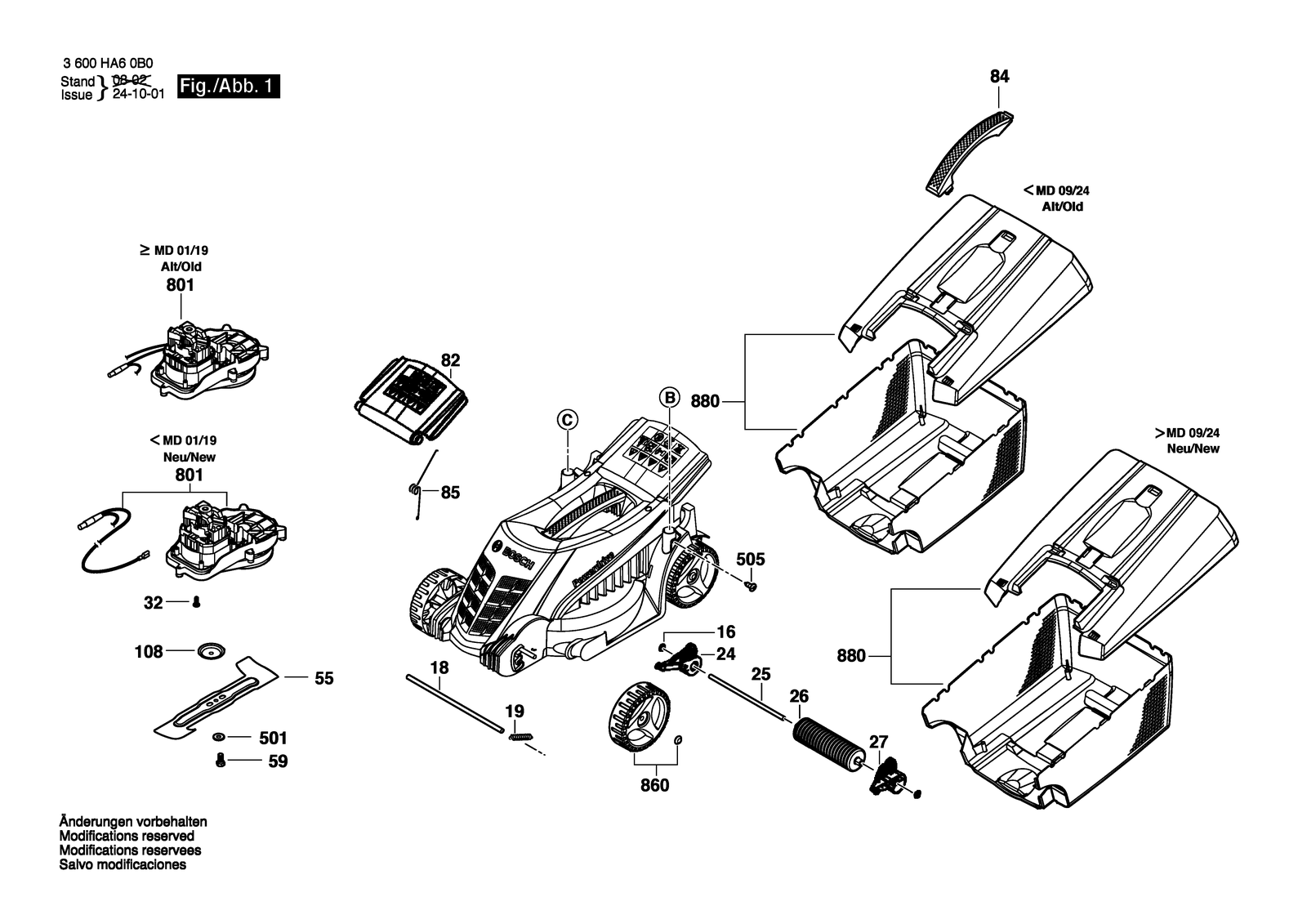

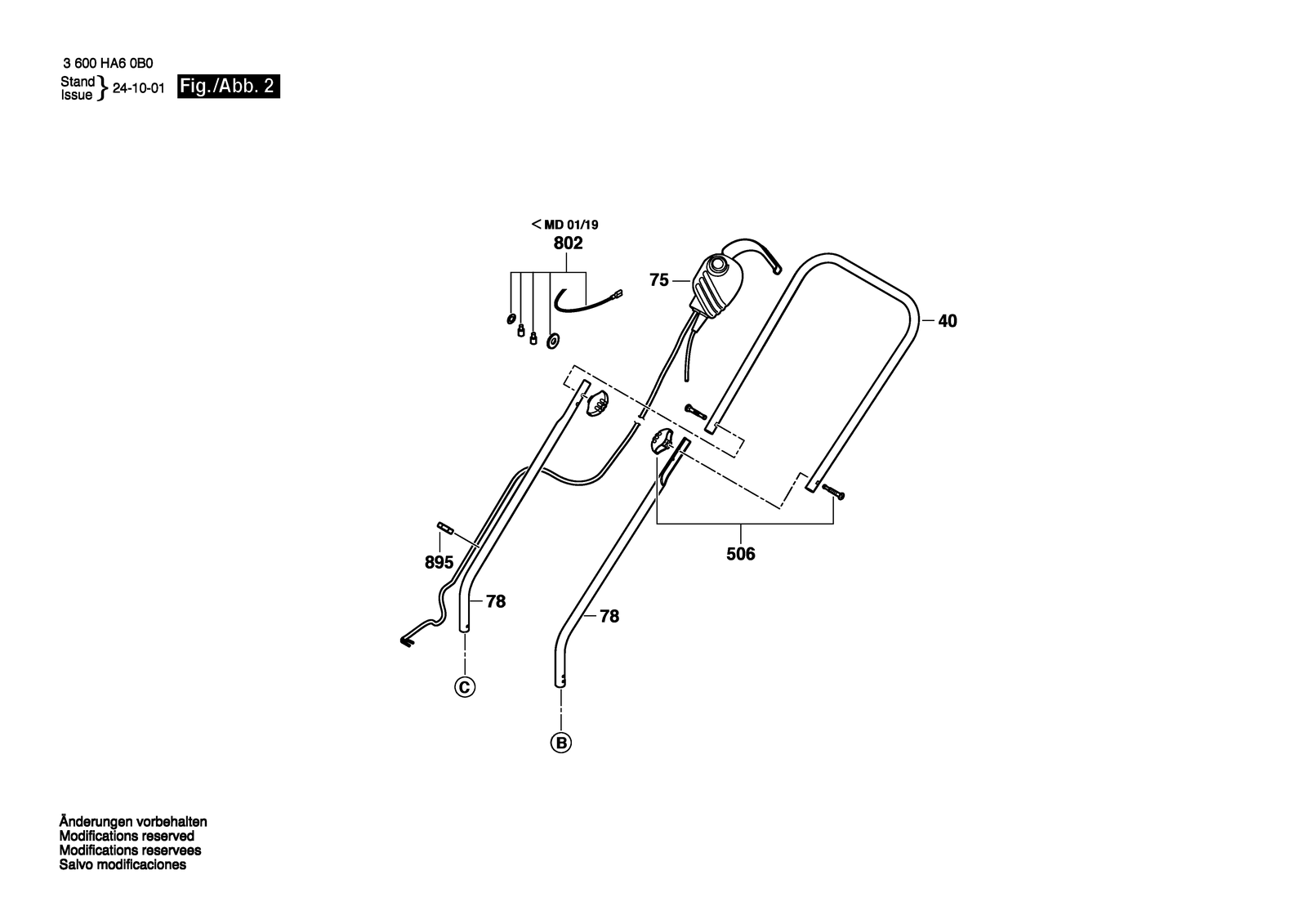

All parts of Bosch ARM 32: 28 positions on 2 sheets
Bosch ARM 32 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 108 | F016L67627 | Bearing cover |
| 16 | F016F04683 | Ratchet Cap |
| 18 | F016F04684 | Axle |
| 19 | F016F04685 | Contact strap |
| 24 | F016F04686 | Cover |
| 25 | F016F04687 | Roller Axle |
| 26 | F016F04688 | Roller |
| 27 | F016F04689 | Roller Carrier |
| 32 | F016F04506 | Screw 5 Stück |
| 40 | F016F04698 | Handle top assembly |
| 501 | F016T48185 | Plain Washer Black Ø8,15 |
| 505 | F016L36542 | Screw M5X8 Csk Hd. |
| 506 | F016L66155 | Wing Nut |
| 55 | 1600A025F8 | Cutter Blade |
| 59 | F016T48547 | Hex Screw M8X20 MM |
| 75 | F016F04611 | Switching Unit |
| 78 | F016F04699 | Bottom handle |
| 801 | F016F04606 | Motor Neu |
| 801 | F016F05740 | Motor Alt |
| 802 | 1617S021WV | Terminal |
| 802 | F016F05630 | Terminal |
| 82 | 1617S021WK | Guard Flap |
| 82 | F016F04701 | Guard Flap |
| 84 | F016L66685 | Carrying Handle |
| 85 | F016F04702 | Closing spring |
| 860 | F016F04609 | Wheel |
| 880 | F016F04610 | Collection box |
| 895 | F016L66895 | Cable Clip Rotak II |
