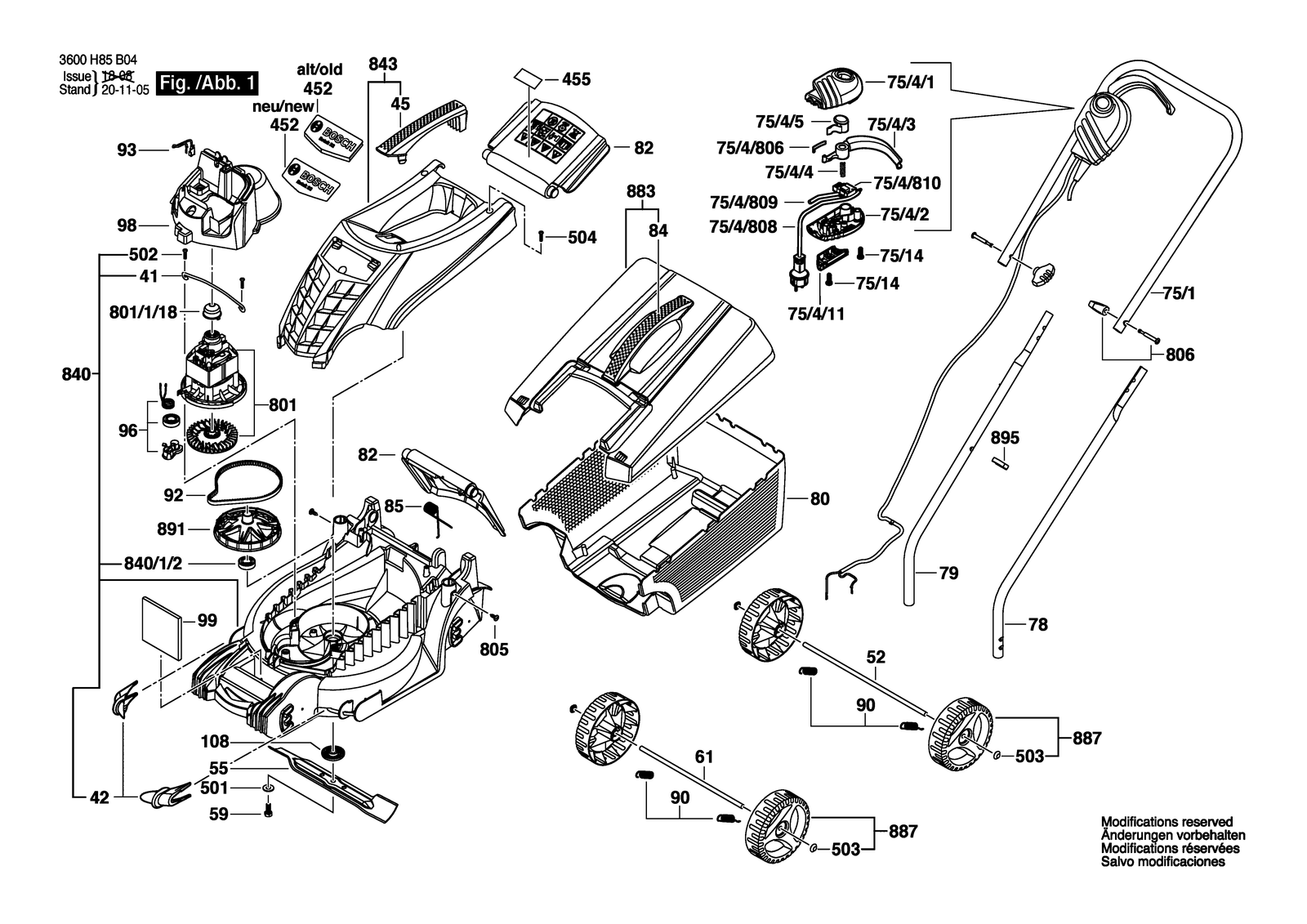

Bosch ARM 32 lawnmower: exploded parts diagram, 1 sheet, 103 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ARM 32: 103 positions on 1 sheet
Bosch ARM 32 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 108 | F016L66689 | Bearing cover |
| 108 | F016L66689 | Bearing cover |
| 41 | F016L67976 | Support Element |
| 41 | F016L67976 | Support Element |
| 42 | F016L66697 | Comb Red |
| 42 | F016L66697 | Comb Red |
| 45 | F016L66654 | Carrying Handle |
| 45 | F016L66654 | Carrying Handle |
| 452 | 1600A0233P | Company Logo Neu Rotak 32 |
| 452 | F016L66695 | Company Logo Alt Rotak 32 |
| 452 | 1600A013WC | Company Logo Alt ARM 3200 |
| 452 | 1600A0233W | Company Logo Neu ARM 32 |
| 452 | 1600A0233Z | Company Logo Neu ARM 3200 |
| 452 | F016L68672 | Company Logo Alt ARM 32 |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 501 | F016T40590 | Plain Washer Ø8,15 MM |
| 502 | F016L68323 | Screw |
| 502 | F016L68323 | Screw |
| 503 | F016T48990 | Securing Cap Black Ø8 MM |
| 503 | F016T48990 | Securing Cap Black Ø8 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 504 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 52 | F016L66849 | Axle |
| 52 | F016L66849 | Axle |
| 55 | F016L64191 | Cutter Blade 320 MM |
| 55 | F016L64191 | Cutter Blade 320 MM |
| 59 | 160343509G | Hex Screw |
| 59 | 160343509G | Hex Screw |
| 61 | F016L66848 | Axle |
| 61 | F016L66848 | Axle |
| 75/1 | F016L62792 | Handle |
| 75/1 | F016L62792 | Handle |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/4/1 | F016L66234 | Switch Housing |
| 75/4/1 | F016L66234 | Switch Housing |
| 75/4/11 | F016L66236 | Clamping Piece |
| 75/4/11 | F016L66236 | Clamping Piece |
| 75/4/2 | F016L66235 | Switch Housing |
| 75/4/2 | F016L66235 | Switch Housing |
| 75/4/3 | F016L66238 | Positioning Lever |
| 75/4/3 | F016L66238 | Positioning Lever |
| 75/4/4 | F016L66240 | Compression Spring |
| 75/4/4 | F016L66240 | Compression Spring |
| 75/4/5 | F016F05705 | Push-Button |
| 75/4/5 | F016F05705 | Push-Button |
| 75/4/806 | F016L66416 | Leaf Spring |
| 75/4/806 | F016L66416 | Leaf Spring |
| 75/4/808 | F016104085 | Power supply cord GB 22M 2 X 0,75MM Without Plug |
| 75/4/808 | F016104086 | Power supply cord EU |
| 75/4/808 | F016104359 | Power supply cord Ch |
| 75/4/808 | F016104086 | Power supply cord EU |
| 75/4/808 | F016104359 | Power supply cord Ch |
| 75/4/809 | F016104088 | Connecting Cable |
| 75/4/809 | F016104088 | Connecting Cable |
| 75/4/810 | F016F05717 | On-Off Switch |
| 75/4/810 | F016F05717 | On-Off Switch |
| 78 | F016L66682 | Handle Bar Black |
| 78 | F016L66682 | Handle Bar Black |
| 79 | F016L66655 | Handle Bar Black |
| 79 | F016L66655 | Handle Bar Black |
| 80 | F016L66683 | Collector Box Bottom |
| 80 | F016L66683 | Collector Box Bottom |
| 801 | F016104035 | Motor |
| 801 | F016104035 | Motor |
| 801/1/18 | F016L64499 | Cap |
| 801/1/18 | F016L64499 | Cap |
| 805 | F016L36542 | Screw M5X8 Csk Hd. |
| 805 | F016L36542 | Screw M5X8 Csk Hd. |
| 806 | F016L66155 | Wing Nut |
| 806 | F016L66155 | Wing Nut |
| 82 | F016L66686 | Guard Flap |
| 82 | F016L66686 | Guard Flap |
| 84 | F016L66685 | Carrying Handle |
| 84 | F016L66685 | Carrying Handle |
| 840 | F016104246 | Mower deck |
| 840 | F016104246 | Mower deck |
| 840/1/2 | F016L67442 | Bearing 6002-2RS |
| 840/1/2 | F016L67442 | Bearing 6002-2RS |
| 843 | F016104033 | Motor Hood |
| 843 | F016104033 | Motor Hood |
| 85 | F016L66687 | Closing spring |
| 85 | F016L66687 | Closing spring |
| 883 | F016104032 | Collector Box Top |
| 883 | F016104032 | Collector Box Top |
| 887 | F016104038 | Wheel |
| 887 | F016104038 | Wheel |
| 891 | 1600A02AZ3 | Drive Shaft |
| 891 | 1600A02AZ3 | Drive Shaft |
| 895 | F016L66895 | Cable Clip Rotak II |
| 895 | F016L66895 | Cable Clip Rotak II |
| 90 | F016L65773 | Spring |
| 90 | F016L65773 | Spring |
| 92 | 1600A02K8R | Drive Belt |
| 92 | 1600A02K8R | Drive Belt |
| 93 | F016L66958 | Thermal protector |
| 93 | F016L66958 | Thermal protector |
| 96 | F016L68711 | Belt Tensioner |
| 96 | F016L68711 | Belt Tensioner |
| 98 | F016L66688 | Baffle |
| 98 | F016L66688 | Baffle |
| 99 | F016L66698 | Balance Weights |
| 99 | F016L66698 | Balance Weights |
