Bosch ARM 32
Bosch ARM 32 lawnmower: exploded parts diagram, 2 sheets, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

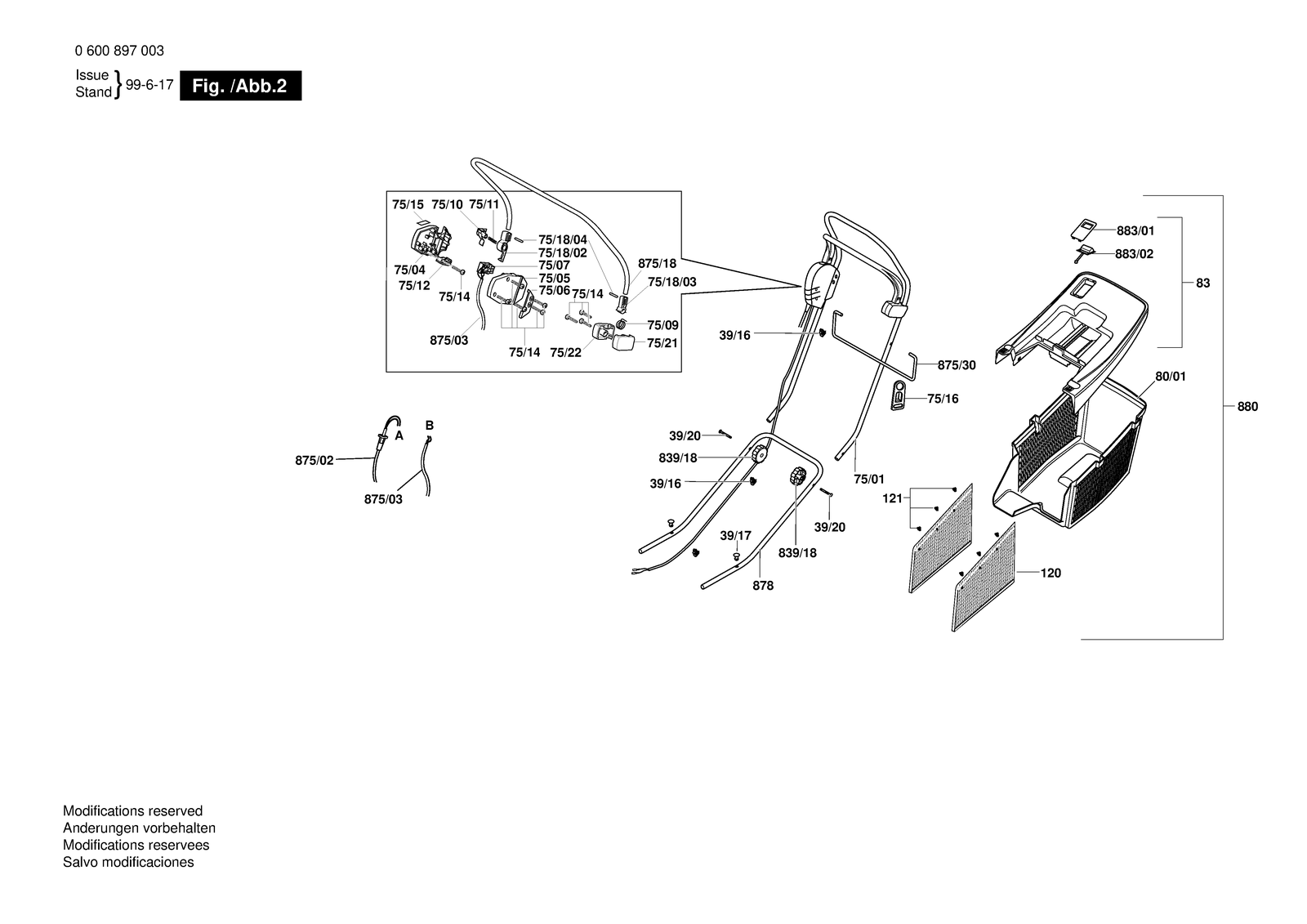

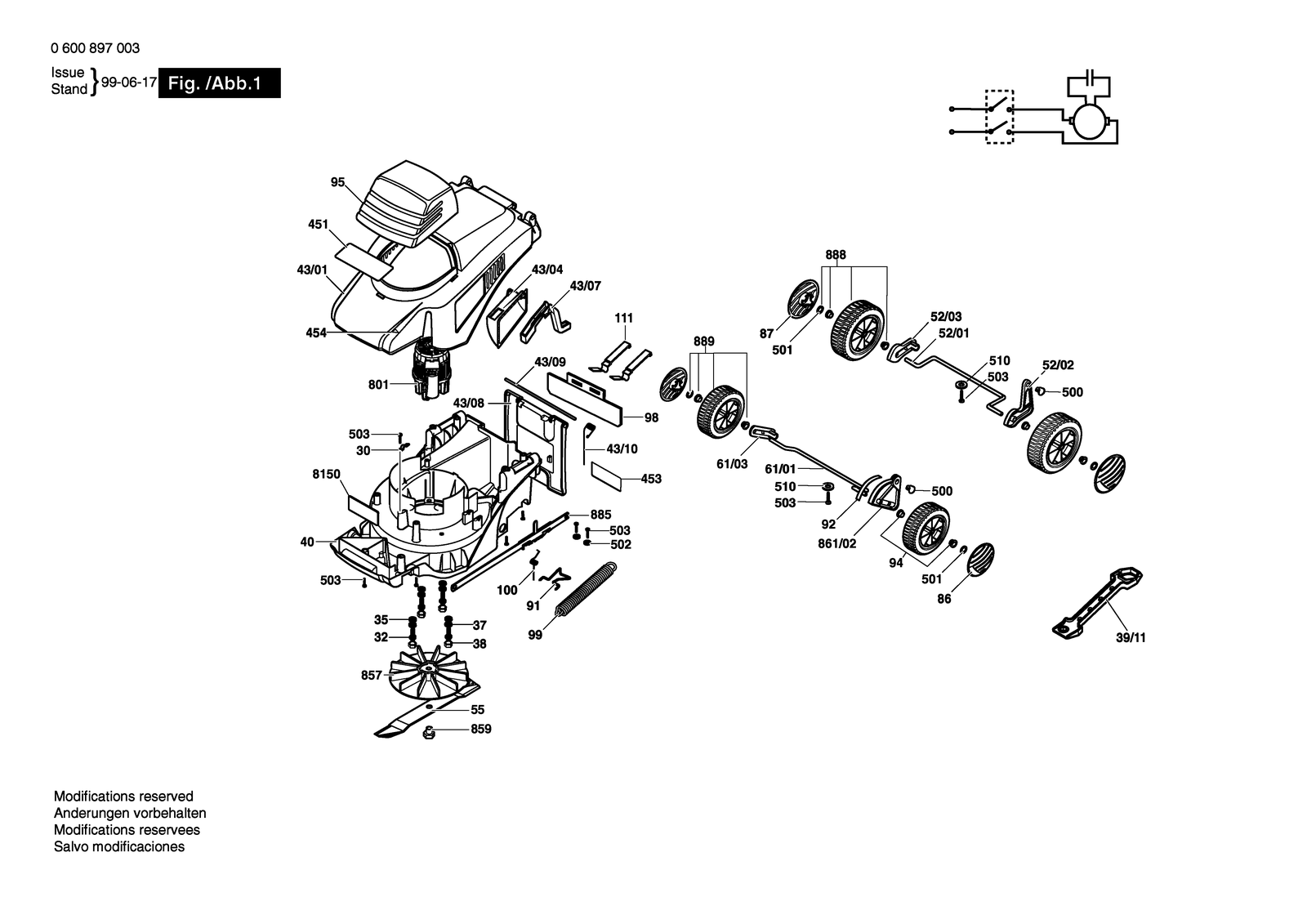

All parts of Bosch ARM 32: 76 positions on 2 sheets
Bosch ARM 32 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | F016L61597 | Torsion Spring |
| 111 | F016L61609 | Leaf Spring |
| 120 | F016L61752 | Flap |
| 121 | F016L61751 | Clip |
| 30 | F016T46305 | Cable Cleat |
| 32 | F016L11301 | Stud bolt M8X20 |
| 35 | F016L35411 | Plain Washer 8,5 MM |
| 37 | F016L35307 | Spring Washer 5/16 Sw Se |
| 38 | F016L61530 | Cover |
| 39/11 | F016L35411 | Plain Washer 8,5 MM |
| 39/16 | F016L59236 | Cable Clip |
| 39/17 | F016L62095 | Pivot Pin |
| 39/20 | F016L59277 | Bolt M6X50 |
| 40 | F016L59301 | Housing |
| 43/01 | F016L62162 | Housing Green |
| 43/04 | F016L59186 | Sealing cap |
| 43/07 | F016L59334 | Lever |
| 43/08 | F016L59311 | Guard Flap |
| 43/09 | F016L59353 | Spindle |
| 43/10 | F016L59352 | Torsion Spring |
| 451 | F016L59364 | Sticker |
| 453 | F016L61441 | Reference Plate |
| 454 | F016L61268 | Sticker |
| 500 | F016L61747 | Retaining Pin |
| 501 | F016T46941 | Spring retaining ring |
| 502 | F016T48428 | Plain Washer M5 |
| 503 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 510 | F016L57338 | Plain Washer |
| 52/01 | F016L59315 | Axle |
| 52/02 | F016L59324 | Lever |
| 52/03 | F016L59373 | Spacer |
| 55 | F016L59314 | Cutter Blade |
| 61/01 | F016L59315 | Axle |
| 61/03 | F016L59325 | Spacer |
| 75/01 | F016L59351 | Handle |
| 75/04 | F016L36449 | Switch Cover |
| 75/05 | F016T49637 | Switch Housing |
| 75/06 | F016T49630 | Clamping Piece |
| 75/07 | F016F05717 | On-Off Switch |
| 75/09 | F016T49633 | Spiral Spring |
| 75/10 | F016T49223 | Knob |
| 75/11 | F016T49226 | Compression Spring |
| 75/12 | F016T49636 | Cable Cleat |
| 75/14 | F016T49429 | Self-Cutting Screw 4X19 MM |
| 75/15 | F016L59243 | Adhesive Label |
| 75/16 | F016L65387 | Strain-Relief Clamp |
| 75/18/02 | F016T49627 | Limit Switch |
| 75/18/03 | F016T49634 | Holder |
| 75/18/04 | F016T56145 | Straight Pin |
| 75/21 | F016T49629 | Holder |
| 75/22 | F016T49628 | Holder |
| 80/01 | F016L62806 | Catcher Container |
| 801 | F016L59335 | Motor |
| 8150 | F016102207 | Balance Weights |
| 83 | F016L61774 | Catcher Container |
| 839/18 | F016L66136 | Wing Nut |
| 857 | F016102328 | Fan |
| 859 | F016102096 | Nut |
| 86 | F016L59159 | Sealing cap |
| 861/02 | F016102101 | Lever |
| 87 | F016L59360 | Sealing cap |
| 875/02 | F016102164 | Connecting Cable |
| 875/18 | F016102166 | Control Bar |
| 875/30 | F016102163 | Guide Bar |
| 878 | F016102211 | Handle |
| 883/01 | F016L59370 | Indicator Holder |
| 883/02 | F016L59150 | Indicator Holder |
| 885 | F016102106 | Linkage part |
| 888 | F016102145 | Wheel |
| 889 | F016102146 | Wheel |
| 91 | F016L61882 | Linkage part |
| 92 | F016L59346 | Sticker |
| 94 | F016L59372 | Bushing |
| 95 | F016L59318 | Motor Hood Green |
| 98 | F016L61602 | Protective Shield |
| 99 | F016L59327 | Spring |
