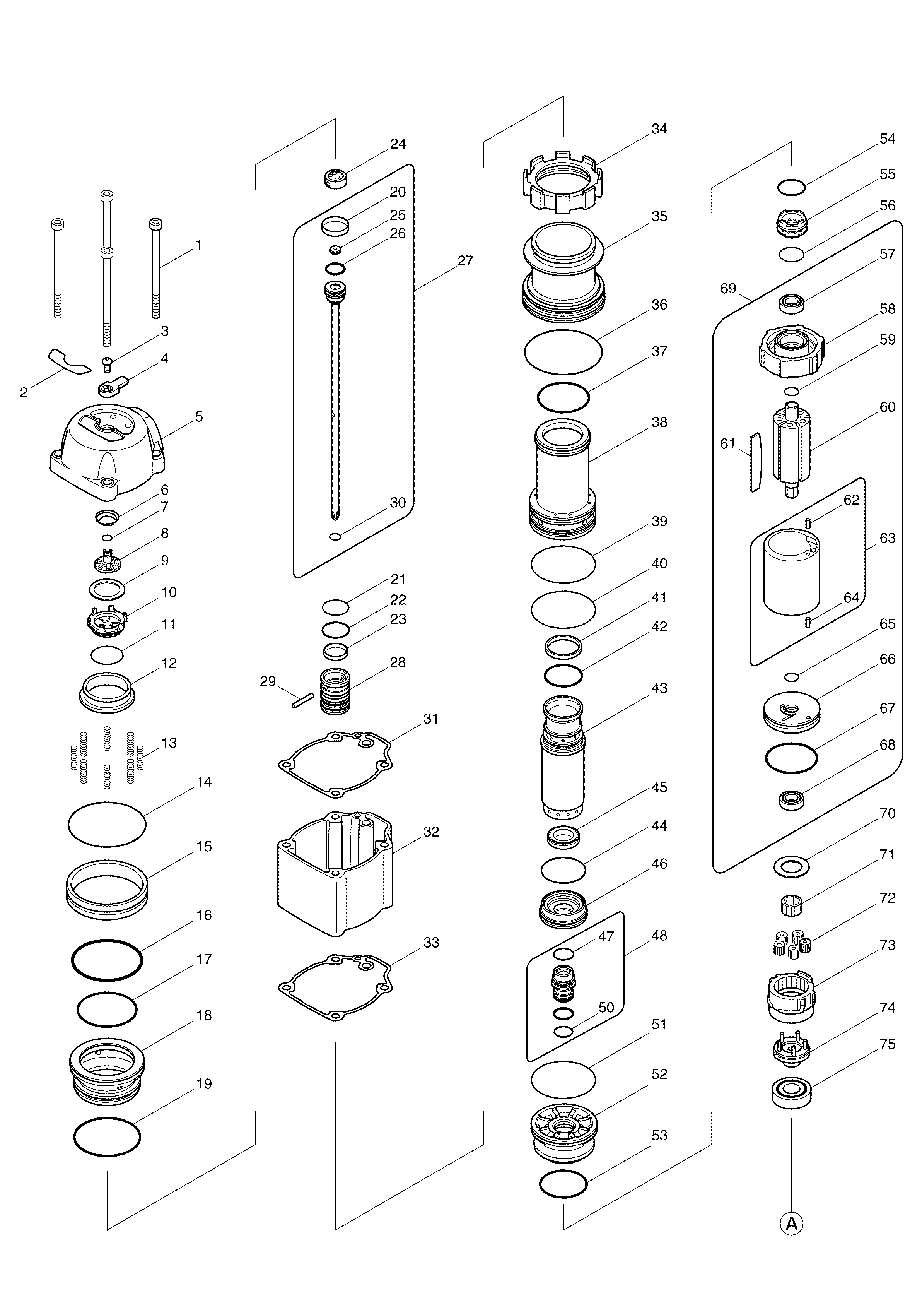

Sheet 1: Makita AR410HR parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266431-5 | Makita 266431-5 HEX SOCKET HEAD BOLTAR410HR |
| 2 | 816897-5 | Makita 816897-5 INDICATION LABELAR410HR |
| 3 | 266430-7 | Makita 266430-7 H.S. BUTTON HEAD BOLT M4X8 AF500HP |
| 4 | 450334-5 | Makita 450334-5 KNOB, AR410HR |
| 5 | 318233-6 | Makita 318233-6 TOP CAPAR410HR |
| 6 | 233962-9 | Makita 233962-9 CONICALCOMPRESSION SAR410HR |
| 7 | 213045-1 | Makita 213045-1 O RING 6, BO3710 |
| 8 | 162263-7 | Makita 162263-7 CHANGE VALVEAR410HR |
| 9 | 267365-5 | Makita 267365-5 FLATWASHER 19, AR410HR |
| 10 | 424149-6 | Makita 424149-6 REAR CUSHIONAR410HR |
| 11 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 12 | 424072-5 | Makita 424072-5 SEAL RINGAR410HR |
| 13 | 234079-1 | Makita 234079-1 COMPRESSION SPRING 4AR410HR |
| 14 | 213496-8 | Makita 213496-8 O-RING 54AR410HR |
| 15 | 331851-3 | Makita 331851-3 CYLINDER STAYAR410HR |
| 16 | 213145-7 | Makita 213145-7 O RING 47AR410HR |
| 17 | 213143-1 | Makita 213143-1 O RING 40AR410HR |
| 18 | 450306-0 | Makita 450306-0 HEAD VALVEAR410HR |
| 19 | 213144-9 | Makita 213144-9 O-RING 45AR410HR |
| 20 | 262146-2 | Makita 262146-2 RUBBER RING 16AR410HR |
| 21 | 213265-7 | Makita 213265-7 O RING 17 |
| 22 | 213275-4 | Makita 213275-4 O RING 18 |
| 23 | 262145-4 | Makita 262145-4 RUBBER RING 16AR410HR |
| 24 | 324951-6 | Makita 324951-6 PISTON CAPAR410HR |
| 25 | 424151-9 | Makita 424151-9 REAR CUSHIONAR410HR |
| 26 | 213140-7 | Makita 213140-7 O-RING 11AR410HR |
| 28 | 325592-1 | Makita 325592-1 MAIN PISTONAR410HR |
| 29 | 268227-0 | Makita 268227-0 PIN 3AR410HR |
| 30 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |
| 31 | 162260-3 | Makita 162260-3 TOP CAP GASKETAR410HR |
| 32 | 318235-2 | Makita 318235-2 TOP CAP SPACERAR410HR |
| 33 | 162260-3 | Makita 162260-3 TOP CAP GASKETAR410HR |
| 34 | 424073-3 | Makita 424073-3 CYLINDER SEALAR410HR |
| 35 | 450304-4 | Makita 450304-4 OUTER CYLINDERAR410HR |
| 36 | 213496-8 | Makita 213496-8 O-RING 54AR410HR |
| 37 | 213497-6 | Makita 213497-6 O-RING 31.5AR410HR |
| 38 | 450303-6 | Makita 450303-6 SEPARATERAR410HR |
| 39 | 213495-0 | Makita 213495-0 O-RING 45AR410HR |
| 40 | 213495-0 | Makita 213495-0 O-RING 45AR410HR |
| 41 | 262140-4 | Makita 262140-4 RUBBER RING 23AR410HR |
| 42 | 213987-9 | OTHR New Genuine Makita 213987-9 O-RING 25AR410HR |
| 43 | 331845-8 | Makita 331845-8 CYLINDERAR410HR |
| 44 | 213989-5 | Makita 213989-5 O-RING 30AR410HR |
| 45 | 424171-3 | Makita 424171-3 CUSHION RINGAR410HR |
| 46 | 324949-3 | Makita 324949-3 CUSHION GUIDEAR410HR |
| 47 | 213185-5 | Makita 213185-5 O-RING 12.5AN911H |
| 50 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 51 | 213495-0 | Makita 213495-0 O-RING 45AR410HR |
| 52 | 450302-8 | Makita 450302-8 OUTER SEPARATERAR410HR |
| 53 | 213990-0 | Makita 213990-0 O-RING 31.5AR410HR |
| 54 | 213261-5 | Makita 213261-5 O RING 17 |
| 55 | 450301-0 | Makita 450301-0 INNER SEPARATERAR410HR |
| 56 | 213223-3 | Makita 213223-3 O RING 16 |
| 57 | 211099-2 | Makita 211099-2 BALL BEARING 689ZZ, HR2412 |
| 58 | 450300-2 | Makita 450300-2 UPPER DRUM CAPAR410HR |
| 59 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 60 | 324855-2 | Makita 324855-2 ROTERAR410HR |
| 61 | 413117-4 | Makita 413117-4 BLADEAR410HR |
| 62 | 258024-2 | Makita 258024-2 SPRING PIN 2.5-5AR410HR |
| 64 | 258024-2 | Makita 258024-2 SPRING PIN 2.5-5AR410HR |
| 65 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 66 | 450299-1 | Makita 450299-1 LOWER DRUM CAPAR410HR |
| 67 | 213991-8 | Makita 213991-8 O-RING 35AR410HR |
| 68 | 211099-2 | Makita 211099-2 BALL BEARING 689ZZ, HR2412 |
| 70 | 267215-4 | Makita 267215-4 FLAT WASHER 15, SA7000 |
| 71 | 227186-7 | Makita 227186-7 SPUR GEAR 21AR410HR |
| 72 | 227187-5 | Makita 227187-5 SPUR GEAR 10AR410HR |
| 73 | 227185-9 | Makita 227185-9 INTERNAL SPUR GEAR 4AR410HR |
| 74 | 158512-8 | Makita 158512-8 CARRIER COMPLETEAR410HR |
| 75 | 211138-8 | Makita 211138-8 BALL BEARING 6001LLU |
Sheet 2: Makita AR410HR parts diagram
| No. | Part number | Part name |
|---|---|---|
| 76 | 922252-2 | Makita 922252-2 HEX. SOCKET HEAD BOLAN621 |
| 77 | 243106-3 | Makita 243106-3 PLUGAR410HR |
| 78 | 286281-2 | Makita 286281-2 CAP 9AR410HR |
| 79 | 233961-1 | Makita 233961-1 CONICAL COMPRESSIONAR410HR |
| 80 | 424075-9 | Makita 424075-9 SHEET PACKINGAR410HR |
| 82 | 213987-9 | OTHR New Genuine Makita 213987-9 O-RING 25AR410HR |
| 83 | 413119-0 | Makita 413119-0 FILTERAR410HR |
| 84 | 450311-7 | Makita 450311-7 INLET CAP SPACER, AR410HR |
| 85 | 162261-1 | Makita 162261-1 INLET CAP GASKETAR410HR |
| 86 | 213162-7 | Makita 213162-7 O RING 14 |
| 87 | 213154-6 | Makita 213154-6 O RING 14 |
| 88 | 413124-7 | Makita 413124-7 INLET FILTERAR410HR |
| 89 | 331803-4 | Makita 331803-4 PIPE 13, AR410HR |
| 90 | 213162-7 | Makita 213162-7 O RING 14 |
| 92 | 866088-8 | Makita 866088-8 AR410HR NAME PLATEAR410HR |
| 93 | 265176-2 | Makita 265176-2 PAN.HD.SCREW M5X22AN911H |
| 94 | 419843-3 | Makita 419843-3 HOOK, AN911H |
| 95 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 96 | 162255-6 | Makita 162255-6 HOOK BASE, |
| 97 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 98 | 819330-6 | Makita 819330-6 MAKITA ROGO LABEL RAR410HR |
| 99 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 100 | 819331-4 | Makita 819331-4 MAKITA ROGO LABEL LAR410HR |
| 101 | 816918-3 | Makita 816918-3 INDICATION LABELAR410HR |
| 102 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 103 | 231236-2 | Makita 231236-2 COMPRESSION SPRING 3AN901 |
| 104 | 162189-3 | Makita 162189-3 LOCK PIN 6, AN611 |
| 105 | 962103-7 | Makita 962103-7 RETAINING RING R-24, AN611 |
| 106 | 345781-2 | Makita 345781-2 CUP WASHER, AR410HR |
| 107 | 234046-6 | Makita 234046-6 COMPRESSION SPRING 1AR410HR |
| 108 | 234045-8 | Makita 234045-8 COMPRESSION SPRING 9AR410HR |
| 109 | 262123-4 | Makita 262123-4 RUBBER RING 14AR410HR |
| 110 | 213971-4 | Makita 213971-4 O-RING 19AR410HR |
| 111 | 324854-4 | Makita 324854-4 FEED PISTON, AR410HR |
| 112 | 262130-7 | Makita 262130-7 URETHANE RING 4AN911H |
| 113 | 213007-9 | Makita 213007-9 O RING 8 |
| 114 | 234042-4 | Makita 234042-4 COMPRESSION SPRING 3AR410HR |
| 115 | 310246-3 | Makita 310246-3 FEEDING CLAW, AR410HR |
| 116 | 268193-1 | Makita 268193-1 PIN 4.5, AR410HR |
| 117 | 158515-2 | Makita 158515-2 DRIVER GUIDE COMPLETAR410HR |
| 118 | 162262-9 | Makita 162262-9 DRIVER GUIDE GASKETAR410HR |
| 119 | 266086-6 | Makita 266086-6 HEX. SOCKET HEAD BOLT M5X |
| 120 | 451254-6 | Makita 451254-6 CONTACT ARM COVER, AR410HR |
| 121 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 122 | 310217-0 | Makita 310217-0 LOCK PIN, AR410HR |
| 123 | 234003-4 | Makita 234003-4 COMPRESSION SPRING 5AR410HR |
| 124 | 419814-0 | Makita 419814-0 DOOR, AN620H |
| 125 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 126 | 262120-0 | Makita 262120-0 URETHANE RING 3AN450H |
| 127 | 268174-5 | Makita 268174-5 PIN 4, AR410HR |
| 128 | 922246-7 | Makita 922246-7 HEX SOCKET HEAD BOLT M5X HM0811 |
| 129 | 267343-5 | Makita 267343-5 FLAT WASHER 5AN911H |
| 130 | 256774-3 | Makita 256774-3 PIN 5AR410HR |
| 131 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 133 | 158909-1 | Makita 158909-1 MAGAZINE CAP COMPLETAR410HR |
| 134 | 450788-6 | Makita 450788-6 TRIGGER VALVE GUIDEAR410HR |
| 135 | 213275-4 | Makita 213275-4 O RING 18 |
| 136 | 450310-9 | Makita 450310-9 PILOT VALVEAR410HR |
| 137 | 213134-2 | Makita 213134-2 O-RING 11AR410HR |
| 138 | 213984-5 | Makita 213984-5 O-RING 8AR410HR |
| 139 | 213985-3 | Makita 213985-3 O-RING 8AR410HR |
| 140 | 213986-1 | Makita 213986-1 O-RING 2AR410HR |
| 141 | 234081-4 | Makita 234081-4 COMPRESSION SPRING 3AR410HR |
| 142 | 324853-6 | |
| 143 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 144 | 213187-1 | Makita 213187-1 O-RING 13.5AR410HR |
| 145 | 213310-8 | Makita 213310-8 O-RING 20 6805BV |
| 146 | 450308-6 | Makita 450308-6 TRIGGER VALVE CASEAR410HR |
| 147 | 344265-7 | Makita 344265-7 IDLERAN901 |
| 148 | 450344-2 | Makita 450344-2 TRIGGER, AR410HR |
| 149 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 150 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 151 | 450314-1 | Makita 450314-1 HOLDER, AR410HR |
| 152 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 153 | 234044-0 | Makita 234044-0 COMPRESSION SPRING 6AR410HR |
| 154 | 310247-1 | Makita 310247-1 STOPPERAR410HR |
| 155 | 324745-9 | Makita 324745-9 ADJUSTER SHAFT, AN620H |
| 156 | 233491-2 | Makita 233491-2 COMPRESSION SPRING 2AN911H |
| 157 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 158 | 158747-1 | Makita 158747-1 ADJUSTER COMPLETE, AT450H |
| 159 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 160 | 951010-9 | Makita 951010-9 SPRING PIN 2-14 |
| 161 | 310201-5 | Makita 310201-5 ADJUSTER PIECEAN911H |
| 163 | 233511-2 | Makita 233511-2 TORSION SPRING 4AR410HR |
| 164 | 310222-7 | Makita 310222-7 CHACK, AR410HR |
| 165 | 261118-4 | Makita 261118-4 WASHERAR410HR |
| 166 | 310221-9 | Makita 310221-9 CHACK, AR410HR |
| 167 | 233511-2 | Makita 233511-2 TORSION SPRING 4AR410HR |
| 168 | 310220-1 | Makita 310220-1 CONTACT TOP, AR410HR |
| 169 | 268173-7 | Makita 268173-7 PIN 3.5AR410HR |
| 170 | 424005-0 | Makita 424005-0 NOSE ADAPTER, AR410HR |
