Bosch AQUATAK ECO

Bosch AQUATAK ECO high pressure cleaner: exploded parts diagram, 3 sheets, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AQUATAK ECO: 38 positions on 3 sheets

Bosch AQUATAK ECO parts list (3 sheets)

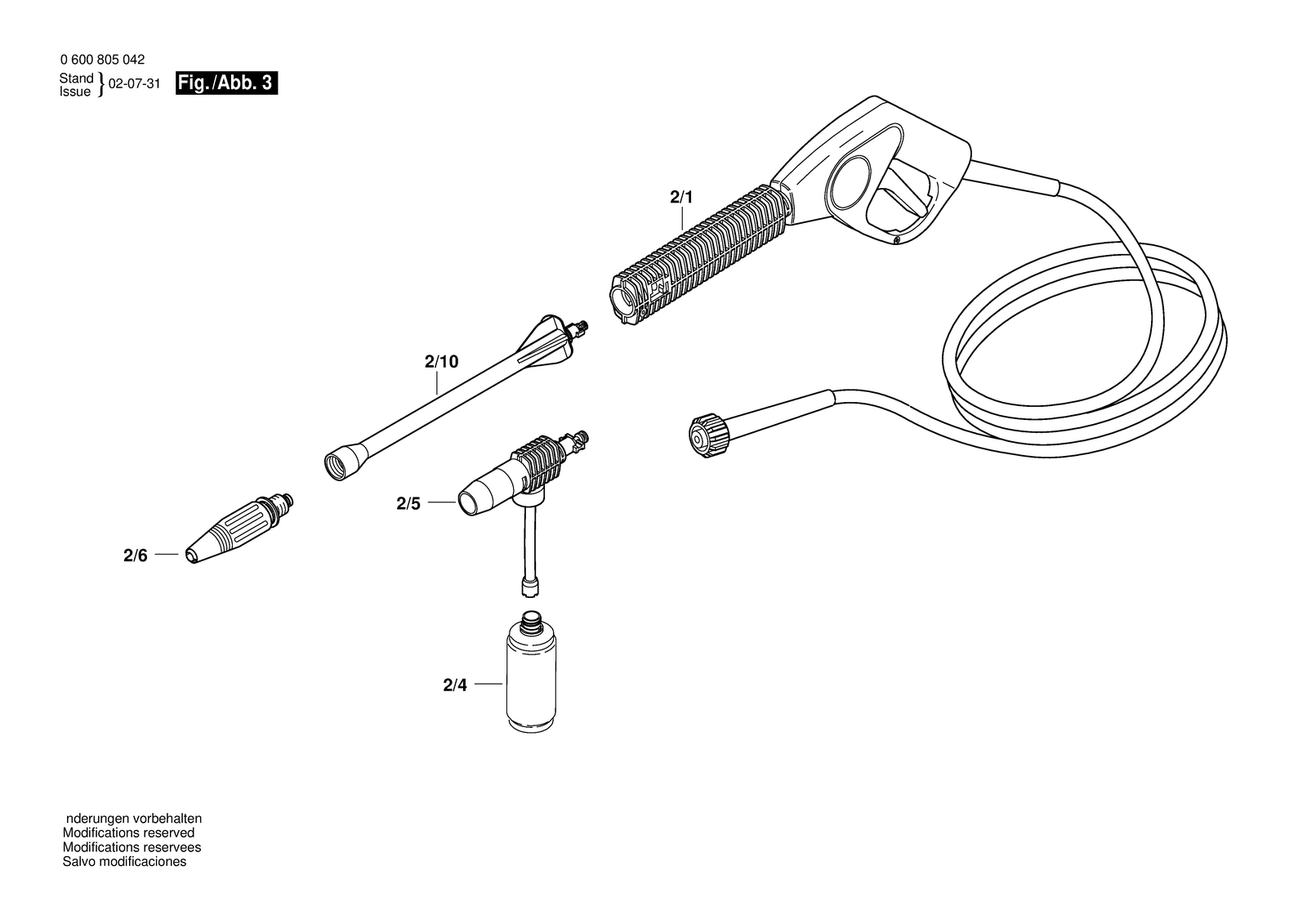

Bosch AQUATAK ECO parts diagram, sheet 1Bosch AQUATAK ECO parts diagram, sheet 2Bosch AQUATAK ECO parts diagram, sheet 3
No.Part numberPart name
1/1F016F03624Control Head
1/10F016F02917Ball Bearing
1/11F016F02918Cable Cleat
1/11/89F016F02923Cable Cleat
1/11/90F016F02924Nut
1/12F016F02919End Shield
1/12/59F016F02900O-Ring
1/12/81F016F02907Air Filter
1/13F016F03151Motor
1/13/53F016F02902Washer
1/13/56F016F02895Screw
1/13/58F016F02903Rubber Buffer
1/13/82F016F02906Air Filter
1/14F016F03058Power supply cord
1/14/79F016F02904Grommet
1/15F016F03373Switch
1/2F016F03324Seal
1/3F016F02910Cylinder Head
1/4F016F02911Connector
1/4/3F016F02894Screw
1/4/4F016F02901O-Ring
1/5/70F016F02905Strainer
1/5/71F016102409Threaded Connection 3/4"
1/6F016F02913Valve
1/7F016F02914Housing
1/7/11F016F02899O-Ring 63,17X2,62 MM
1/8F016F02915Switch
1/9F016F03150Housing
1/9/73F016F02898Screw
1/9/77F016F02896Screw
1/9/84F016F02897Screw
1/9/91F016F02925Screw
1/9/92F016F02926Cable Cleat
2/1F016F03148Handle
2/10F016F02932Extension Tube
2/4F016F02928Container
2/5F016F02929Nozzle
2/6F016F03149Nozzle
