Bosch AQUATAK 100

Bosch AQUATAK 100 high pressure cleaner: exploded parts diagram, 3 sheets, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AQUATAK 100: 54 positions on 3 sheets

Bosch AQUATAK 100 parts list (3 sheets)

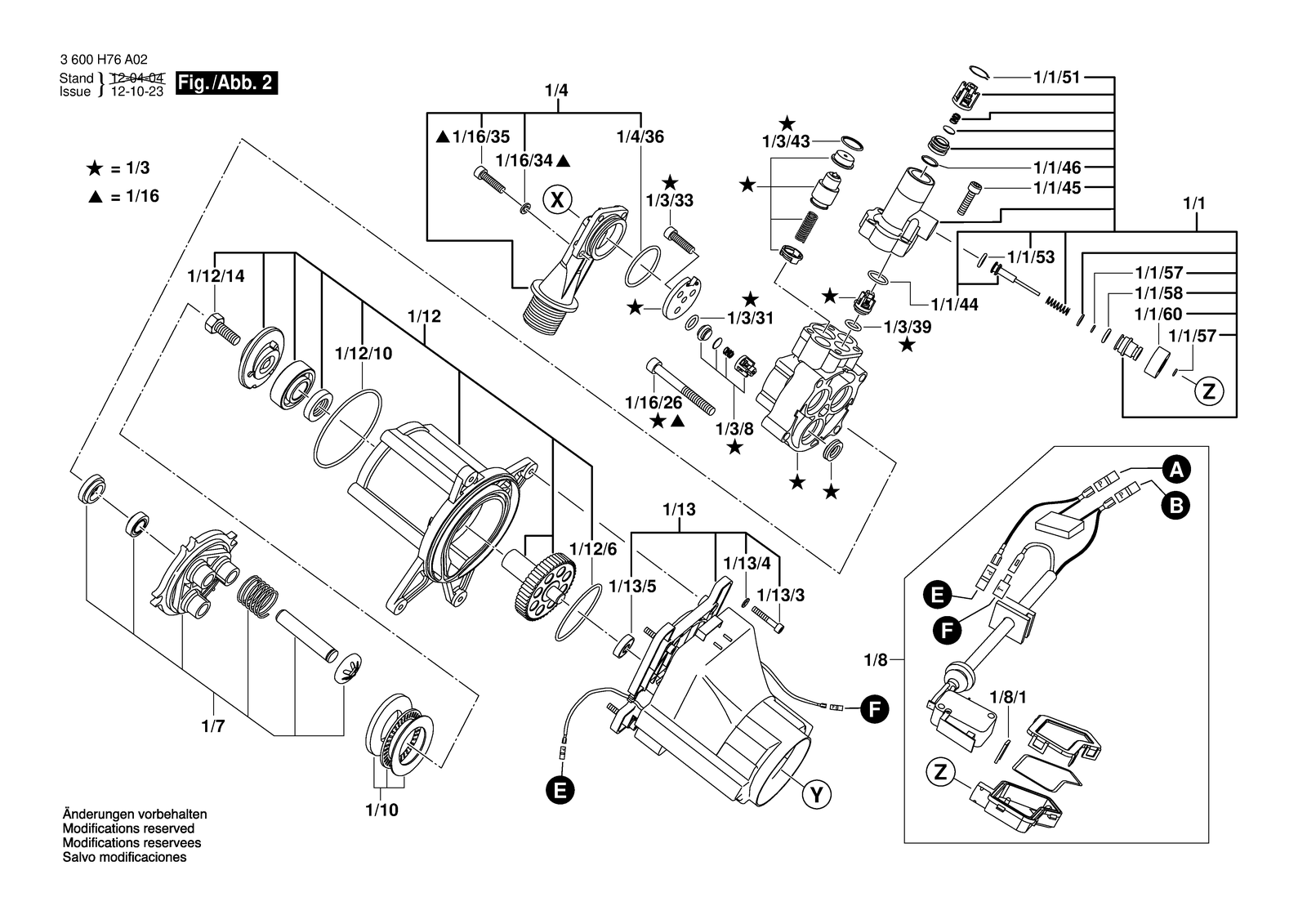

Bosch AQUATAK 100 parts diagram, sheet 1Bosch AQUATAK 100 parts diagram, sheet 2Bosch AQUATAK 100 parts diagram, sheet 3
No.Part numberPart name
1/1F016F04073Control Head
1/1/44F016F04074O-Ring
1/1/45F016F04075Screw
1/1/46F016F04082O-Ring
1/1/51F016F04076Baffle
1/1/53F016F04077O-Ring
1/1/57F016F04079O-Ring
1/1/58F016F04080O-Ring
1/1/60F016F04081Screw Cap
1/10F016F04065Ball Bearing
1/11F016F02918Cable Cleat
1/12F016F04062End Shield
1/12/10F016F04063O-Ring
1/12/14F016F04064Screw
1/12/6F016F04061Seal Ring
1/13F016F04052Motor
1/13/3F016F04053Bolt
1/13/4F016F04054Mat seal
1/13/5F016F04055Bearing
1/16F016F04056Parts Set
1/16/26F016F04057Screw
1/16/34F016F04058Mat seal
1/16/35F016F04059Screw
1/3F016F04067Housing
1/3/31F016F04068O-Ring
1/3/33F016F04069Screw
1/3/39F016F04070O-Ring
1/3/43F016F04071O-Ring
1/3/8F016F04072Valve
1/4F016F04060Connector
1/4/36F016F04061Seal Ring
1/69F016F03087Nut 3/4 Flang.nyl
1/7F016F04066Housing
1/70F016F02905Strainer
1/71F016F03359Threaded Connection
1/8F016F04083Switch
1/8/1F016F03862Hook
1/9/103F016F03336Screw
1/9/73F016F02898Screw
1/9/77F016F02896Screw
1/9/84F016F03404Screw
1/9/92F016F03035Clamping Piece
1/9/93F016F03335Screw
2/1F016F03148Handle
2/1/2F016F03633O-Ring Blue 9,92X2,62 MM
2/1/3F016F03634O-Ring Black 10,0X2,0 MM
2/10F016F02932Extension Tube
2/5F016F02928Container
2/6F016F03149Nozzle
2/6/1F016F03330O-Ring 7,6X2,62 NBR70
8990600876A00High Pressure Cleaner
8990600876A30High Pressure Cleaner
8990600876A40High Pressure Cleaner
8990600876A70High Pressure Cleaner
