Bosch AQT 45-14 X

Bosch AQT 45-14 X high pressure cleaner: exploded parts diagram, 4 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AQT 45-14 X: 42 positions on 4 sheets

Bosch AQT 45-14 X parts list (4 sheets)

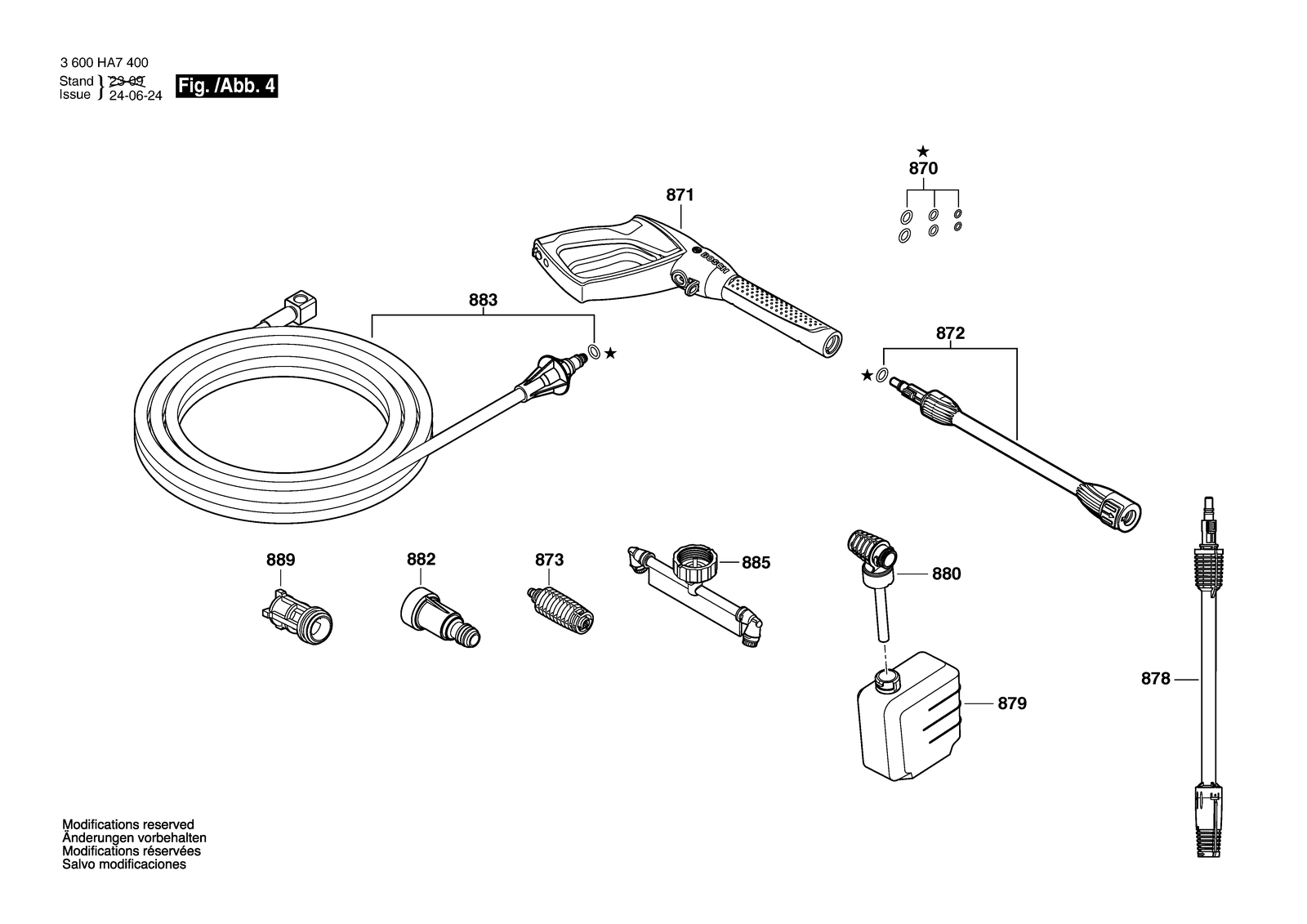

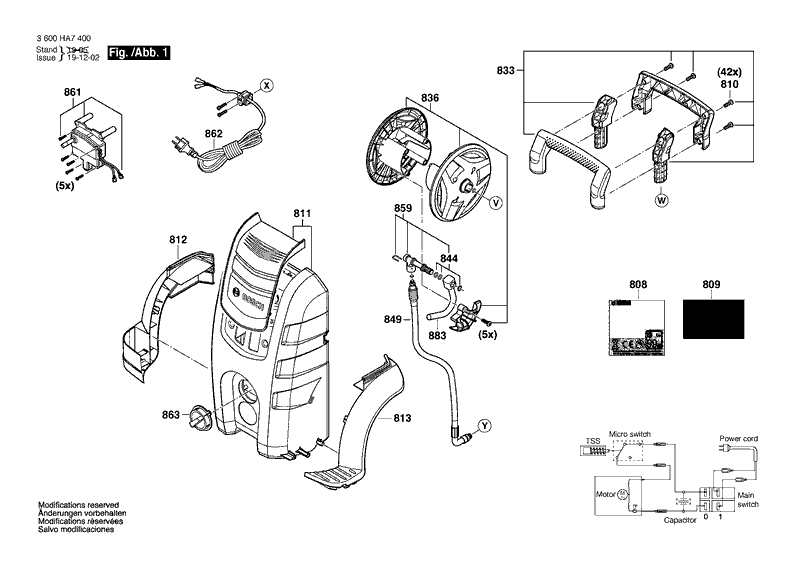

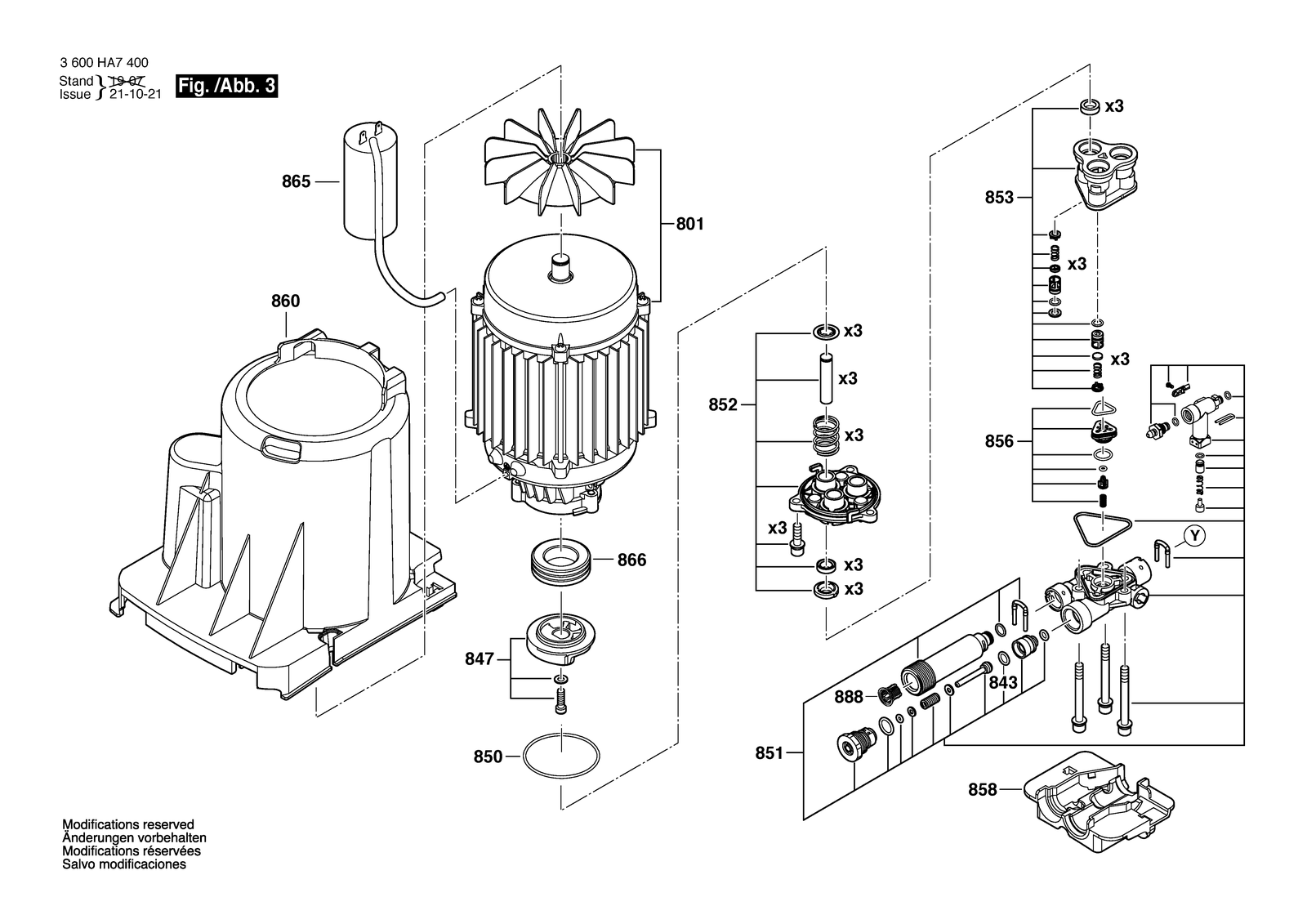

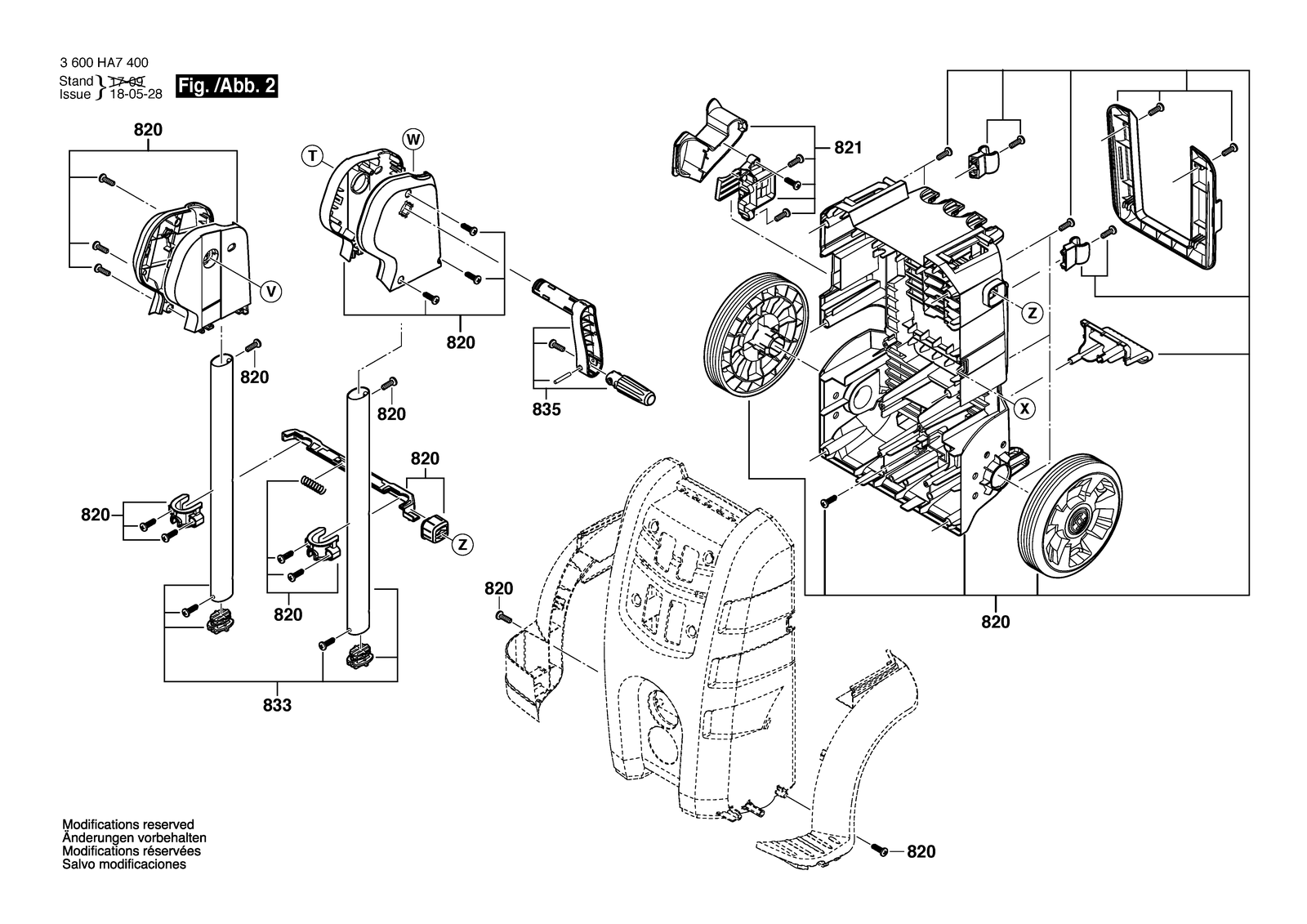

Bosch AQT 45-14 X parts diagram, sheet 1Bosch AQT 45-14 X parts diagram, sheet 2Bosch AQT 45-14 X parts diagram, sheet 3Bosch AQT 45-14 X parts diagram, sheet 4
No.Part numberPart name
801F016F04644Motor
808F016F05099Nameplate
809F016F05435Warning Label
810F016F04810Torx SH cap screw
811F016F04632Front cover
812F016F04616Front cover
813F016F04617Front cover
820F016F04623Cover
821F016F04650Cover
833F016F05104Handle
835F016F04649Set Of Handles
836F016F04666Hose Reel Carrier
843F016F05402O-Ring
844F016F05403O-Ring Kit
847F016F05046Wobble Plate
849F016F05360High-Pressure Hose 0,4M
850F016F04459O-Ring
851F016F04643Pump head
852F016F04642Piston Guide
853F016F04440Pump unit
856F016F04460Non-Return Valve
858F016F04627Pump Mounting
859F016F04651Connector
860F016F04652Motor cover
861F016F04636Switch Box
862F016F04637Power supply cord UK
862F016F04638Power supply cord EU
862F016F04641Power supply cord Ch
863F016F04613Switch Actuator
865F016F05184Capacitor
866F016F04646Bearing set
870F016F04458Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6)
871F016F05512Trigger
872F016F05281Lance
873F016F05553Fixed fan jet nozzle Blue 20°
878F016F05865Vario Jet Fan Lance
879F016F05279Bottle
880F016F06234High pressure foam nozzle
882F016F05855Water filter
883F016F04667High-Pressure Hose 8M
888F016F05661Water filter
889F016F06182Water filter
