Bosch AQT 42-13 high pressure cleaner: exploded parts diagram, 3 sheets, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AQT 42-13: 39 positions on 3 sheets

Bosch AQT 42-13 parts list (3 sheets)

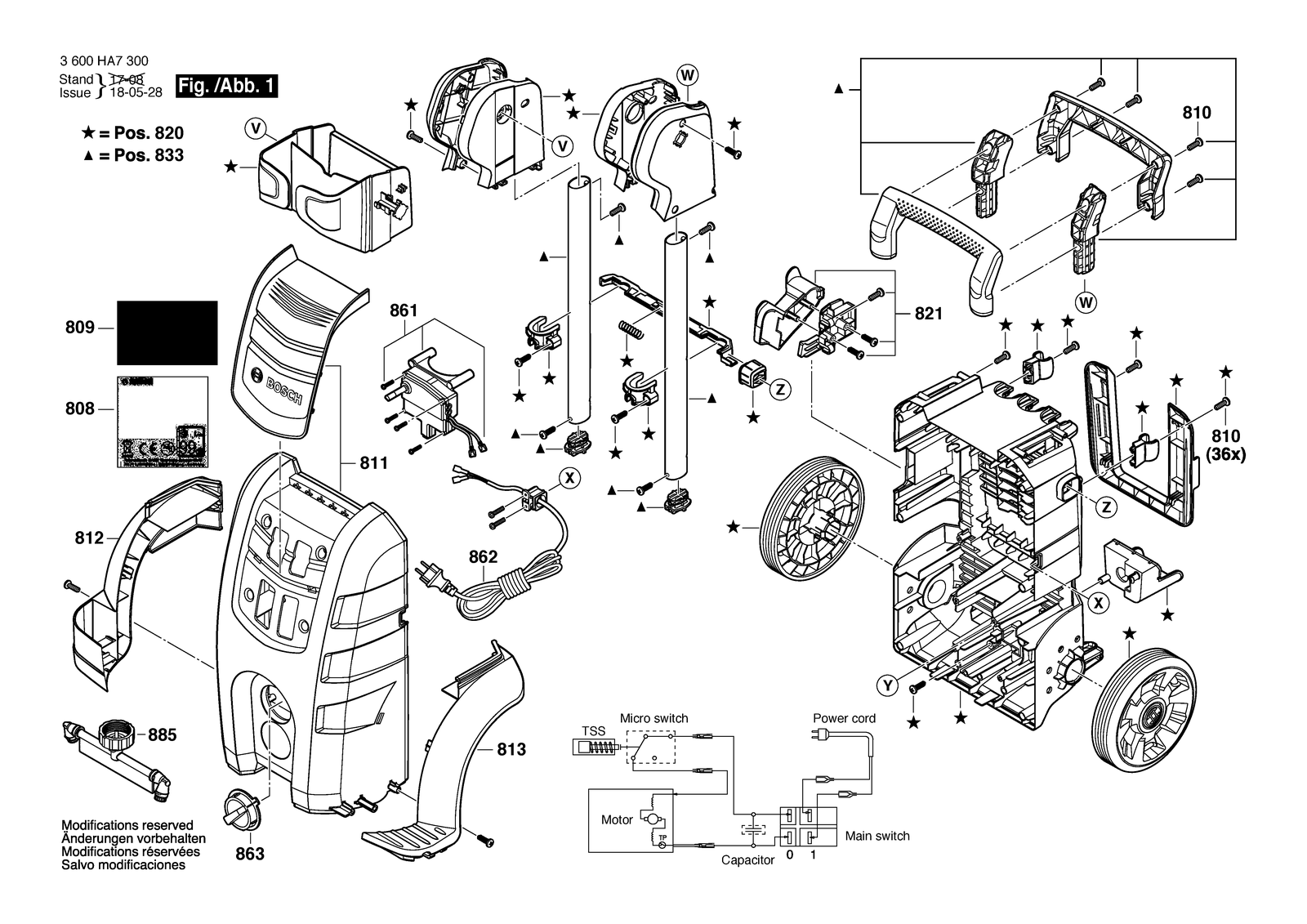

Bosch AQT 42-13 parts diagram, sheet 1Bosch AQT 42-13 parts diagram, sheet 2Bosch AQT 42-13 parts diagram, sheet 3
No.Part numberPart name
801F016F04574Motor
808F016F05097Nameplate
809F016F05435Warning Label
810F016F04810Torx SH cap screw
811F016F04615Front cover
812F016F04616Front cover
813F016F04617Front cover
820F016F04618Cover
821F016F04626Cover
833F016F05104Handle
842F016F05637O-Ring Ø 63 X 2,65 MM
843F016F05402O-Ring
850F016F04459O-Ring
851F016F04570Pump head
852F016F04441Piston Guide
853F016F04440Pump unit
854F016F05023Thrust Bearing
855F016F04571Gear Box
856F016F04460Non-Return Valve
857F016F04681Clip
858F016F04627Pump Mounting
860F016F04622Motor cover
861F016F04439Switch Box
862F016F04483Power supply cord UK
862F016F04484Power supply cord EU
862F016F04490Power supply cord Ch
863F016F04613Switch Actuator
870F016F04458Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6)
871F016F05280Trigger
872F016F05135Lance
873F016F05554Fixed fan jet nozzle White 20°
875F016F05567Nozzle Black
879F016F05279Bottle
880F016F06234High pressure foam nozzle
882F016F05052Water filter
882F016F05855Water filter
883F016F05032High-Pressure Hose 7M
888F016F05661Water filter
889F016F06182Water filter
