Bosch AQT 33-11

Bosch AQT 33-11 high pressure cleaner: exploded parts diagram, 3 sheets, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch AQT 33-11: 45 positions on 3 sheets

Bosch AQT 33-11 parts list (3 sheets)

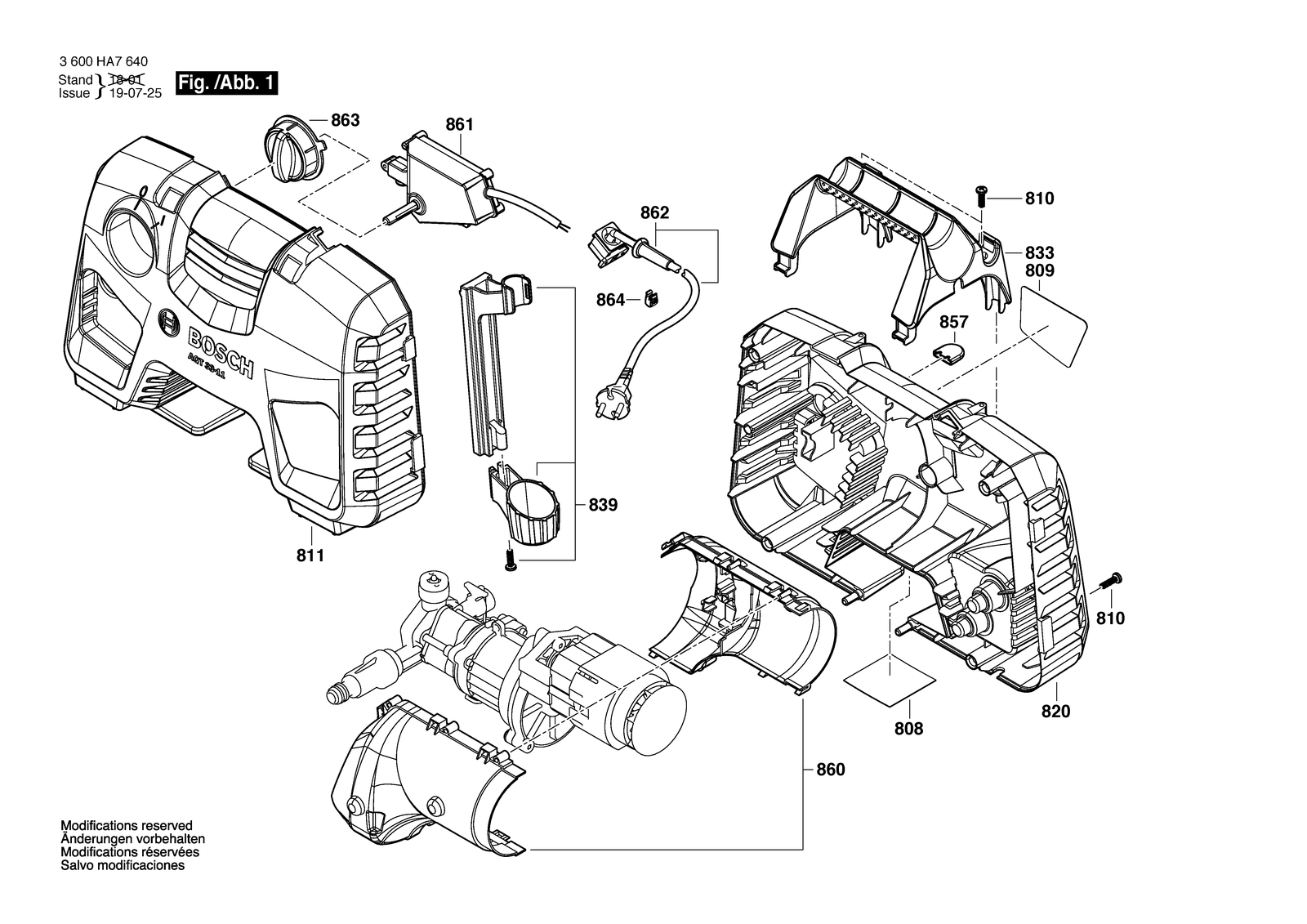

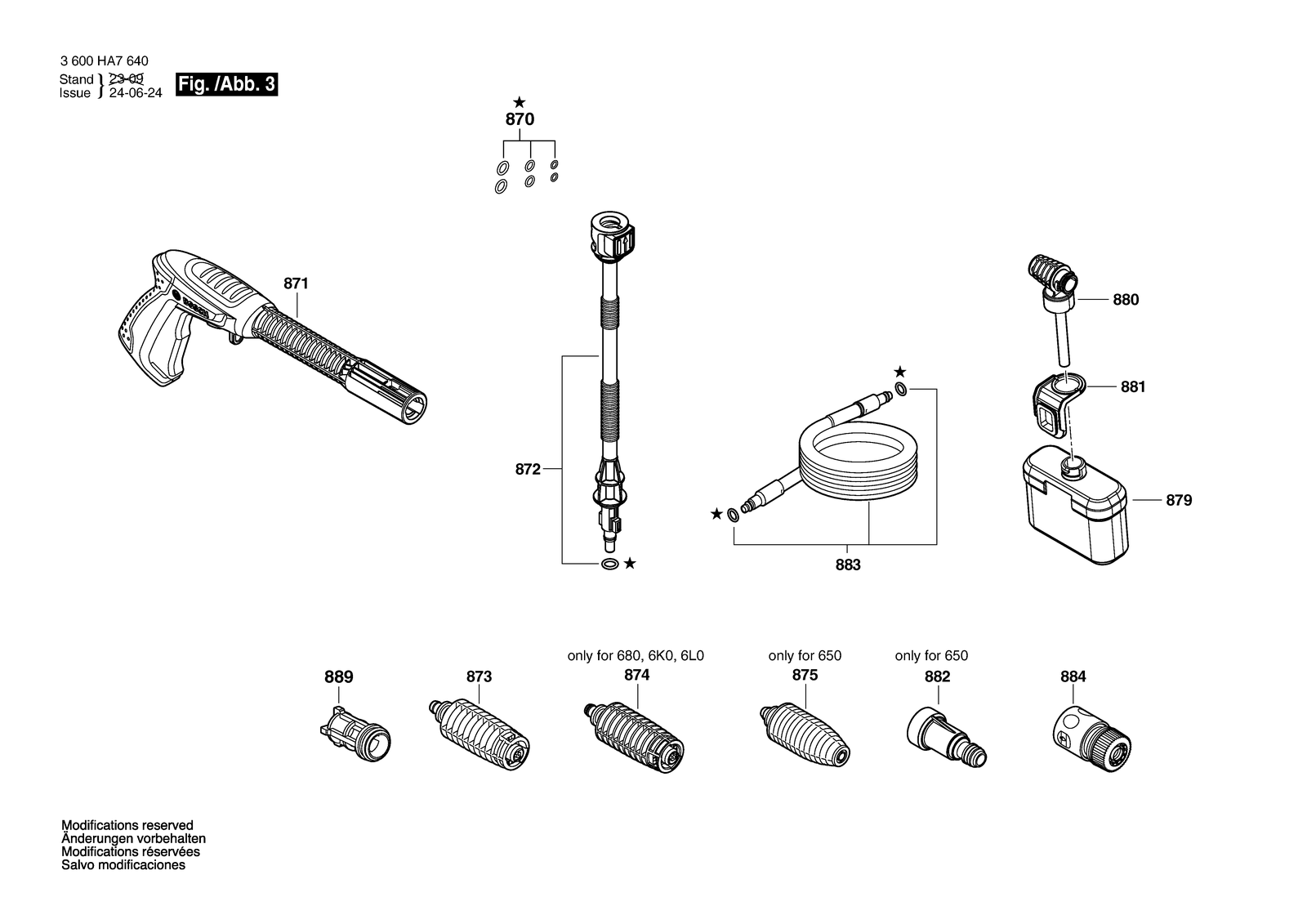

Bosch AQT 33-11 parts diagram, sheet 1Bosch AQT 33-11 parts diagram, sheet 2Bosch AQT 33-11 parts diagram, sheet 3
No.Part numberPart name
801F016F04804Motor
801F016F04909Motor
808F016F05078Nameplate
808F016F05079Nameplate
808F016F05080Nameplate
809F016F04811Warning Label
810F016F04810Torx SH cap screw
811F016F04791Front cover
820F016F04792Cover
833F016F04793Carrying Handle
839F016F04807Holder
843F016F05402O-Ring
850F016F04459O-Ring
851F016F04801Pump head
852F016F04799Piston Guide
853F016F04798Pump unit
854F016F04803Thrust Bearing
855F016F04802Gear Box
856F016F04809Non-Return Valve
857F016F04681Clip
860F016F04806Motor cover
861F016F04797Switch Box
862F016F04814Power supply cord
862F016F04815Power supply cord
862F016F04816Power supply cord
862F016F04817Power supply cord
862F016F04908Power supply cord
862F016F05134Power supply cord
863F016F04805Switch Actuator
864F016F05432Clip
870F016F04458Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6)
871F016F04796Trigger
872F016F05135Lance
873F016F05554Fixed fan jet nozzle White 20°
874F016F05401Wide Angle Nozzle White
875F016F05362Nozzle White
879F016F05036Bottle 450ML
880F016F05555High pressure foam nozzle
881F016F04795Clip
882F016F05066Water filter
883F016F04583High-Pressure Hose 3 M
883F016F05025High-Pressure Hose 6M 150 Bar
884F016F05492Hose Coupling
888F016F05661Water filter
889F016F06182Water filter
