Bosch ANGLE EXACT ION 30-300

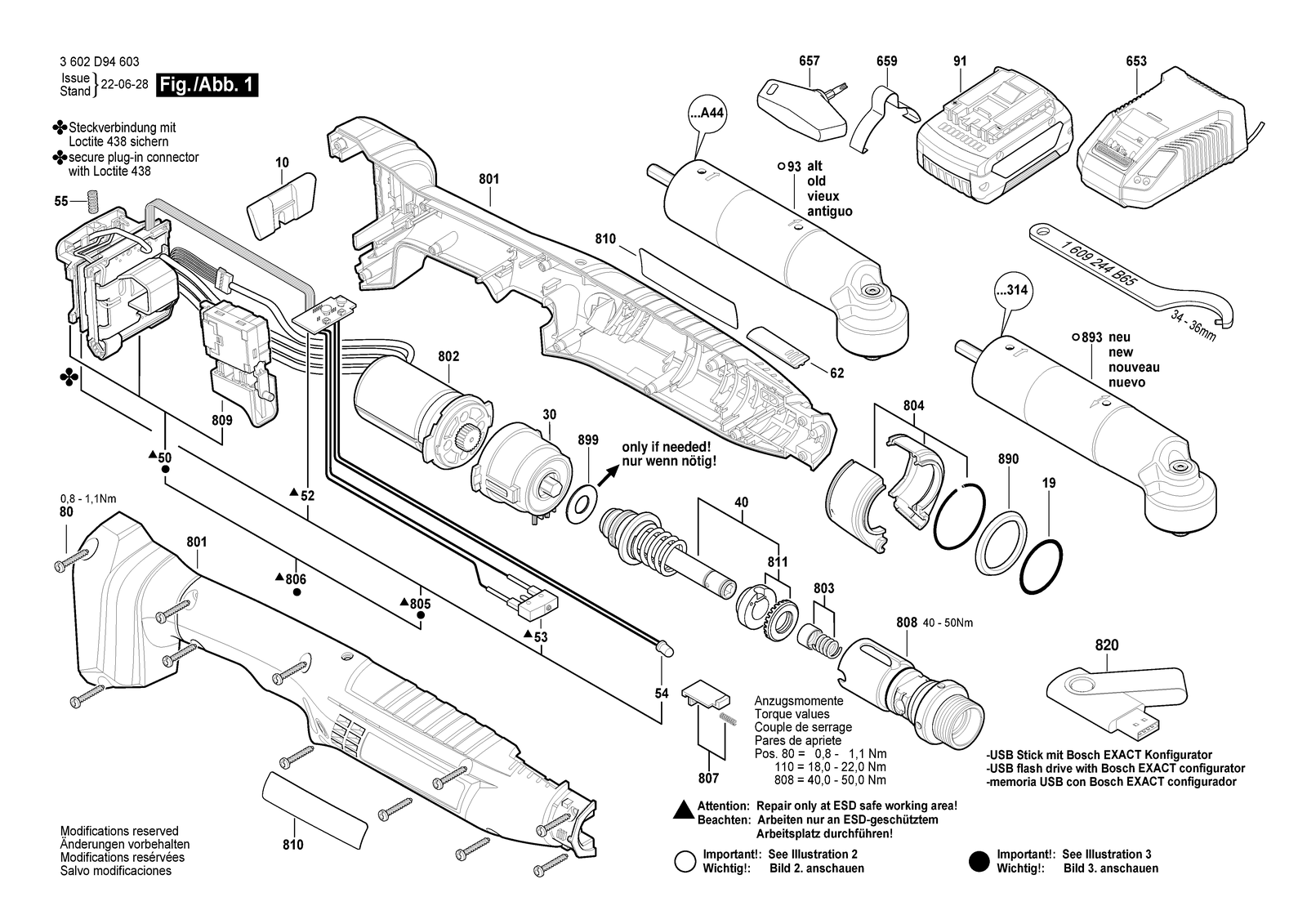

Bosch ANGLE EXACT ION 30-300 pn-accu-screwdriver: exploded parts diagram, 3 sheets, 268 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

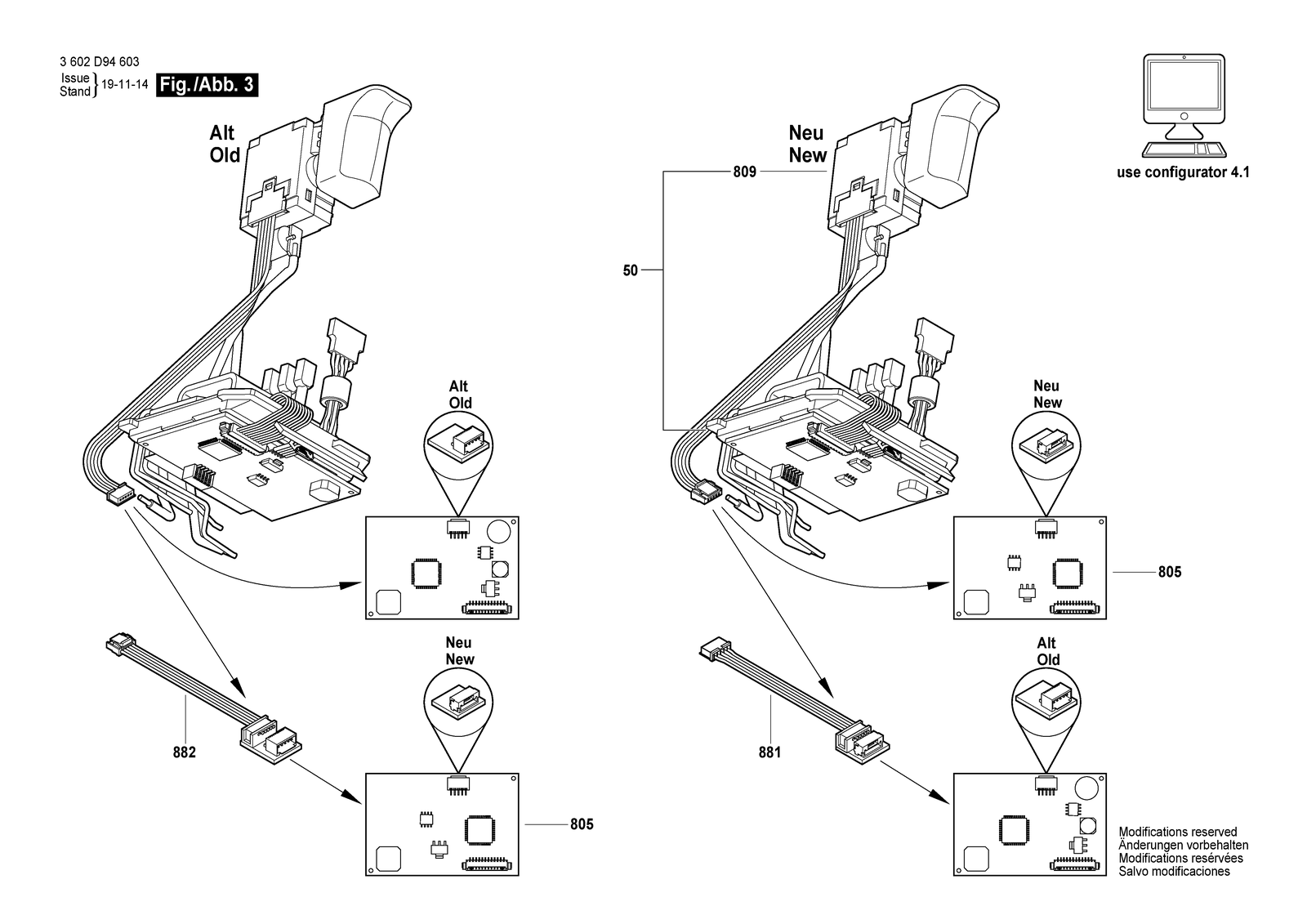

All parts of Bosch ANGLE EXACT ION 30-300: 268 positions on 3 sheets
Bosch ANGLE EXACT ION 30-300 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 19 | 1900210125 | O-Ring 25X2,5 MM |
| 19 | 1900210125 | O-Ring 25X2,5 MM |
| 19 | 1900210125 | O-Ring 25X2,5 MM |
| 30 | 3607030472 | Planetary Gear Train |
| 30 | 3607030469 | Planetary Gear Train |
| 30 | 3607030469 | Planetary Gear Train |
| 30 | 3607030472 | Planetary Gear Train |
| 40 | 3607031568 | Assembly kit |
| 40 | 3607031567 | Assembly kit |
| 40 | 3607031567 | Assembly kit |
| 40 | 3607031568 | Assembly kit |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 54 | 1607502626 | Light-Emitting-Diode |
| 54 | 1607502626 | Light-Emitting-Diode |
| 54 | 1607502626 | Light-Emitting-Diode |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 659 | 3601923017 | Suspension Loop |
| 659 | 3601923017 | Suspension Loop |
| 659 | 3601923017 | Suspension Loop |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 801 | 3607031756 | Housing Assembly |
| 801 | 3607031756 | Housing Assembly |
| 801 | 3607031756 | Housing Assembly |
| 802 | 3607031765 | Motor assembly |
| 802 | 3607031770 | Motor assembly |
| 802 | 3607031765 | Motor assembly |
| 802 | 3607031770 | Motor assembly |
| 803 | 3607031758 | Sleeve assembly |
| 803 | 3607031758 | Sleeve assembly |
| 803 | 3607031758 | Sleeve assembly |
| 804 | 3607031759 | Led-Holder |
| 804 | 3607031759 | Led-Holder |
| 804 | 3607031759 | Led-Holder |
| 805 | 3607031912 | Electronics Module |
| 805 | 3607031914 | Electronics Module |
| 805 | 3607031912 | Electronics Module |
| 805 | 3607031914 | Electronics Module |
| 806 | 3607031913 | Drive electronics |
| 806 | 3607031915 | Drive electronics |
| 806 | 3607031913 | Drive electronics |
| 806 | 3607031915 | Drive electronics |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 808 | 3607031768 | Angle Flange |
| 808 | 3607031768 | Angle Flange |
| 808 | 3607031768 | Angle Flange |
| 809 | 3607031884 | Switch |
| 809 | 3607031884 | Switch |
| 809 | 3607031884 | Switch |
| 810 | 16070312C1 | Set Of Plates |
| 810 | 16070312CB | Set Of Plates |
| 810 | 3607031849 | Set Of Plates |
| 810 | 3607031850 | Set Of Plates |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 890 | 3600106027 | Parts Set 5 Pce., Black |
| 890 | 3600106028 | Parts Set 5 Pce., Red |
| 890 | 3600106029 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106030 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106031 | Parts Set 5 Pce., Orange |
| 890 | 3600106032 | Parts Set 5 Pce,. Grey |
| 890 | 3600106033 | Parts Set 5 Pce,. White |
| 890 | 3600106027 | Parts Set 5 Pce., Black |
| 890 | 3600106028 | Parts Set 5 Pce., Red |
| 890 | 3600106029 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106030 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106031 | Parts Set 5 Pce., Orange |
| 890 | 3600106032 | Parts Set 5 Pce,. Grey |
| 890 | 3600106033 | Parts Set 5 Pce,. White |
| 890 | 3600106027 | Parts Set 5 Pce., Black |
| 890 | 3600106028 | Parts Set 5 Pce., Red |
| 890 | 3600106029 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106030 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106031 | Parts Set 5 Pce., Orange |
| 890 | 3600106032 | Parts Set 5 Pce,. Grey |
| 890 | 3600106033 | Parts Set 5 Pce,. White |
| 893 | 3607020314 | Angle head |
| 893 | 3607020314 | Angle head |
| 893 | 3607020314 | Angle head |
| 893/1 | 1600A01L6D | Drive Shaft |
| 893/1 | 1600A01L6D | Drive Shaft |
| 893/10 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 893/10 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 893/12 | 3608870BZ0 | Groove ball bearing 6000-2Z 10X26X8 |
| 893/12 | 3608870BZ0 | Groove ball bearing 6000-2Z 10X26X8 |
| 893/13 | 3600118006 | Spring retaining ring |
| 893/13 | 3600118006 | Spring retaining ring |
| 893/14 | 3600210056 | O-Ring 26,0X1,0 MM |
| 893/14 | 2600210056 | O-Ring 31,0X2,0 MM |
| 893/15 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 893/15 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 893/16 | 3608872968 | O-Ring 28,00X1,00 |
| 893/16 | 3608872968 | O-Ring 28,00X1,00 |
| 893/17 | 3608870BZ1 | Groove ball bearing |
| 893/17 | 3608870BZ1 | Groove ball bearing |
| 893/18 | 3608874921 | Spacer |
| 893/18 | 3608874921 | Spacer |
| 893/19 | 1610910069 | Needle bearing |
| 893/19 | 1610910069 | Needle bearing |
| 893/2 | 3608870BU7 | Housing |
| 893/2 | 3608870BU7 | Housing |
| 893/20 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 893/20 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 893/21 | 3600283013 | Radial Seal |
| 893/21 | 3600283013 | Radial Seal |
| 893/22 | 3600320016 | Guide Sleeve |
| 893/22 | 3600320016 | Guide Sleeve |
| 893/23 | 1604611004 | Compression Spring |
| 893/23 | 1604611004 | Compression Spring |
| 893/24 | 3608879137 | Pressure Spindle |
| 893/24 | 3608879137 | Pressure Spindle |
| 893/25 | 3608874669 | Needle bearing INA 8,00X12,00X10,00 |
| 893/25 | 3608874669 | Needle bearing INA 8,00X12,00X10,00 |
| 893/26 | 3603100000 | Straight Pin |
| 893/26 | 3603100000 | Straight Pin |
| 893/27 | 3608874923 | Shim 0,1 |
| 893/27 | 3608874924 | Shim 0,05 |
| 893/27 | 3608874923 | Shim 0,1 |
| 893/27 | 3608874924 | Shim 0,05 |
| 893/29 | 3608872265 | Shim 0,15 |
| 893/29 | 3608872265 | Shim 0,15 |
| 893/3 | 3608870BU5 | Spindle Housing |
| 893/3 | 3608870BU5 | Spindle Housing |
| 893/4 | 3608870D11 | Bevel Gear |
| 893/4 | 3608870D11 | Bevel Gear |
| 893/5 | 3608870BU3 | Crown Gear |
| 893/5 | 3608870BU3 | Crown Gear |
| 893/6 | 3608870BU4 | Bearing Flange |
| 893/6 | 3608870BU4 | Bearing Flange |
| 893/7 | 3608870BV0 | Planetary-Gear Carrier |
| 893/7 | 3608870BV0 | Planetary-Gear Carrier |
| 893/8 | 2917530083 | Straight Pin DIN 6325-3M6X24 |
| 893/8 | 2917530083 | Straight Pin DIN 6325-3M6X24 |
| 893/80 | 3609202C20 | Bevel gear |
| 893/80 | 3609202C20 | Bevel gear |
| 893/9 | 3606316099 | Cylindrical Gear Z=16 |
| 893/9 | 3606316099 | Cylindrical Gear Z=16 |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 93 | 3607020314 | Angle head |
| 93 | 3607020314 | Angle head |
| 93 | 3607020314 | Angle head |
| 93/100 | 3609202A32 | Housing |
| 93/100 | 3609202A32 | Housing |
| 93/100 | 3609202A32 | Housing |
| 93/102 | 3609202A36 | Drive Shaft |
| 93/102 | 3609202A36 | Drive Shaft |
| 93/102 | 3609202A36 | Drive Shaft |
| 93/139 | 3605106093 | Spindle Housing |
| 93/139 | 3605106093 | Spindle Housing |
| 93/139 | 3605106093 | Spindle Housing |
| 93/140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 93/140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 93/140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 93/145 | 3600905015 | Groove ball bearing |
| 93/145 | 3600905015 | Groove ball bearing |
| 93/145 | 3600905015 | Groove ball bearing |
| 93/147 | 1610910069 | Needle bearing |
| 93/147 | 1610910069 | Needle bearing |
| 93/147 | 1610910069 | Needle bearing |
| 93/148 | 3608874921 | Spacer |
| 93/148 | 3608874921 | Spacer |
| 93/148 | 3608874921 | Spacer |
| 93/149 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 93/149 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 93/149 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 93/150 | 1610210116 | O-Ring 14,0X2,0 MM |
| 93/150 | 1610210116 | O-Ring 14,0X2,0 MM |
| 93/150 | 1610210116 | O-Ring 14,0X2,0 MM |
| 93/151 | 3606333079 | Bevel Gear |
| 93/151 | 3606333079 | Bevel Gear |
| 93/151 | 3606333079 | Bevel Gear |
| 93/152 | 3605700190 | Bearing Flange |
| 93/152 | 3605700190 | Bearing Flange |
| 93/152 | 3605700190 | Bearing Flange |
| 93/153 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 93/153 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 93/153 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 93/155 | 3603100000 | Straight Pin |
| 93/155 | 3603100000 | Straight Pin |
| 93/155 | 3603100000 | Straight Pin |
| 93/157 | 3608874669 | Needle bearing INA 8,00X12,00X10,00 |
| 93/157 | 3608874669 | Needle bearing INA 8,00X12,00X10,00 |
| 93/157 | 3608874669 | Needle bearing INA 8,00X12,00X10,00 |
| 93/159 | 3608874923 | Shim 0,1 |
| 93/159 | 3608874924 | Shim 0,05 |
| 93/159 | 3608874923 | Shim 0,1 |
| 93/159 | 3608874924 | Shim 0,05 |
| 93/159 | 3608874923 | Shim 0,1 |
| 93/159 | 3608874924 | Shim 0,05 |
| 93/160 | 3600320016 | Guide Sleeve |
| 93/160 | 3600320016 | Guide Sleeve |
| 93/160 | 3600320016 | Guide Sleeve |
| 93/161 | 3606333078 | Crown Gear |
| 93/161 | 3606333078 | Crown Gear |
| 93/161 | 3606333078 | Crown Gear |
| 93/162 | 1604611004 | Compression Spring |
| 93/162 | 1604611004 | Compression Spring |
| 93/162 | 1604611004 | Compression Spring |
| 93/163 | 1603124060 | Pressure Spindle |
| 93/163 | 1603124060 | Pressure Spindle |
| 93/163 | 1603124060 | Pressure Spindle |
| 93/164 | 3600118006 | Spring retaining ring |
| 93/164 | 3600118006 | Spring retaining ring |
| 93/164 | 3600118006 | Spring retaining ring |
| 93/29 | 3606337219 | Planetary-Gear Carrier |
| 93/29 | 3606337219 | Planetary-Gear Carrier |
| 93/29 | 3606337219 | Planetary-Gear Carrier |
| 93/32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 93/32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 93/32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 93/35 | 2917530083 | Straight Pin DIN 6325-3M6X24 |
| 93/35 | 2917530083 | Straight Pin DIN 6325-3M6X24 |
| 93/35 | 2917530083 | Straight Pin DIN 6325-3M6X24 |
| 93/36 | 3600905023 | Groove ball bearing |
| 93/36 | 3600905023 | Groove ball bearing |
| 93/36 | 3600905023 | Groove ball bearing |
| 93/39 | 3606316099 | Cylindrical Gear Z=16 |
| 93/39 | 3606316099 | Cylindrical Gear Z=16 |
| 93/39 | 3606316099 | Cylindrical Gear Z=16 |
| 93/800 | 3609202B05 | Bevel gear |
| 93/800 | 3609202B05 | Bevel gear |
| 93/800 | 3609202B05 | Bevel gear |
Selected parts0
