Bosch ANGLE EXACT ION 23-380

Bosch ANGLE EXACT ION 23-380 pn-accu-screwdriver: exploded parts diagram, 2 sheets, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT ION 23-380: 40 positions on 2 sheets

Bosch ANGLE EXACT ION 23-380 parts list (2 sheets)

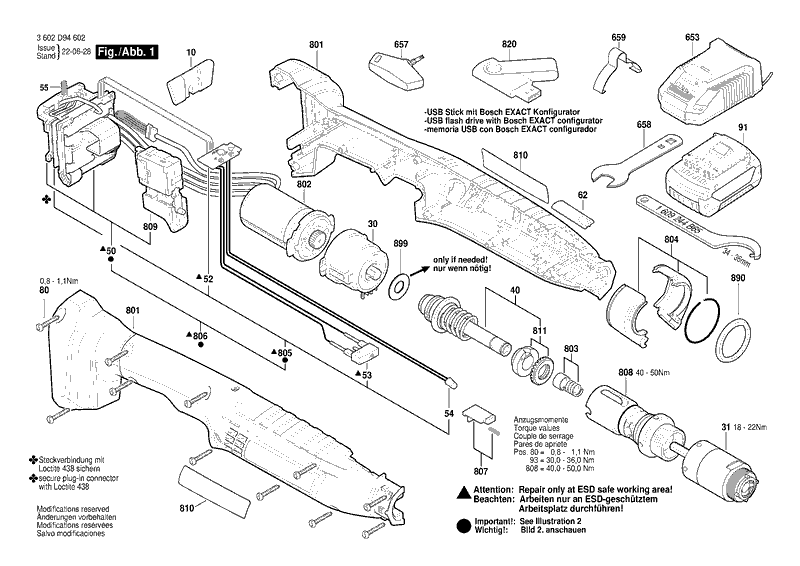

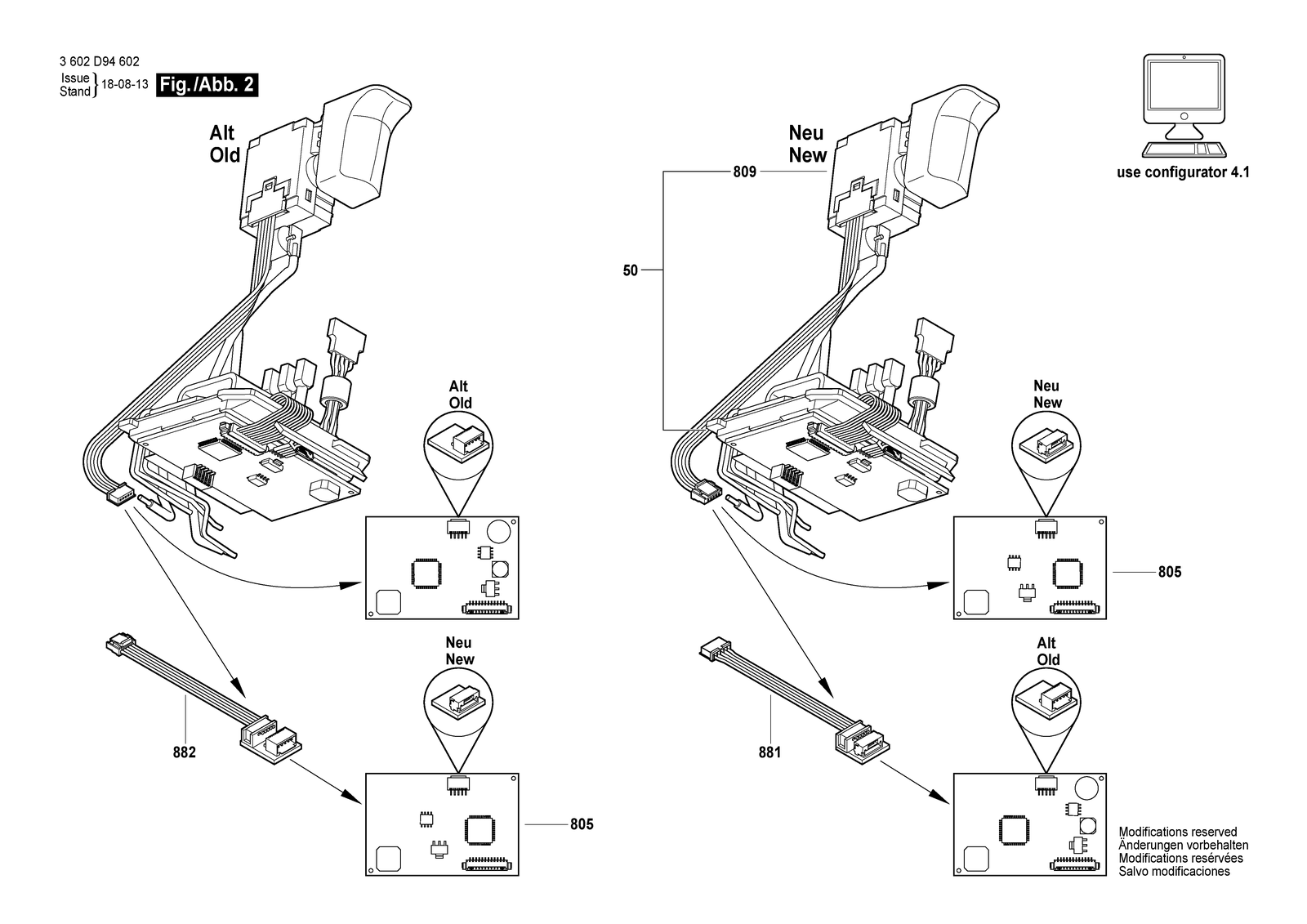

Bosch ANGLE EXACT ION 23-380 parts diagram, sheet 1Bosch ANGLE EXACT ION 23-380 parts diagram, sheet 2
No.Part numberPart name
103601099004Switch Slide
303607030471Planetary Gear Train
313607030483Planetary Gear Train
403607031568Assembly kit
5016072335JFElectronic Module
521607233516Indicator Plate
531607502627Microswitch
541607502626Light-Emitting-Diode
551609280477Compression Spring
623601923030Pusher
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6573607950027Screwdriver
6583601376007Single-Head Eng. Wrench
6593601923017Suspension Loop
802603490018Torx Oval-Head Screw 3X18
8013607031756Housing Assembly
8023607031801Motor assembly
8033607031758Sleeve assembly
8043607031759Led-Holder
8053607031910Electronics Module
8063607031911Drive electronics
8073607031762Switching Element
8083607031768Angle Flange
8093607031884Switch
81016070312CASet Of Plates
8111600A007U6Setting Ring
8203607031931Usb stick
8811607000CM1Adapter Line
8821607000CM0Adapter Line
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8991610101621Shim Thick 0,1 MM
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
