Bosch ANGLE EXACT ION 15-500

Bosch ANGLE EXACT ION 15-500 pn-accu-screwdriver: exploded parts diagram, 2 sheets, 266 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT ION 15-500: 266 positions on 2 sheets

Bosch ANGLE EXACT ION 15-500 parts list (2 sheets)

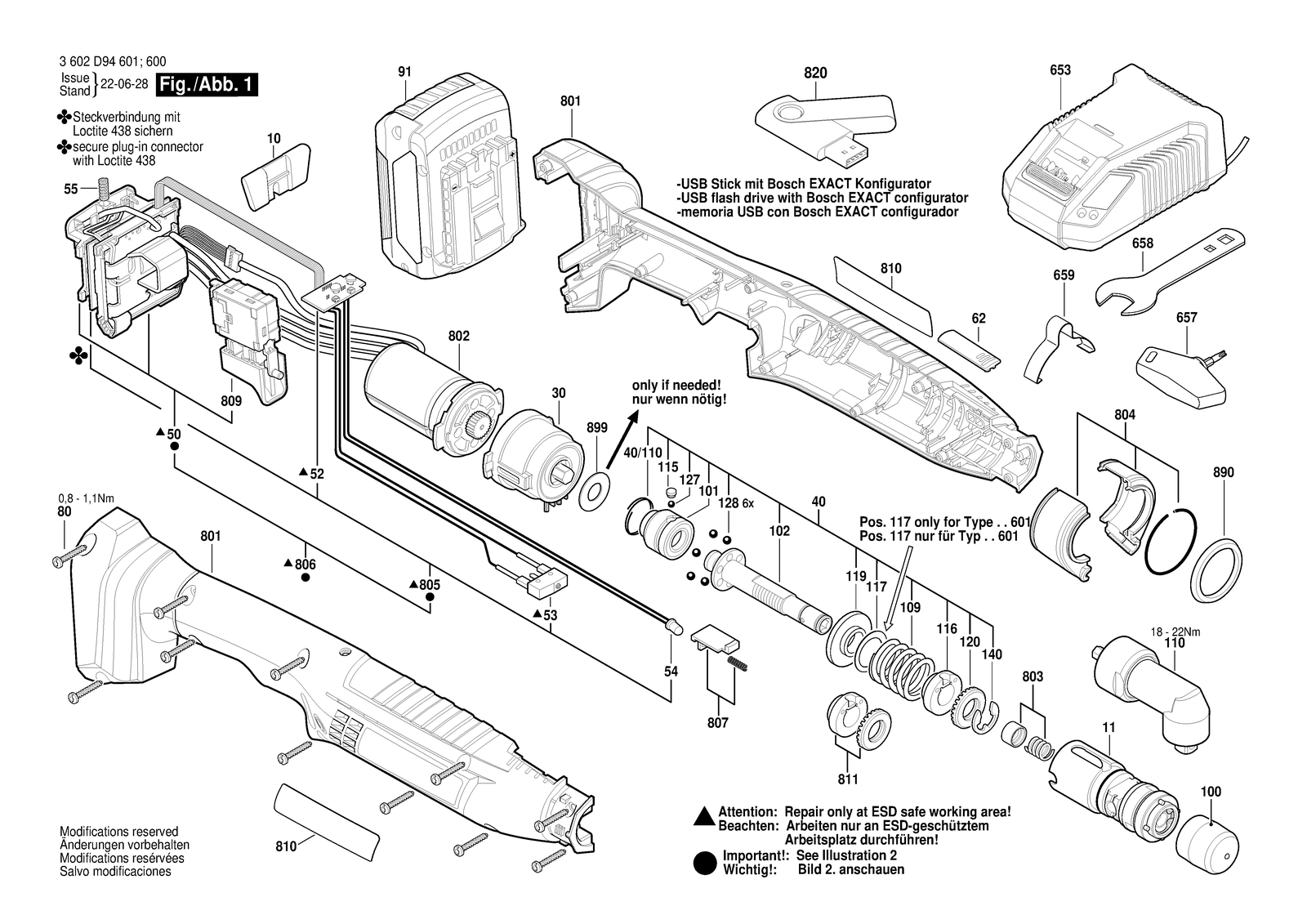

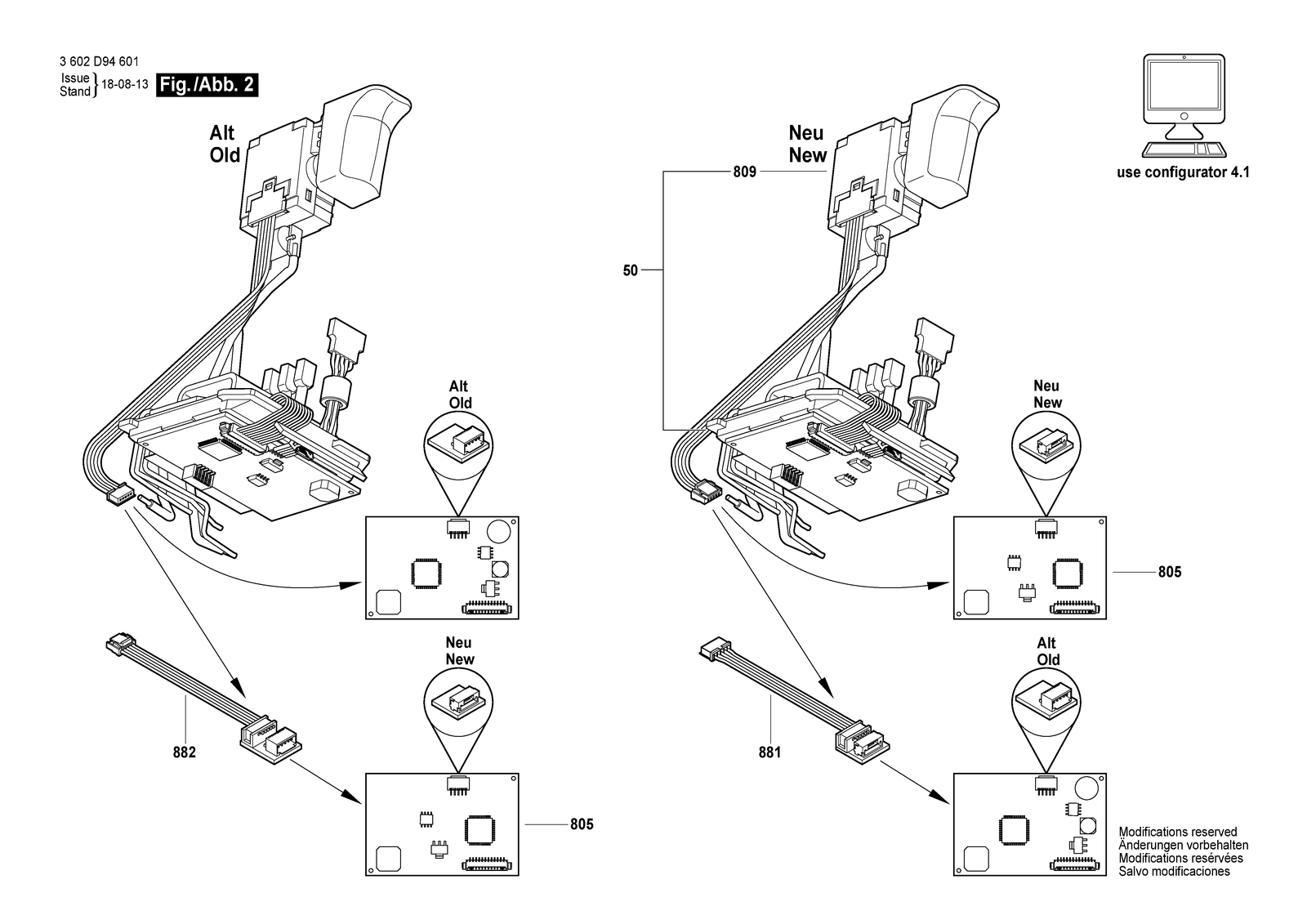

Bosch ANGLE EXACT ION 15-500 parts diagram, sheet 1Bosch ANGLE EXACT ION 15-500 parts diagram, sheet 2
No.Part numberPart name
103601099004Switch Slide
103601099004Switch Slide
103601099004Switch Slide
103601099004Switch Slide
103601099004Switch Slide
1003608872557Protective Cap Long 25,4X25,4 MM
1003608872557Protective Cap Long 25,4X25,4 MM
1003608872557Protective Cap Long 25,4X25,4 MM
1003608872557Protective Cap Long 25,4X25,4 MM
1003608872557Protective Cap Long 25,4X25,4 MM
1013606445043Clutch Element
1013606445043Clutch Element
1013606445043Clutch Element
1013606445043Clutch Element
1013606445043Clutch Element
1023603124023Output Shaft
1023603124023Output Shaft
1023603124023Output Shaft
1023603124023Output Shaft
1023603124023Output Shaft
1093604619003Compression Spring
1093604619020Compression Spring Blue
1093604619020Compression Spring Blue
1093604619020Compression Spring Blue
1093604619020Compression Spring Blue
113609202B07Angle Flange
113609202B07Angle Flange
113609202B07Angle Flange
113609202B07Angle Flange
113609202B07Angle Flange
1103607020165Angle Screwdriver Head 3/8"
1103607020165Angle Screwdriver Head 3/8"
1103607020165Angle Screwdriver Head 3/8"
1103607020165Angle Screwdriver Head 3/8"
1153601023011Sealing plate
1153601023011Sealing plate
1153601023011Sealing plate
1153601023011Sealing plate
1153601023011Sealing plate
1163600134014Setting Ring
1163600134014Setting Ring
1163600134014Setting Ring
1163600134014Setting Ring
1163600134014Setting Ring
1171600101023Plain Washer Thick 0,5 MM
1171600101023Plain Washer Thick 0,5 MM
1171600101023Plain Washer Thick 0,5 MM
1171600101023Plain Washer Thick 0,5 MM
1193600190036Support Disc
1193600190036Support Disc
1193600190036Support Disc
1193600190036Support Disc
1193600190036Support Disc
1203603344047Catch Disk
1203603344047Catch Disk
1203603344047Catch Disk
1203603344047Catch Disk
1203603344047Catch Disk
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1281903230008Ball 4,5 MM III DIN 5401-ST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
1402916080012Locking washer DIN 6799-9-FST
303607030472Planetary Gear Train
303607030492Planetary Gear Train
303607030492Planetary Gear Train
303607030472Planetary Gear Train
303607030492Planetary Gear Train
303607030492Planetary Gear Train
403607031567Assembly kit
403607031567Assembly kit
403607031576Assembly kit
403607031567Assembly kit
403607031568Assembly kit
403607031576Assembly kit
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1103600224053Retaining ring
5016072335JFElectronic Module
5016072335JFElectronic Module
5016072335JFElectronic Module
5016072335JFElectronic Module
5016072335JFElectronic Module
521607233516Indicator Plate
521607233516Indicator Plate
521607233516Indicator Plate
521607233516Indicator Plate
521607233516Indicator Plate
531607502627Microswitch
531607502627Microswitch
531607502627Microswitch
531607502627Microswitch
531607502627Microswitch
541607502626Light-Emitting-Diode
541607502626Light-Emitting-Diode
541607502626Light-Emitting-Diode
541607502626Light-Emitting-Diode
541607502626Light-Emitting-Diode
551609280477Compression Spring
551609280477Compression Spring
551609280477Compression Spring
551609280477Compression Spring
551609280477Compression Spring
623601923030Pusher
623601923030Pusher
623601923030Pusher
623601923030Pusher
623601923030Pusher
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225923Charger GB 230/10,8-18V, 30 42 S
6573607950027Screwdriver
6573607950027Screwdriver
6573607950027Screwdriver
6573607950027Screwdriver
6573607950027Screwdriver
6583601376007Single-Head Eng. Wrench
6583601376007Single-Head Eng. Wrench
6583601376007Single-Head Eng. Wrench
6583601376007Single-Head Eng. Wrench
6583601376007Single-Head Eng. Wrench
6593601923017Suspension Loop
6593601923017Suspension Loop
6593601923017Suspension Loop
6593601923017Suspension Loop
6593601923017Suspension Loop
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
8013607031756Housing Assembly
8013607031756Housing Assembly
8013607031756Housing Assembly
8013607031756Housing Assembly
8013607031756Housing Assembly
8023607031765Motor assembly
8023607031827Motor assembly
8023607031827Motor assembly
8023607031765Motor assembly
8023607031827Motor assembly
8023607031827Motor assembly
8033607031758Sleeve assembly
8033607031758Sleeve assembly
8033607031758Sleeve assembly
8033607031758Sleeve assembly
8033607031758Sleeve assembly
8043607031759Led-Holder
8043607031759Led-Holder
8043607031759Led-Holder
8043607031759Led-Holder
8043607031759Led-Holder
8053607031906Electronics Module
8053607031908Electronics Module
8053607031922Electronics Module
8053607031906Electronics Module
8053607031908Electronics Module
8053607031922Electronics Module
8063607031907Drive electronics
8063607031909Drive electronics
8063607031923Drive electronics
8063607031907Drive electronics
8063607031909Drive electronics
8063607031923Drive electronics
8073607031762Switching Element
8073607031762Switching Element
8073607031762Switching Element
8073607031762Switching Element
8073607031762Switching Element
8093607031884Switch
8093607031884Switch
8093607031884Switch
8093607031884Switch
81016070312C9Set Of Plates
81016070312C0Set Of Plates
81016070312D9Set Of Plates
8103607031846Set Of Plates
8103607031847Set Of Plates
8103607031877Set Of Plates
8111600A007U6Setting Ring
8111600A007U6Setting Ring
8111600A007U6Setting Ring
8111600A007U6Setting Ring
8111600A007U6Setting Ring
8203607031931Usb stick
8203607031931Usb stick
8203607031931Usb stick
8203607031931Usb stick
8203607031931Usb stick
8811607000CM1Adapter Line
8811607000CM1Adapter Line
8811607000CM1Adapter Line
8811607000CM1Adapter Line
8821607000CM0Adapter Line
8821607000CM0Adapter Line
8821607000CM0Adapter Line
8821607000CM0Adapter Line
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8991610101621Shim Thick 0,1 MM
8991610101621Shim Thick 0,1 MM
8991610101621Shim Thick 0,1 MM
8991610101621Shim Thick 0,1 MM
8991610101621Shim Thick 0,1 MM
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
911607A350M0Battery Pack GBA 18V 4.0AH
911607A350MABattery Pack GBA 18V 2.0AH
