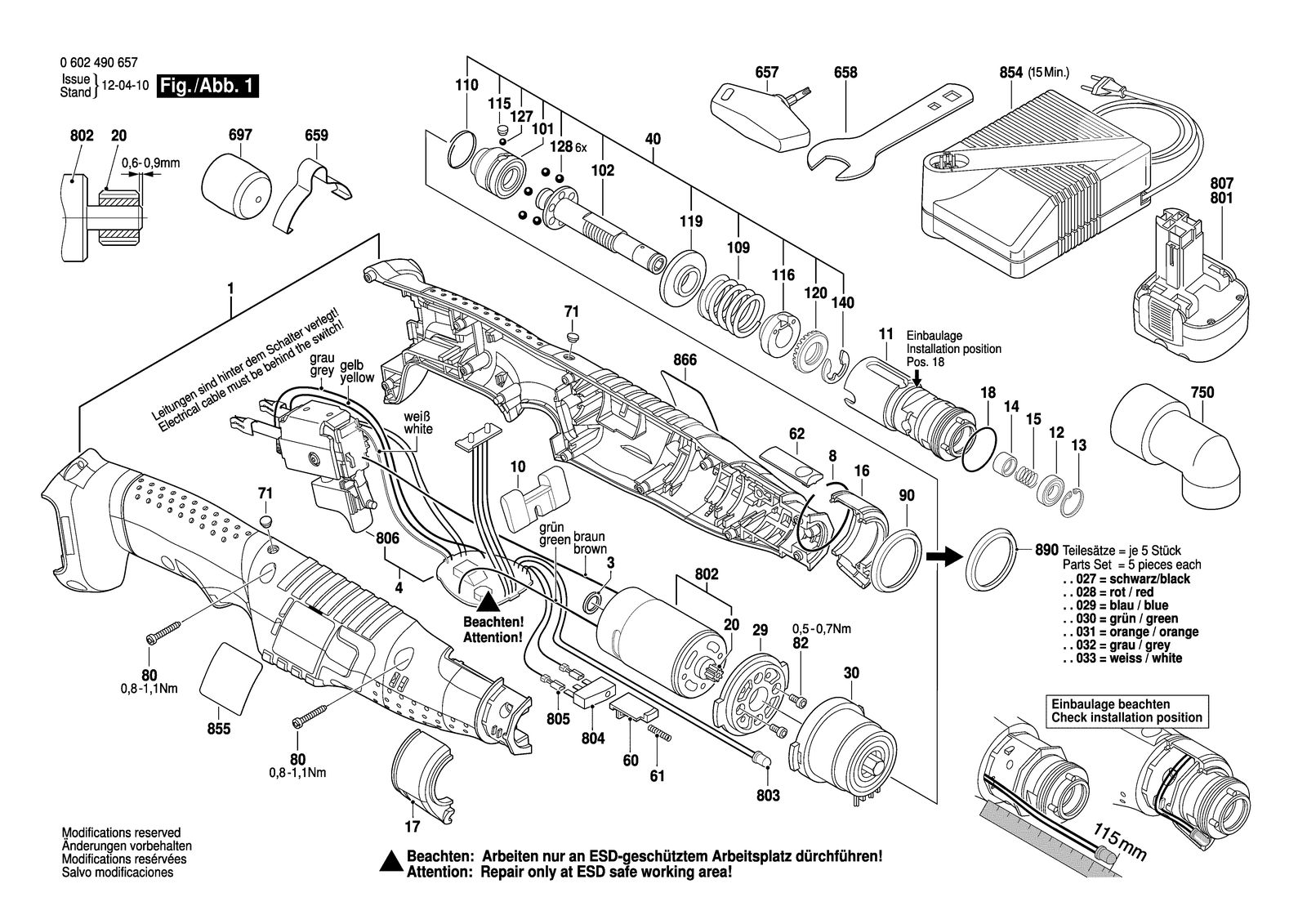

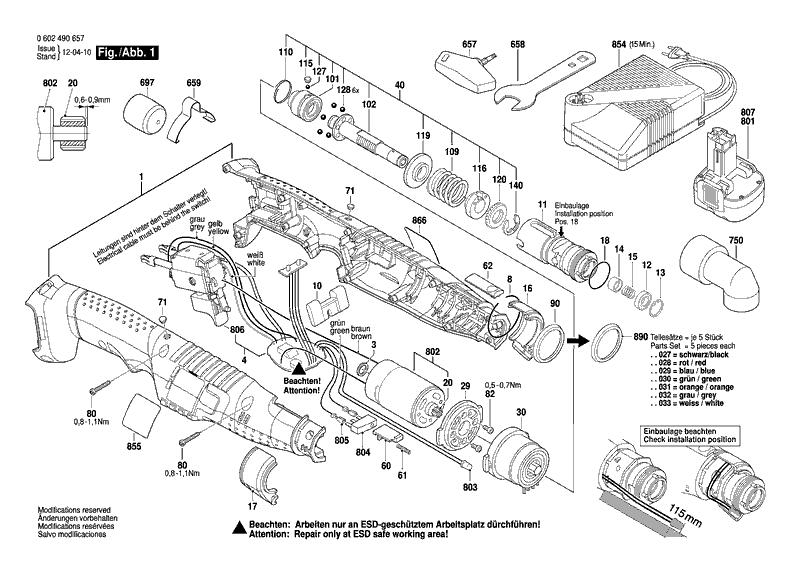

Bosch ANGLE EXACT 7 cordless screw driver: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT 7: 63 positions on 1 sheet
Bosch ANGLE EXACT 7 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605105017 | Housing Section Blue |
| 10 | 3601099003 | Switch Slide |
| 101 | 3606445043 | Clutch Element |
| 102 | 3603124023 | Output Shaft |
| 109 | 3604619003 | Compression Spring |
| 11 | 3605700165 | Angle Flange |
| 110 | 3600224053 | Retaining ring |
| 115 | 3601023011 | Sealing plate |
| 116 | 3600134014 | Setting Ring |
| 119 | 3600190036 | Support Disc |
| 12 | 1280905004 | Groove ball bearing |
| 120 | 3603344047 | Catch Disk |
| 127 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 128 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 13 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 14 | 3600423004 | Sleeve |
| 140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 15 | 3604611037 | Compression Spring |
| 16 | 3605105019 | Led-Holder |
| 17 | 3605105020 | Led-Holder |
| 18 | 3600210012 | O-Ring 20,0X1,0 MM |
| 20 | 3606328018 | Pinion |
| 29 | 2605719011 | Intermediate Flange |
| 3 | 3600200043 | Locating Ring |
| 30 | 3607030490 | Planetary Gear Train |
| 4 | 3607200108 | Electronic Assembly |
| 40 | 3607031568 | Assembly kit |
| 60 | 3601923022 | Switching Element |
| 61 | 3604611022 | Compression Spring |
| 62 | 3601923029 | Pusher |
| 657 | 3607950027 | Screwdriver |
| 658 | 3601376007 | Single-Head Eng. Wrench |
| 659 | 3601923024 | Suspension Loop |
| 697 | 3608872557 | Protective Cap Long 25,4X25,4 MM |
| 71 | 3604460132 | Light Conductor |
| 750 | 3605500171 | Protective Cap |
| 8 | 1614601016 | Retaining ring Ø36,6XØ1,5 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 801 | 2607335681 | Battery Pack 9,6V,2,6AH,NIMH |
| 802 | 3607031555 | DC motor 9,6V |
| 803 | 3609202979 | Light-Emitting-Diode |
| 804 | 3609202762 | Microswitch |
| 805 | 3609202766 | Plug Set |
| 806 | 3607200083 | Switch |
| 807 | 2607335681 | Battery Pack 9,6V,2,6AH,NIMH |
| 82 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 854 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 854 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 854 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 854 | 2607225031 | Fast Charger AUS 240/7,2-24V, 30 Min. |
| 854 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 854 | 2607225035 | Fast Charger SAM 115/7,2-24V, 15 Min. |
| 854 | 2607225039 | Fast Charger ROK 220/7,2-24V, 30 Min. |
| 855 | 16070312AG | Nameplate |
| 866 | 3601119311 | Manufacturer's nameplate |
| 890 | 3600106027 | Parts Set 5 Pce., Black |
| 890 | 3600106028 | Parts Set 5 Pce., Red |
| 890 | 3600106029 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106030 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106031 | Parts Set 5 Pce., Orange |
| 890 | 3600106032 | Parts Set 5 Pce,. Grey |
| 890 | 3600106033 | Parts Set 5 Pce,. White |
| 90 | 3600106026 | Ring Cream White |
