Bosch ANGLE EXACT 60-170

Bosch ANGLE EXACT 60-170 cordless screw driver: exploded parts diagram, 1 sheet, 180 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT 60-170: 180 positions on 1 sheet

Bosch ANGLE EXACT 60-170 parts list (1 sheet)

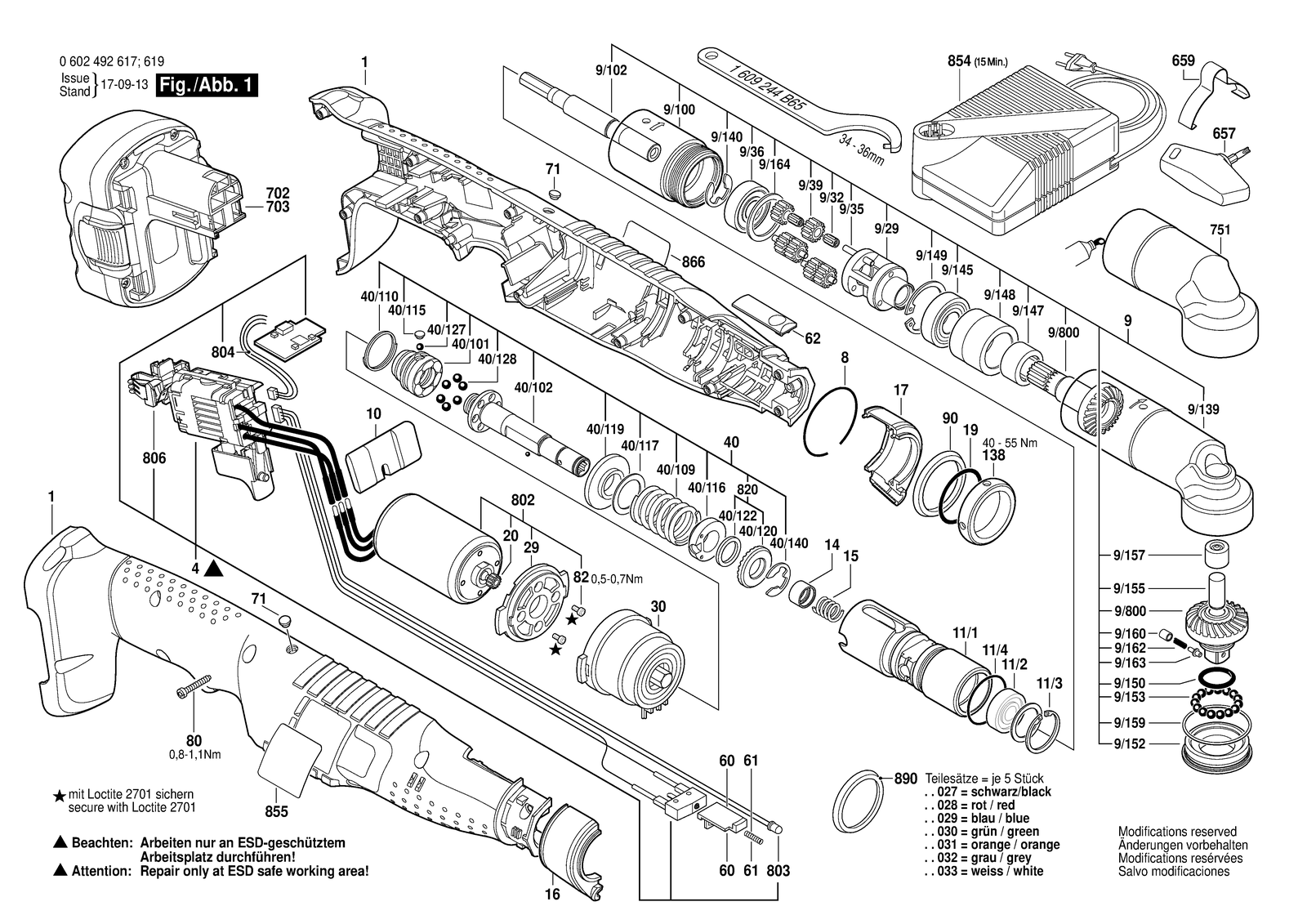

Bosch ANGLE EXACT 60-170 parts diagram, sheet 1
No.Part numberPart name
13609202A34Housing Section Blue
13609202A34Housing Section Blue
103601099003Switch Slide
103601099003Switch Slide
11/13609202A33Angle Flange
11/13609202A33Angle Flange
11/21900905029Ball Bearing 8X22X7
11/21900905029Ball Bearing 8X22X7
11/32600119000Spring retaining ring
11/32600119000Spring retaining ring
11/43600210012O-Ring 20,0X1,0 MM
11/43600210012O-Ring 20,0X1,0 MM
1383603344057Threaded Ring
1383603344057Threaded Ring
143600423004Sleeve
143600423004Sleeve
153604611037Compression Spring
153604611037Compression Spring
163605105019Led-Holder
163605105019Led-Holder
173605105020Led-Holder
173605105020Led-Holder
191900210125O-Ring 25X2,5 MM
191900210125O-Ring 25X2,5 MM
203606309060Pinion
202606316164Pinion Z=9
292605719011Intermediate Flange
292605719011Intermediate Flange
303607030469Planetary Gear Train
303607030488Planetary Gear Train
43607200114Electronic Assembly
43607200114Electronic Assembly
403607031567Assembly kit
403607031567Assembly kit
40/1013606445043Clutch Element
40/1013606445043Clutch Element
40/1023603124023Output Shaft
40/1023603124023Output Shaft
40/1093604619020Compression Spring Blue
40/1093604619020Compression Spring Blue
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1153601023011Sealing plate
40/1153601023011Sealing plate
40/1163600134016Setting Ring
40/1163600134016Setting Ring
40/1171600101023Plain Washer Thick 0,5 MM
40/1171600101023Plain Washer Thick 0,5 MM
40/1193600190036Support Disc
40/1193600190036Support Disc
40/1203603344046Catch Disk
40/1203603344046Catch Disk
40/1223600101052Shim washer
40/1223600101052Shim washer
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1402916080012Locking washer DIN 6799-9-FST
40/1402916080012Locking washer DIN 6799-9-FST
603601923022Switching Element
603601923022Switching Element
613604611022Compression Spring
613604611022Compression Spring
623601923029Pusher
623601923029Pusher
6573607950027Screwdriver
6573607950027Screwdriver
6593601923024Suspension Loop
6593601923024Suspension Loop
7022607335881Slide-In Accu Package
7022607335881Slide-In Accu Package
7032607335655Slide-In Accu Package 14,4V,2,4AH
7032607335655Slide-In Accu Package 14,4V,2,4AH
713604460132Light Conductor
713604460132Light Conductor
7513609202A29Protective Cap
7513609202A29Protective Cap
81614601016Retaining ring Ø36,6XØ1,5
81614601016Retaining ring Ø36,6XØ1,5
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
8023607031652DC motor 14,4V
8023607031655DC motor
8033609202B02Wiring Harness
8033609202B02Wiring Harness
8043609202B03Wiring Harness
8043609202B03Wiring Harness
8061609280416Contact retainer
8061609280416Contact retainer
822603414048Torx SH cap screw M3X5-8.8-Z
822603414048Torx SH cap screw M3X5-8.8-Z
8203603344047Catch Disk
8203603344047Catch Disk
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
85516070312BWNameplate
8553601119492Nameplate
8663601110533Manufacturer's nameplate
8663601110534Manufacturer's nameplate
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
93607020315Angle head
93607020315Angle head
9/1003609202A32Housing
9/1003609202A32Housing
9/1023609202A98Drive Shaft
9/1023609202A98Drive Shaft
9/1393605106093Spindle Housing
9/1393605106093Spindle Housing
9/1402916080012Locking washer DIN 6799-9-FST
9/1402916080012Locking washer DIN 6799-9-FST
9/1453600905015Groove ball bearing
9/1453600905015Groove ball bearing
9/1473600917020Needle bearing
9/1473600917020Needle bearing
9/1483608874921Spacer
9/1483608874921Spacer
9/1492916660011Spring retaining ring DIN 472-28X1,2 MM
9/1492916660011Spring retaining ring DIN 472-28X1,2 MM
9/1501610210116O-Ring 14,0X2,0 MM
9/1501610210116O-Ring 14,0X2,0 MM
9/1523605700190Bearing Flange
9/1523605700190Bearing Flange
9/1531903230008Ball 4,5 MM III DIN 5401-ST
9/1531903230008Ball 4,5 MM III DIN 5401-ST
9/1553603100000Straight Pin
9/1553603100000Straight Pin
9/1573608874669Needle bearing INA 8,00X12,00X10,00
9/1573608874669Needle bearing INA 8,00X12,00X10,00
9/1593608874923Shim 0,1
9/1593608874924Shim 0,05
9/1593608874923Shim 0,1
9/1593608874924Shim 0,05
9/1603600320016Guide Sleeve
9/1603600320016Guide Sleeve
9/1621604611004Compression Spring
9/1621604611004Compression Spring
9/1631603124060Pressure Spindle
9/1631603124060Pressure Spindle
9/1643600118006Spring retaining ring
9/1643600118006Spring retaining ring
9/293606337221Planetary-Gear Carrier
9/293606337221Planetary-Gear Carrier
9/323600913000Needle-Roller Assembly Ina K3X5X7
9/323600913000Needle-Roller Assembly Ina K3X5X7
9/352917530083Straight Pin DIN 6325-3M6X24
9/352917530083Straight Pin DIN 6325-3M6X24
9/363600905023Groove ball bearing
9/363600905023Groove ball bearing
9/393606316100Cylindrical Gear
9/393606316100Cylindrical Gear
9/8003609202B05Bevel gear
9/8003609202B05Bevel gear
903600106022Ring Black
903600106022Ring Black
