Bosch ANGLE EXACT 25-200

Bosch ANGLE EXACT 25-200 cordless screw driver: exploded parts diagram, 1 sheet, 124 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ANGLE EXACT 25-200: 124 positions on 1 sheet

Bosch ANGLE EXACT 25-200 parts list (1 sheet)

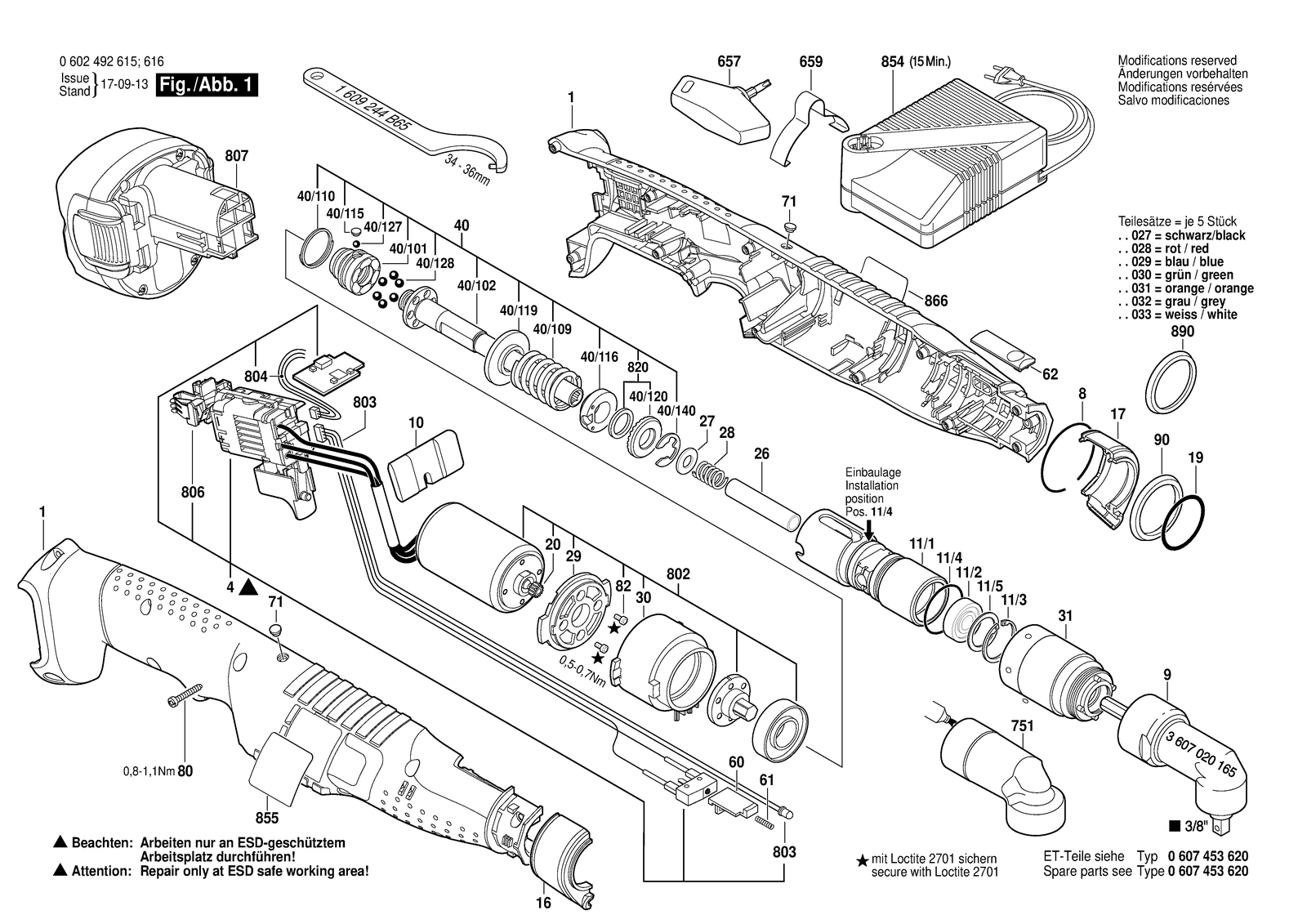

Bosch ANGLE EXACT 25-200 parts diagram, sheet 1
No.Part numberPart name
13609202A45Housing Section Blue
13609202A45Housing Section Blue
103601099003Switch Slide
103601099003Switch Slide
11/13609202A33Angle Flange
11/13609202A33Angle Flange
11/23600905026Groove ball bearing
11/23600905026Groove ball bearing
11/32600119000Spring retaining ring
11/32600119000Spring retaining ring
11/43600210012O-Ring 20,0X1,0 MM
11/43600210012O-Ring 20,0X1,0 MM
11/51610101015Shim ring Thick 1,0 MM
11/51610101015Shim ring Thick 1,0 MM
163605105019Led-Holder
163605105019Led-Holder
173605105020Led-Holder
173605105020Led-Holder
191900210125O-Ring 25X2,5 MM
191900210125O-Ring 25X2,5 MM
203606309061Pinion
203606309061Pinion
281604616017Compression Spring
281604616017Compression Spring
292605719011Intermediate Flange
292605719011Intermediate Flange
303607030472Planetary Gear Train
303607030472Planetary Gear Train
313607030458Planetary Gear Train
313607030458Planetary Gear Train
43607200120Electronic Assembly
43607200120Electronic Assembly
403607031643Assembly kit
403607031643Assembly kit
40/1013606445043Clutch Element
40/1013606445043Clutch Element
40/1023603124035Drive Shaft
40/1023603124035Drive Shaft
40/1093604619003Compression Spring
40/1093604619003Compression Spring
40/1103600224053Retaining ring
40/1103600224053Retaining ring
40/1153601023011Sealing plate
40/1153601023011Sealing plate
40/1163600134014Setting Ring
40/1163600134014Setting Ring
40/1193600190036Support Disc
40/1193600190036Support Disc
40/1203603344047Catch Disk
40/1203603344047Catch Disk
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1271903230006Ball DIN 5401-3,5 Mm-Iii-St
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1281903230008Ball 4,5 MM III DIN 5401-ST
40/1402916080012Locking washer DIN 6799-9-FST
40/1402916080012Locking washer DIN 6799-9-FST
603601923022Switching Element
603601923022Switching Element
613604611022Compression Spring
613604611022Compression Spring
623601923029Pusher
623601923029Pusher
6573607950027Screwdriver
6573607950027Screwdriver
6593601923024Suspension Loop
6593601923024Suspension Loop
713604460132Light Conductor
713604460132Light Conductor
7513609202A29Protective Cap
7513609202A29Protective Cap
81614601016Retaining ring Ø36,6XØ1,5
81614601016Retaining ring Ø36,6XØ1,5
802603490018Torx Oval-Head Screw 3X18
802603490018Torx Oval-Head Screw 3X18
8023607031633DC motor
8023607031633DC motor
8033609202B02Wiring Harness
8033609202B02Wiring Harness
8043609202B03Wiring Harness
8043609202B03Wiring Harness
8061609280416Contact retainer
8061609280416Contact retainer
8072607335681Battery Pack 9,6V,2,6AH,NIMH
8072607335681Battery Pack 9,6V,2,6AH,NIMH
822603414048Torx SH cap screw M3X5-8.8-Z
822603414048Torx SH cap screw M3X5-8.8-Z
8203603344047Catch Disk
8203603344047Catch Disk
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8542607224435Fast Charger J 100/7,2-24V, 1H
8542607225027Fast Charger EU 230/7,2-24V, 30 Min.
8542607225029Fast Charger GB 230/7,2-24V, 30 Min.
8542607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8542607225033Fast Charger USA 120/7,2-24V, 30 Min.
8542607225035Fast Charger SAM 115/7,2-24V, 15 Min.
8542607225039Fast Charger ROK 220/7,2-24V, 30 Min.
8553601110532Manufacturer's nameplate
8553601110532Manufacturer's nameplate
86616070312BVNameplate
86616070312BVNameplate
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
8903600106027Parts Set 5 Pce., Black
8903600106028Parts Set 5 Pce., Red
8903600106029Parts Set 5 Pce,. Light Blue
8903600106030Parts Set 5 Pce,. Light Green
8903600106031Parts Set 5 Pce., Orange
8903600106032Parts Set 5 Pce,. Grey
8903600106033Parts Set 5 Pce,. White
93607020165Angle Screwdriver Head 3/8"
93607020165Angle Screwdriver Head 3/8"
903600106025Ring Gray
903600106025Ring Gray
